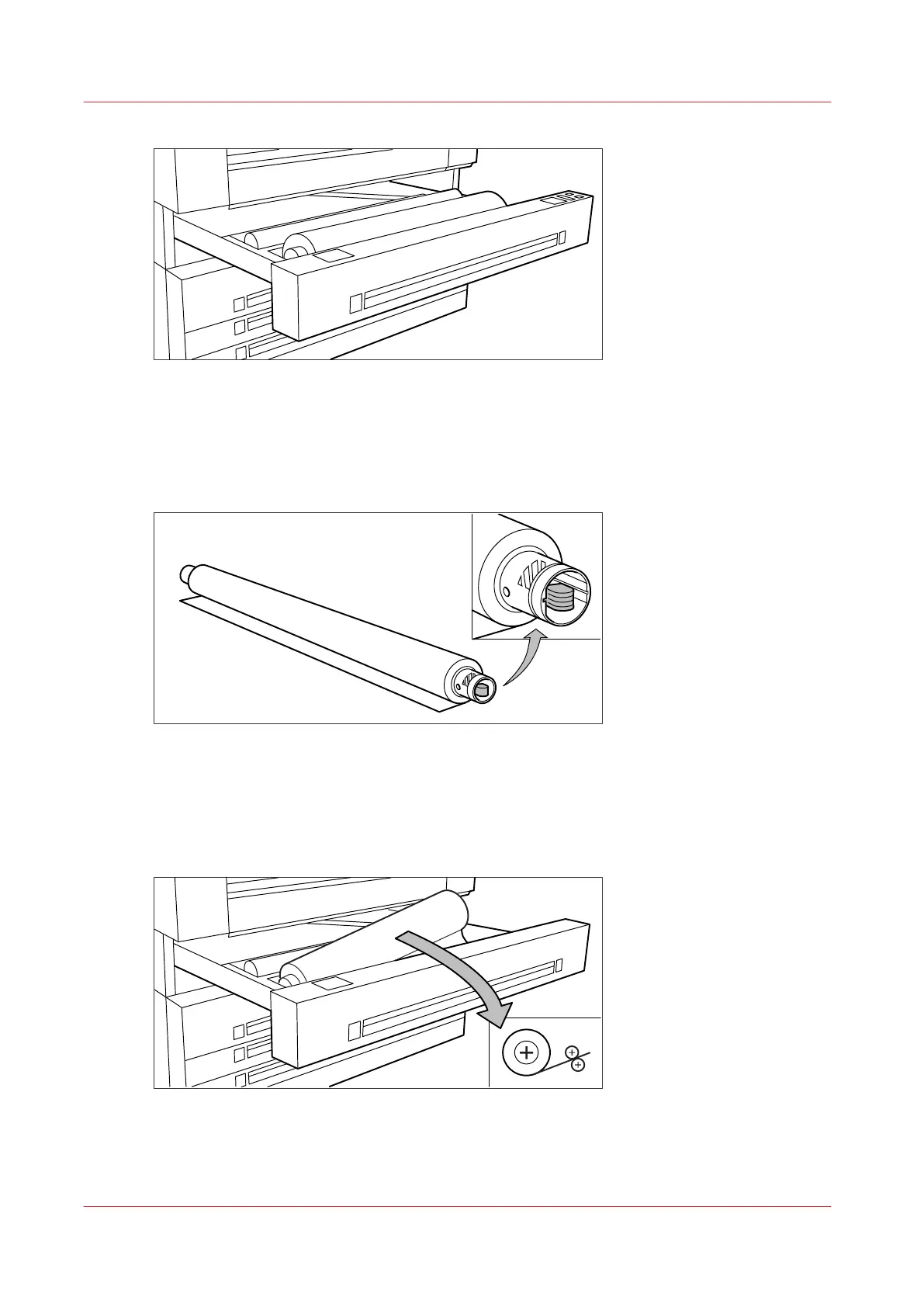

[119] Open the drawer
2.
If necessary, remove any scrap material from the paper roll drawer.
3.
Remove the roll holder from the paper roll drawer.
4.
Press the green knob inside the roll holder (on the right side) to release the locking mechanism
(see the illustration below) and remove the core from the holder.
[120] Press the knob
5.
Slide the roll holder in the new roll of material while pressing the green knob.
6.
Align the roll with the appropriate size indicator on the roll holder and release the locking
mechanism. This line has to be completely visible.
7.
Use both hands to place the holder in the roll drawer.
[121] Position the media
8.
Use both hands to slide the material under the metal paper guide until it makes contact, as shown
in the above illustration.
Load rolls of media
304
Chapter 8 - Maintain and troubleshoot the Océ PlotWave 750 system
