Panasonic FP7 Series Command Reference Manual

■
Usage example

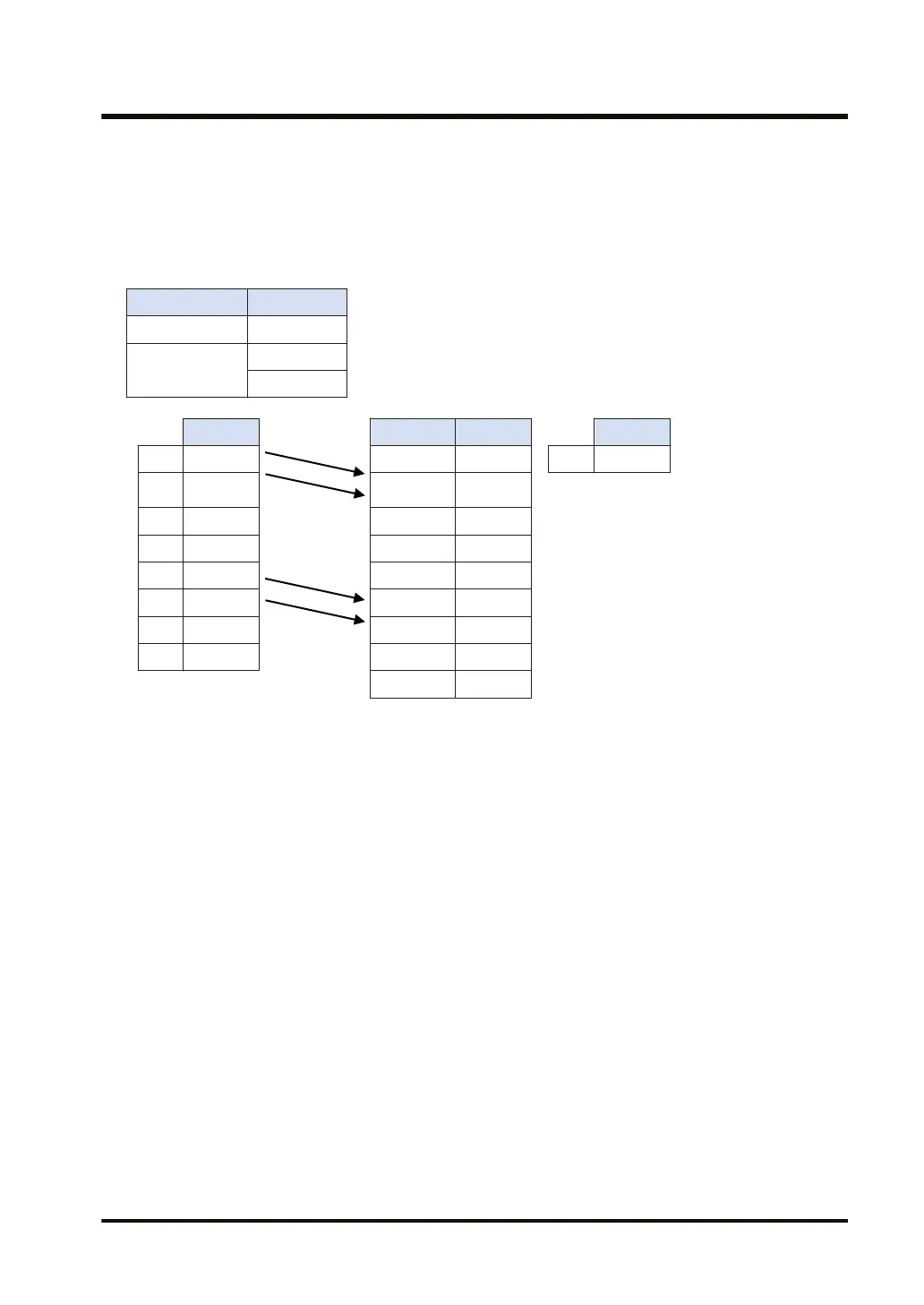

Example 1) When performing the output refresh for the send buffer of the I/O map
number 1 (Normal end)
[S1]... U0 [S2]... U1 [D]... DT10
● EtherNet/IP configuration setting
Setting item Settings
I/O map number 1
Device Allocation
LD10 to LD11
LD14 to LD16
Value Send buffer Value Value
LD10 2233h 0 DT10 0
LD11 4455h 1 2233h *
LD12 2 4455h *
LD13 3
LD14 AABBh 4
LD15 CCDDh 5 AABBh *
LD16 EEFFh 6 CCDDh *
LD17 7 EEFFh *
8
(Note 1) Send buffers to which devices are allocated
17.38 EIP_OT (EtherNet/IP Output Refresh)
WUME-FP7CPUPGR-12 17-193
