02A-3
LIFTING EQUIPMENT
Vehicle: Towing and lifting
02A

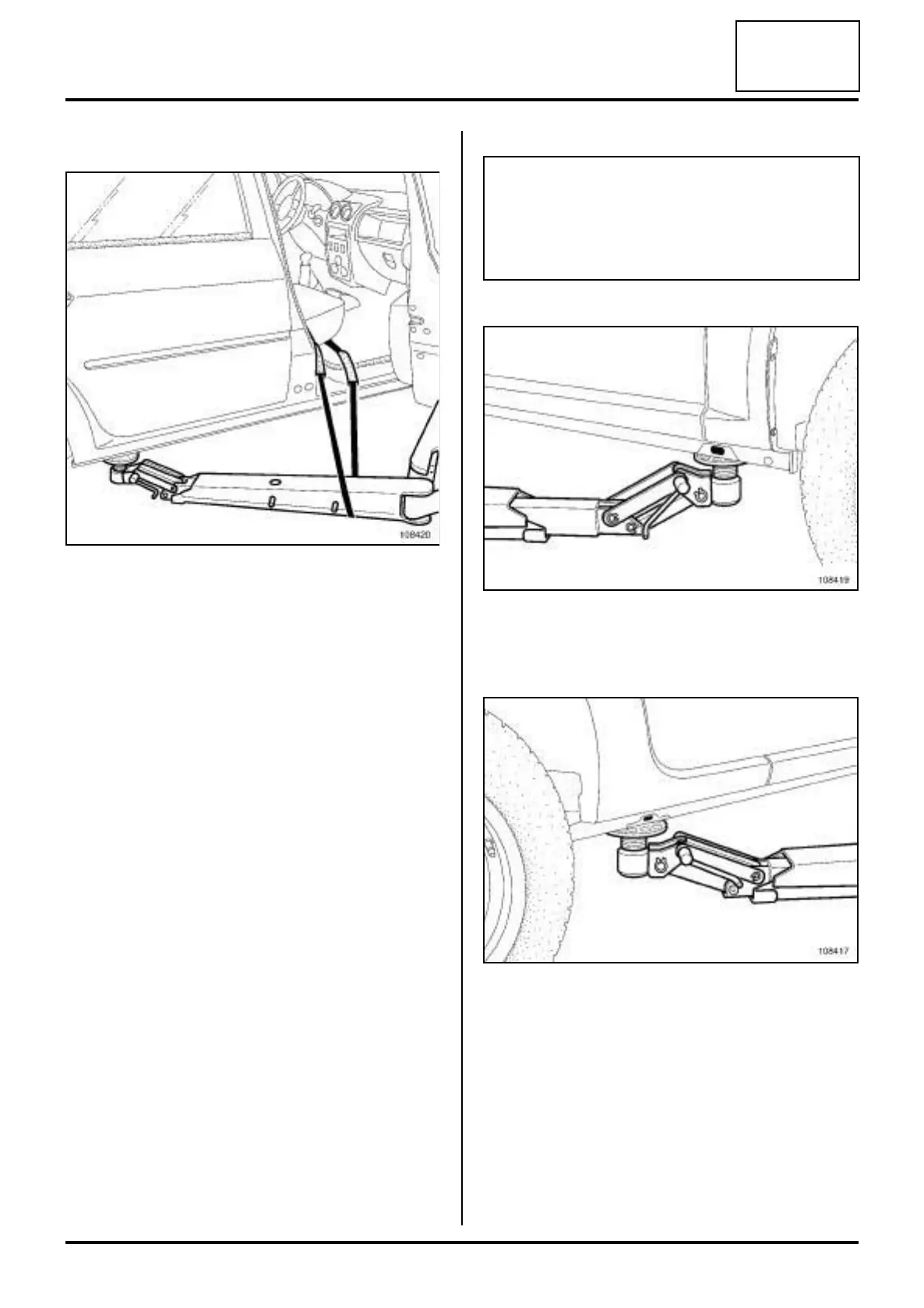

2 - Fitting the straps
For safety purposes, the straps must always be in per-
fect condition; replace them if they are damaged.
When fitting the straps, check that the seats and fragile
parts of the vehicle are correctly protected.
a - Tilting towards the front
Pass the strap under the rear right-hand arm of the lift.
Pass the strap through the inside of the vehicle.
Pass the strap under the rear left-hand arm of the lift.
Pass the belt through the inside of the vehicle again.
Tighten the strap.
b - Tilting towards the rear
Pass the strap under the front right-hand arm of the lift.
Pass the strap through the inside of the vehicle.
Pass the strap under the front left-hand arm of the lift.
Pass the belt through the inside of the vehicle again.
Tighten the strap.
3 - Permitted jacking points
To raise the vehicle, position the pads of the lift arms
as indicated below taking care not to damage the end
of the front wing or the underside of the sill panel.
At the front
Position the lift arms under the end of the sill panel
body flanges.
At the rear
Position the lift arms under the end of the sill panel
body flanges.
108420
IMPORTANT
Only the jacking points described in this section
allow the vehicle to be raised in complete safety.
Do not raise the vehicle using points other than
those described in this section.
108419
108417
