02A-2
LIFTING EQUIPMENT
Vehicle: Towing and lifting
02A

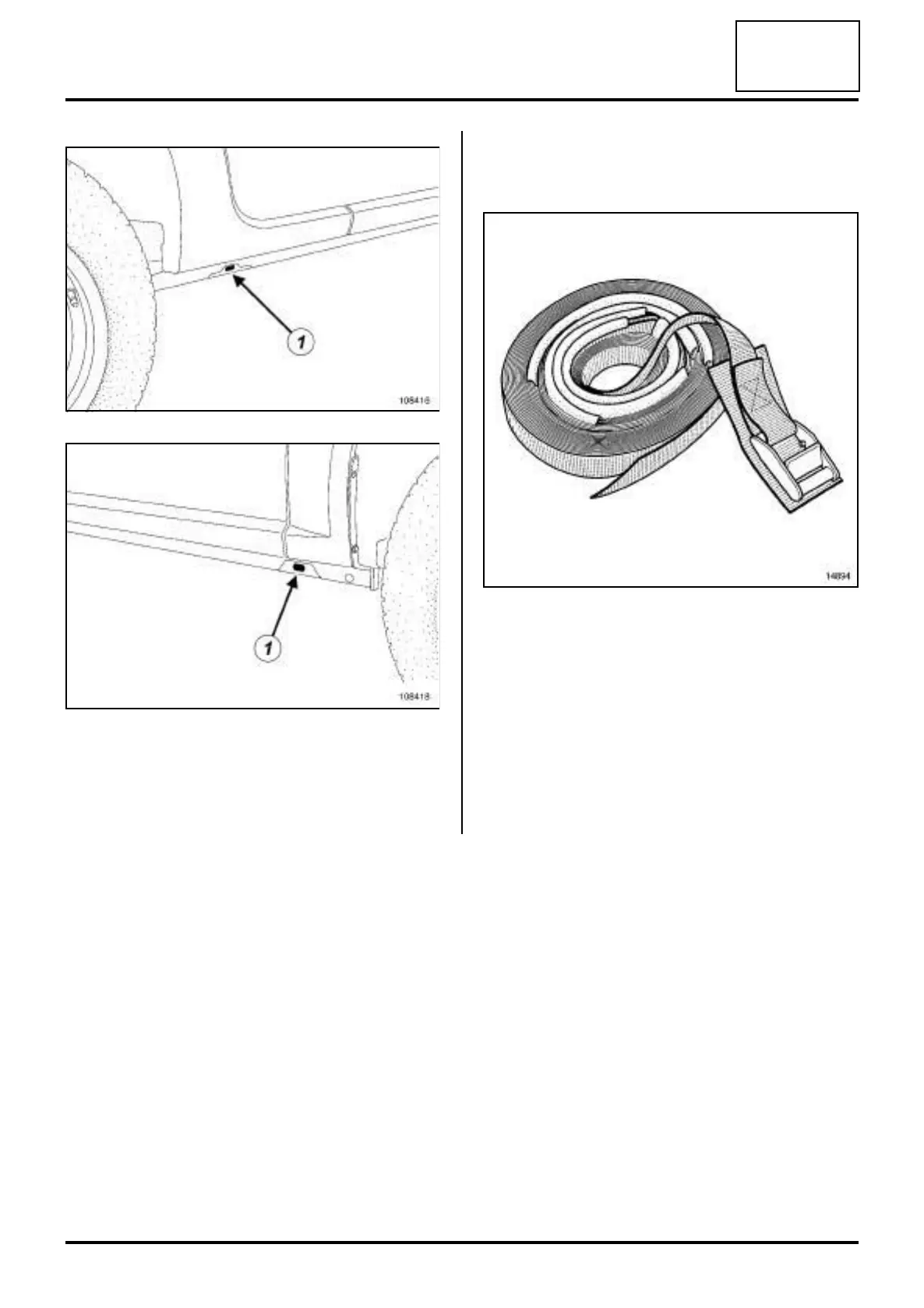

To raise a front or rear wheel, use (1) as the support
point.
To mount the vehicle on axle stands, the entire vehicle
must be lifted on one side and axle stands must be
placed under the jacking points for the tool kit jack (1) .
III - LIFTING ON A LIFT
1 - Safety advice reminder
If it is necessary to remove heavy components from the
vehicle, it is preferable to use a four-post lift.
After removing certain components (e.g. engine and
transmission assembly, rear axle, fuel tank, etc.), there
is a danger that the vehicle will tip on a two post lift.
When the vehicle is raised on an underbody two post
lift, fit safety strap(s), part no. 77 11 172 554 available
from the Parts Department.
108416
108418
14894
