02A-1
LIFTING EQUIPMENT
Vehicle: Towing and lifting
02A
I - TOWING

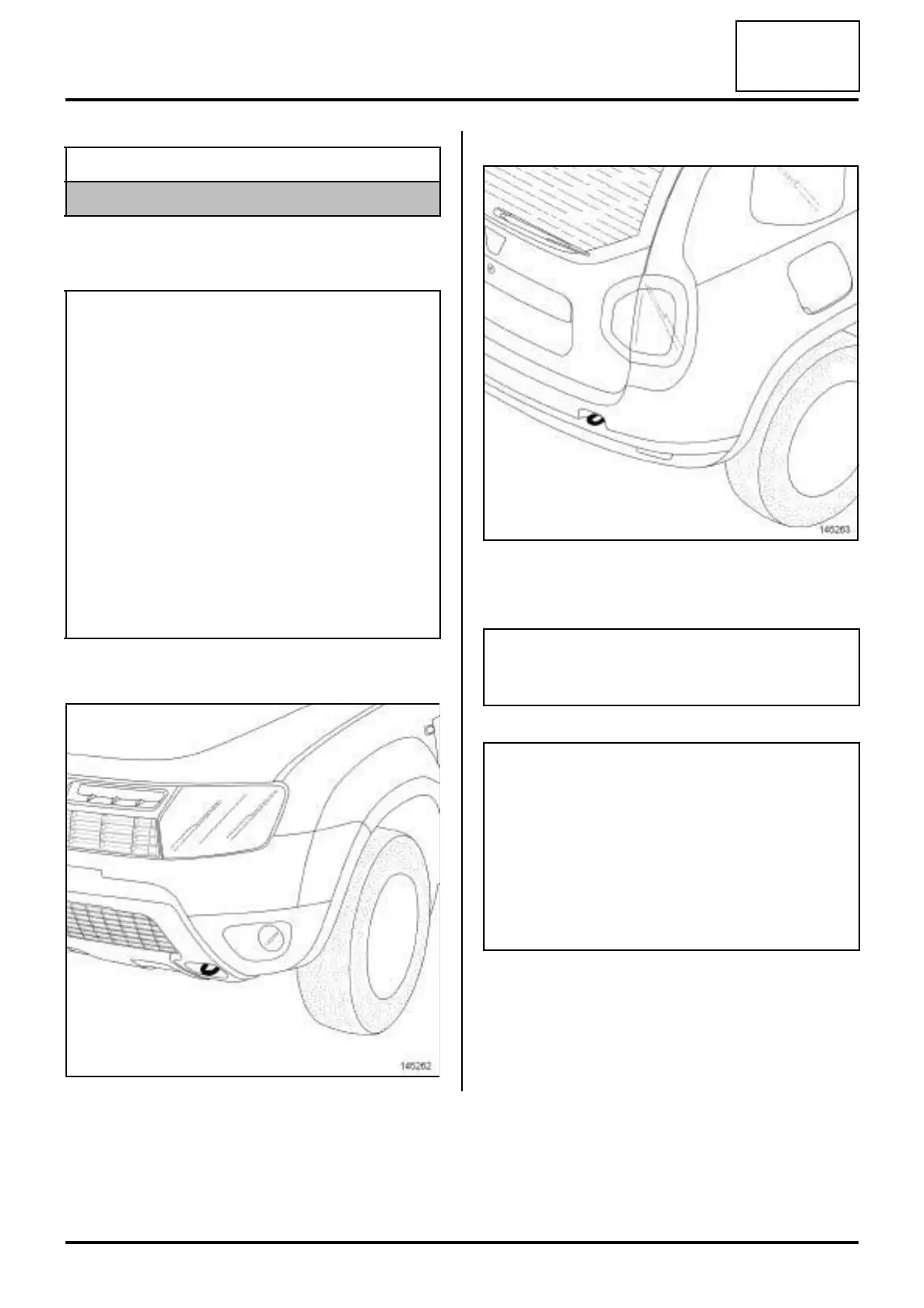

1 - Position of front attachment point
2 - Position of rear attachment point
II - LIFTING BY TROLLEY JACK
Equipment required
safety strap(s)
WARNING
See the current towing regulations in each country.
Never use the driveshafts, axle assembly compo-
nents or suspension components as attachment
points.
Tighten and lock the towing ring before use.
Always pull in the direction of the rod's length in
order to avoid breaking it.
Vehicles fitted with automatic transmission:
- It is preferable to transport the vehicle on a flatbed
or to tow it by lifting the front wheels; as an excep-
tion, the vehicle can be towed with the wheels on
the ground, but at a speed of less than 12 mph (20
km/h) over a maximum distance of 18 miles (30
km) (with the gear lever in neutral).
145262
145263
IMPORTANT
Appropriate axle stands must be used if a trolley
jack is used.
WARNING
The subframe of this vehicle is protected by prod-
ucts providing a 6-year anti-corrosion warranty.
Never use equipment not fitted with rubber pads, to
avoid direct metal to metal contact which could
damage the original protection.
The vehicle must not be raised by support points
under the front suspension arms or under the rear
axle.
