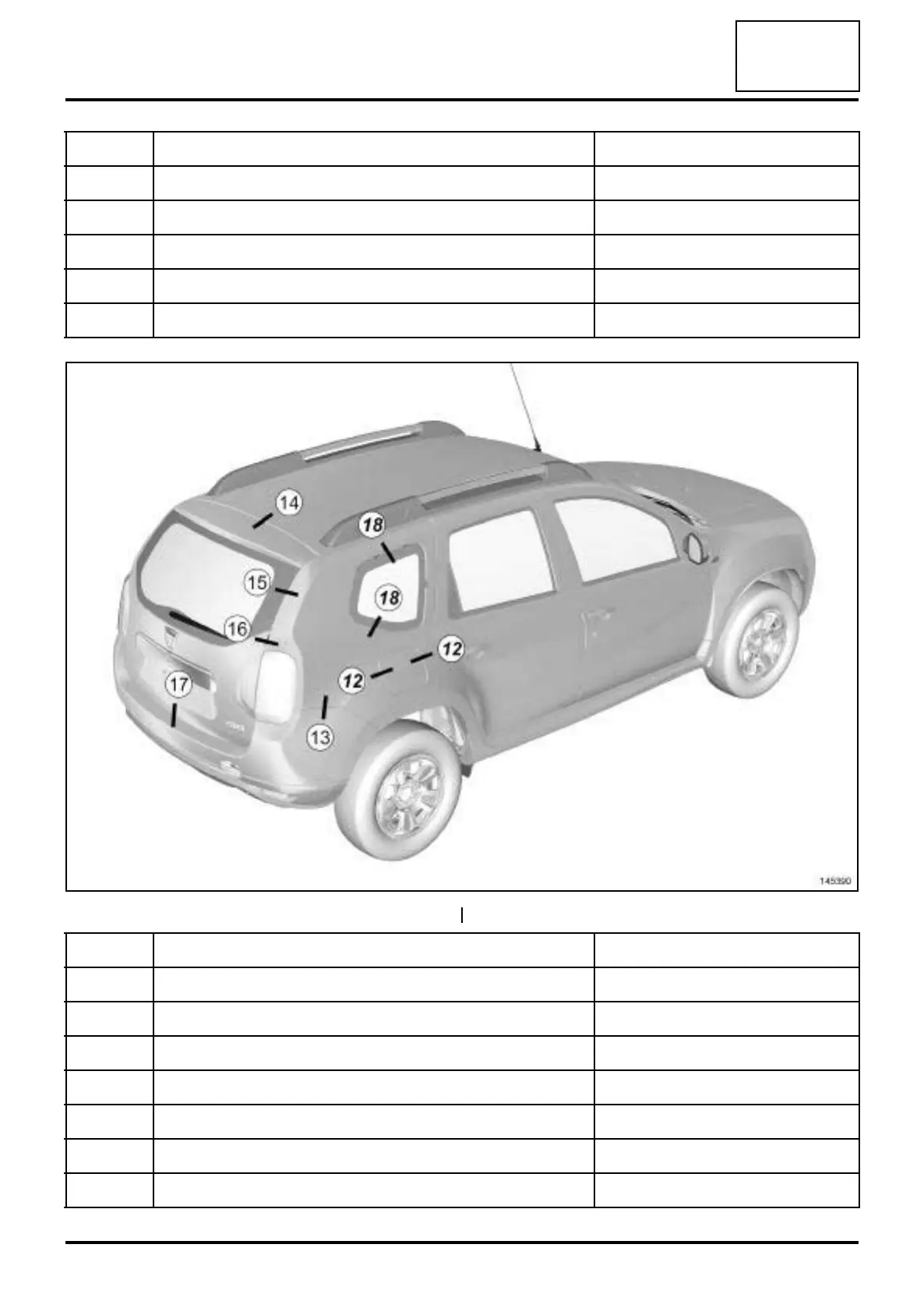

VEHICLE BODYWORK SPECIFICATIONS
Vehicle panel gaps: Adjustment value
01C
(7) windscreen / roof 4.5 ± 1
(8) side doors / roof 18 ± 1
(9) front side door / rear side door 4.5 ± 1
(10) rear side door / rear wing panel 4.5 ± 1
(11) side doors / sill panel 6 ± 2
145390
No. Location Clearances (mm)
No. Location Clearances (mm)
(12) rear wing panel / fuel filler flap cover 3 ± 1.5
(13) rear wing panel / rear bumper 0.5
(14) roof / tailgate 5 ± 1
(15) tailgate rear screen / rear wing panel 4.5 ± 2
(16) tailgate / rear wing panel 4.5 ± 1.5
(17) tailgate / rear bumper 7 ± 2
(18) rear quarter panel window / rear wing panel 3 ± 1
