01C-2
VEHICLE BODYWORK SPECIFICATIONS
Vehicle panel gaps: Adjustment value
01C
WARNING
The clearance values are given for information pur-
poses.
When adjusting clearances, certain rules have to be
followed:
- maintain symmetry with respect to the opposite
side,
- ensure the flush fitting is correct,
- check correct operation of the opening, and water/
air-tightness.

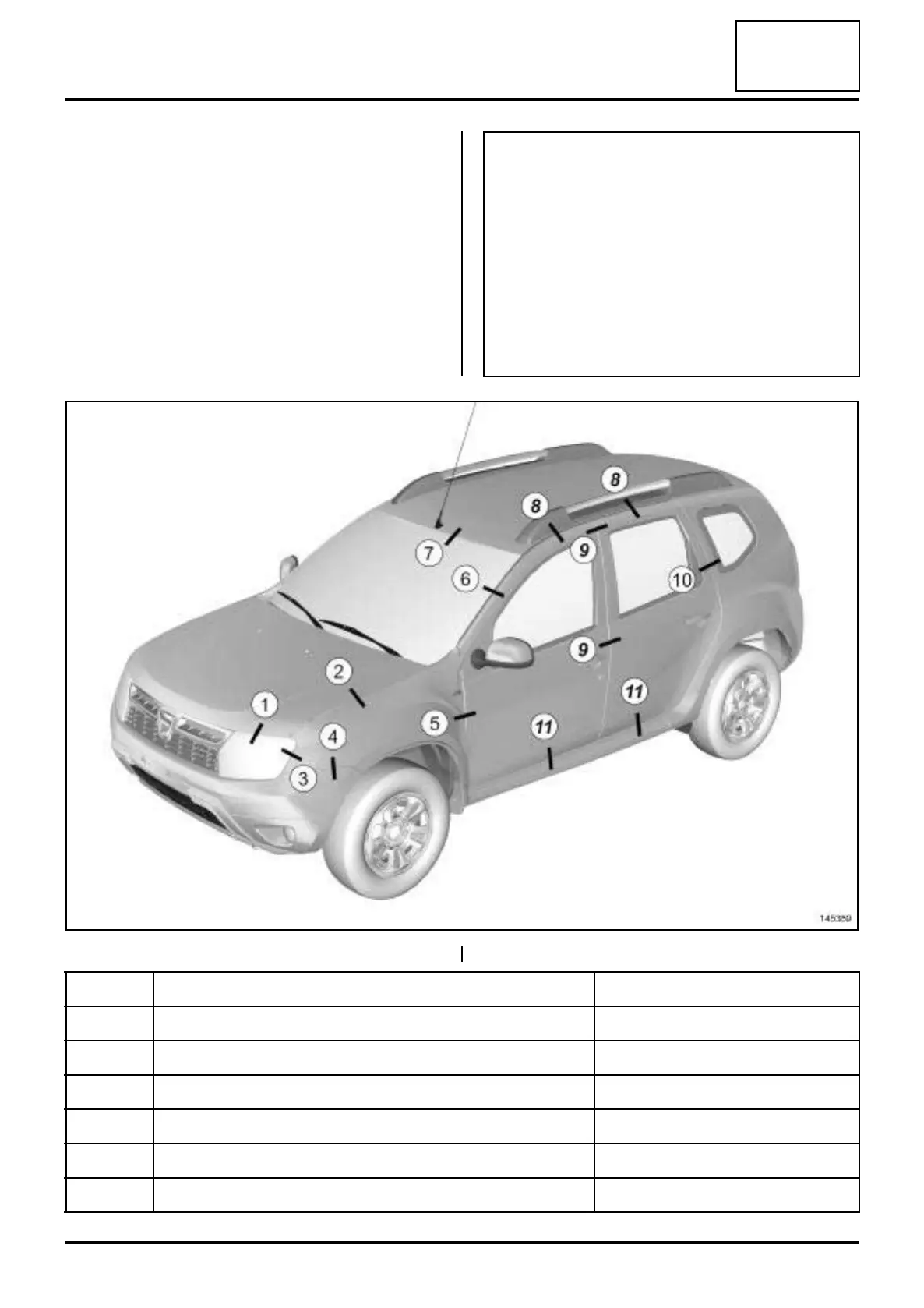

145389
No. Location Clearances (mm)
(1) bonnet / headlight 5 ± 2
(2) bonnet / front wing 4 ± 1.5
(3) headlight / front wing 2 ± 1.5
(4) front bumper / front wing 0.5
(5) front side door / front wing 4.5 ± 1
(6) front side door / windscreen pillar 18 ± 1
