AIR BAG AND PRETENSIONERS
Front side seat belt: Removal - Refitting
88C
a Remove:
-the bolt (3) from the inertia reel,
-the inertia reel.
a Remove the height adjustment mechanism (de-
pending on the vehicle equipment).
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: Front seat belt iner-
tia reel bolt
a Always replace the return mechanism bolts and the
lower mounting bolts of the front side seat belt.
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit the height adjustment mechanism (depending
on the vehicle equipment).
a Torque tighten the bolts of the height adjustment
mechanism (21 N.m).
a Refit:
-the inertia reel,
-the inertia reel bolt.
a Tighten to torque the inertia reel bolt (21 N.m).
a Refit the wiring at the front side seat belt inertia reel
in the position marked during removal
a Connect the inertia reel connector.
a Clip on the inertia reel connector safety clip.
a Refit:
- the B-pillar trim (see B-pillar trim: Removal - Re-
fitting) (71A, Body internal trim),
a
Refit the front side seat belt return mechanism
a Torque tighten the bolt of the seat belt return
mechanism (21 N.m)
a
Refit the lower mounting for the front side seat belt.
a Torque tighten the bolt of the seat belt lower
mounting (21 N.m).
a Refit:
- the cover of the seat belt upper bolt,
- the cover of the seat belt lower bolt.

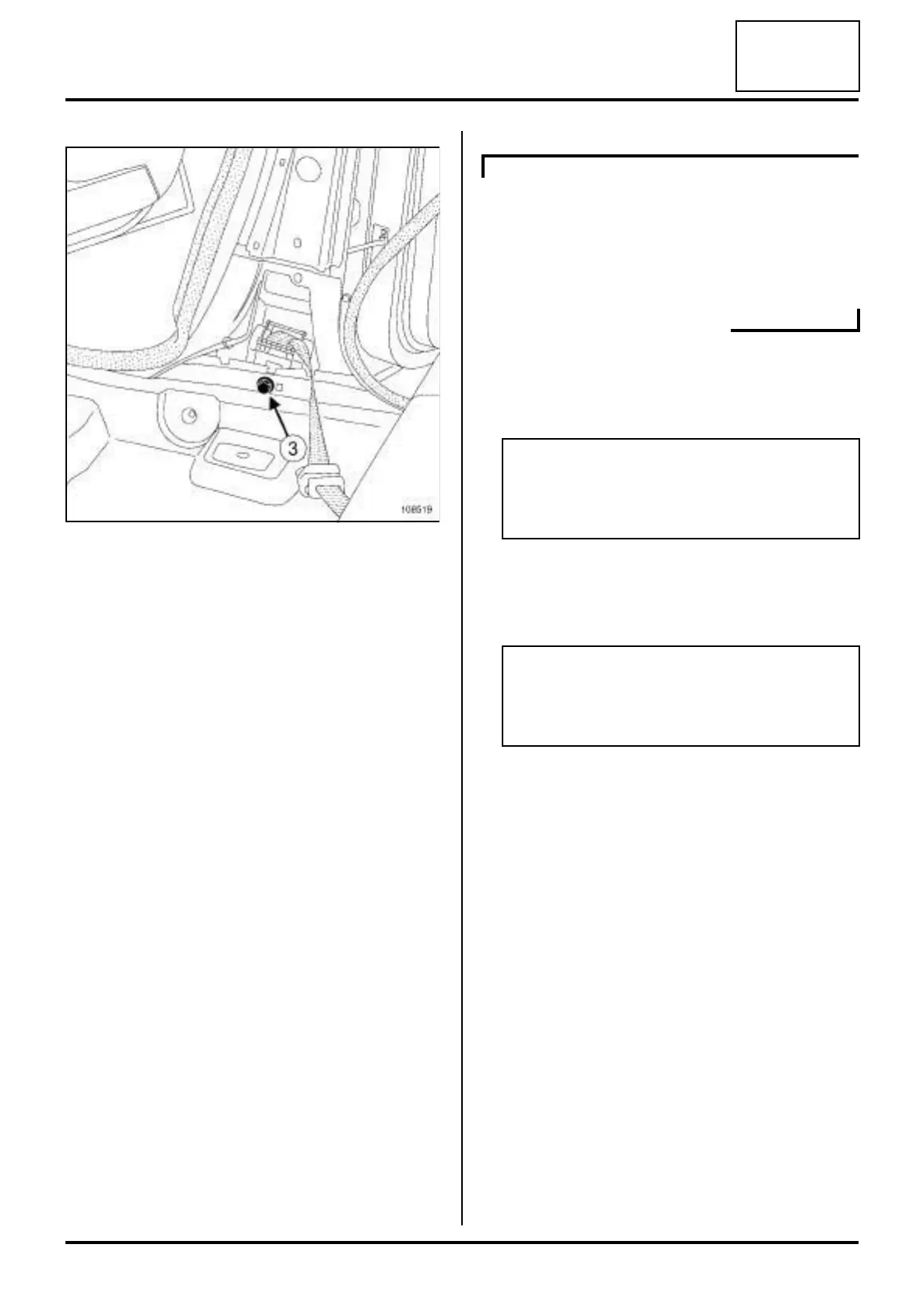

108519
WITH FRONT PRETENSIONER
Note:
Check that the seat belt is not twisted between
the inertia reel and the front side seat belt return
mechanism.
Note:
Check that the seat belt is not twisted between
the front side seat belt return mechanism and the
front side seat belt lower mounting.
