TOP AND FRONT OF ENGINE
Accessories belt: Removal - Refitting
K4M, and POWER ASSISTED STEERING, and AIR CONDITIONING
11A
a
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove the front right-hand wheel (see Wheel: Re-
moval - Refitting) (35A, Wheels and tyres).

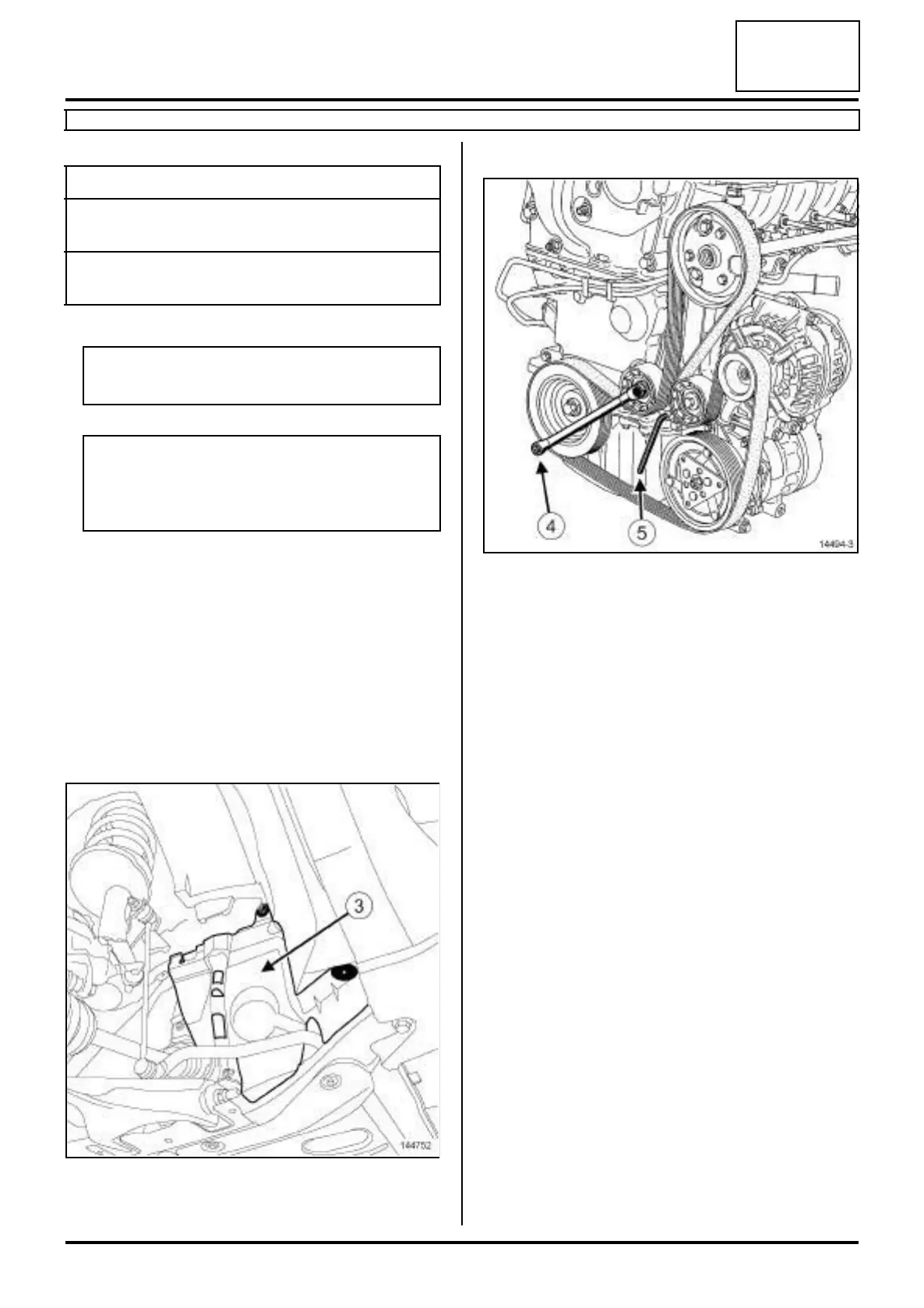

a Remove the front right-hand wheel arch side liner (3)
.
II - REMOVAL OPERATION
a Turn the accessories belt auto tensioner anti-clock-
wise using a spanner (4) (16 mm), to relax the belt.
a Lock the auto tensioner using a 6 mm Allen key (5) .
a Remove:
- the accessories belt,
- the auto tensioner bolts,
- the auto tensioner,
- the fixed roller bolt,
- the fixed roller.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: Accessories belt
parts always to be replaced: Accessories belt
tensioning roller
parts always to be replaced: Accessories fixed
roller
a Use a brush to remove any deposits from the crank-
shaft pulley V-grooves.
II - REFITTING OPERATION
a Refit:
-a new fixed roller,
-a new automatic tensioner.
Tightening torquesm
the automatic tensioning
roller mounting bolts
21 N.m
the fixed roller mount-
ing bolt
21 N.m
IMPORTANT
Wear cut-resistant gloves during the operation.
WARNING
Do not run the engine without the accessories
belt to avoid damaging the crankshaft accesso-
ries pulley.
144752
14494-3
