12A-8
FUEL MIXTURE
Air filter unit: Removal - Refitting
K4M
12A

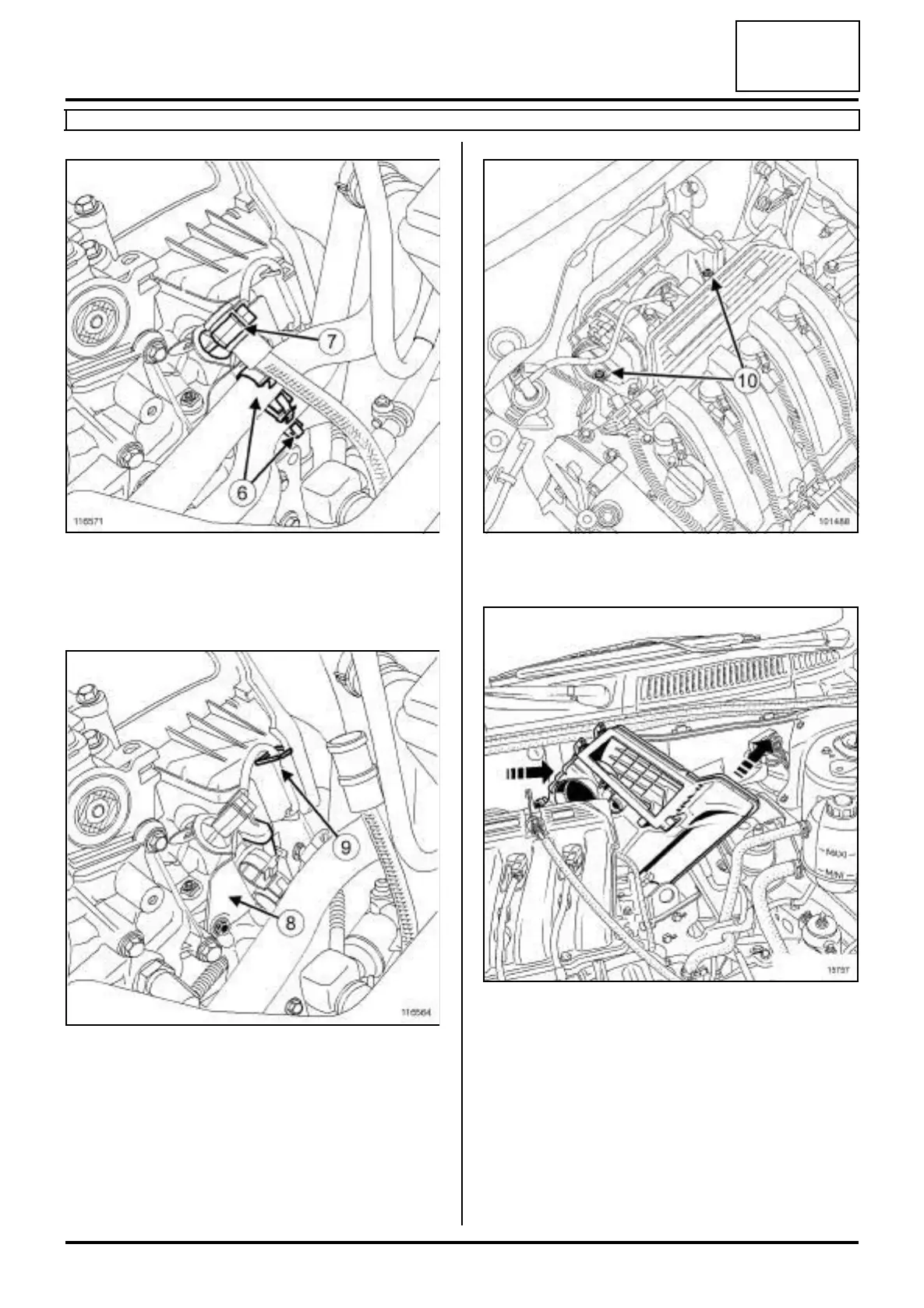

a Unclip:
-the coolant pipes at (6) ,
-the breather (7) .
a Remove the coolant pipes mounting bracket (8) .
a Unpick the electrical wiring (9) from the oxygen sen-
sor.
a Remove the two bolts (10) from the air filter unit.
a Remove the air filter unit.
REFITTING
I - REFITTING PREPARATION OPERATION
a Replace:
- the throttle valve seal each time it is removed using
grease to make fitting easier,
116571
116564
101488
15757
