16A-15
STARTING - CHARGING
Alternator pulley: Removal - Refitting
K4M
16A
IV - REFITTING OPERATION FOR THE
ALTERNATOR PULLEY

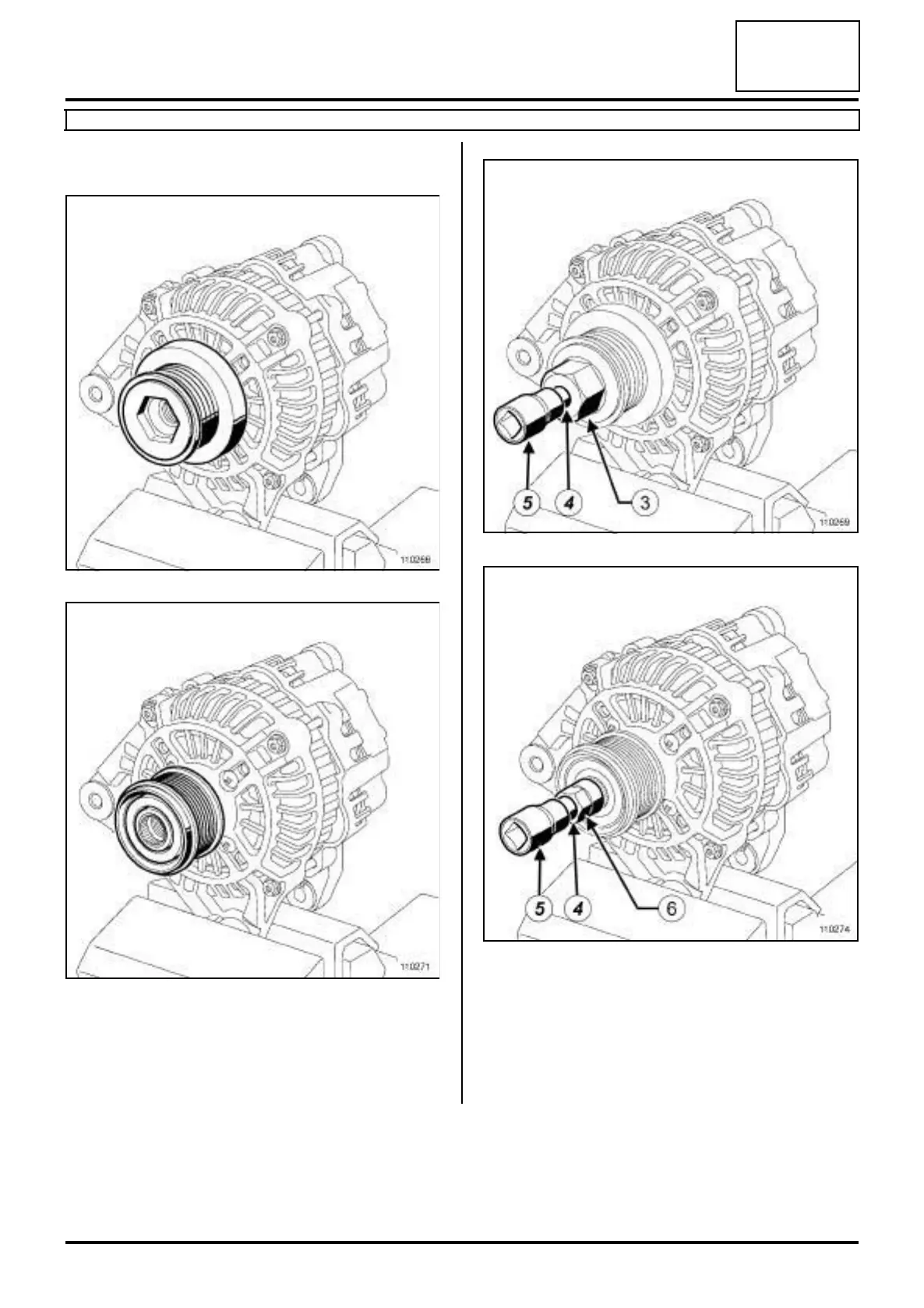

a Tighten the new alternator pulley.
a Position:
- the hexagonal socket (3) or the splined socket (6)
in the alternator pulley (depending on the version),
- the end piece (4) in the recess of the alternator ro-
tor,
- the end piece holder (5) on the end piece.
110266
110271
110269
110274
