16A-16
STARTING - CHARGING
Alternator pulley: Removal - Refitting
K4M
16A

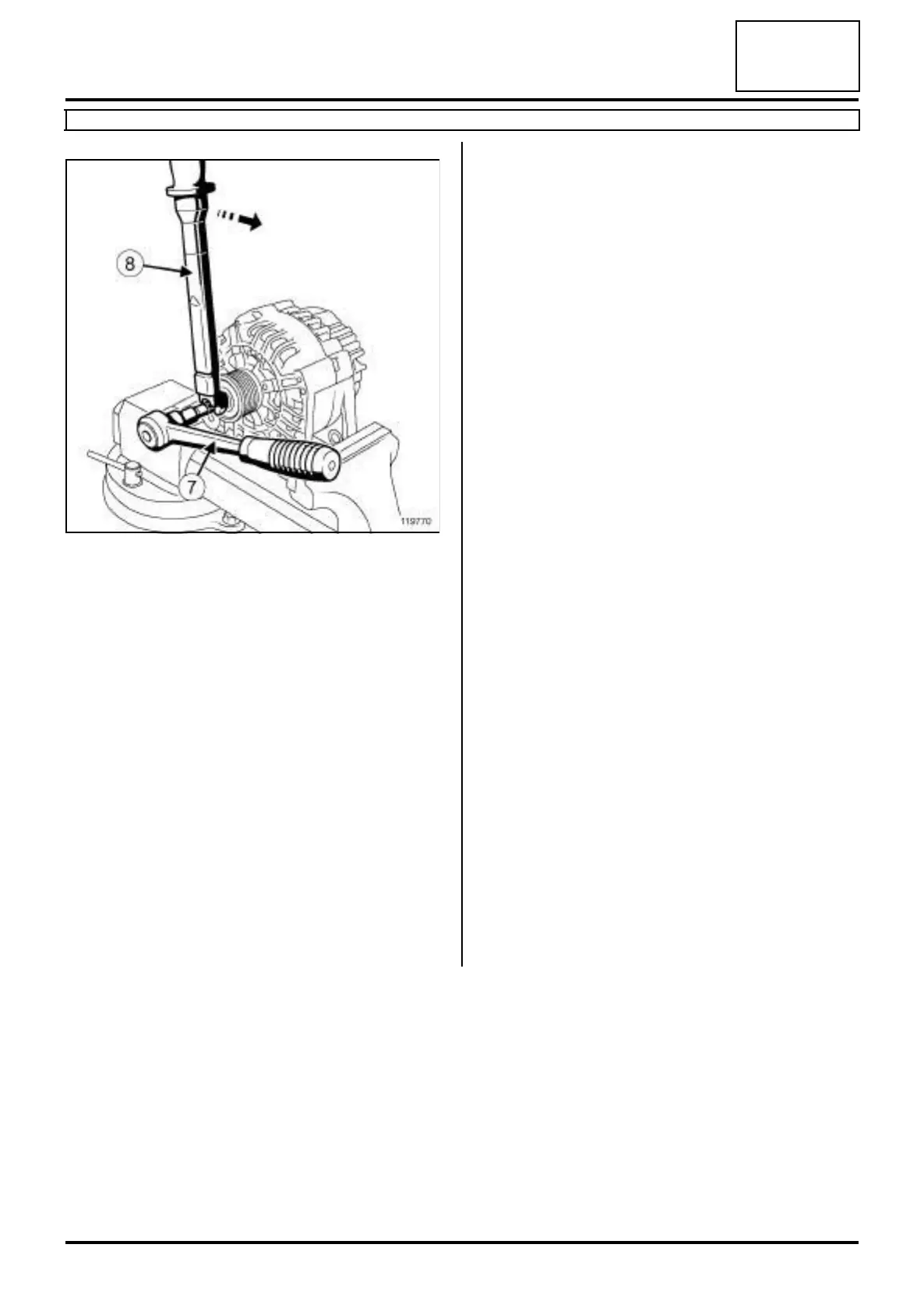

a Immobilise the alternator rotor using the spanner (7)
.
a Torque tighten the alternator pulley (80 N.m) using
the torque wrench (8) equipped with a 15mm
open-ended spanner for torque wrench.
a Remove the tools.
a Clip the new protector onto the alternator pulley (if
equipped).
V - FINAL OPERATION
a Refit:
-the alternator (see 16A, Starting - Charging, Al-
ternator: Removal - Refitting, page 16A-1) ,
-the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-2) .
a Connect the battery (see Battery: Removal - Refit-
ting) .
119770
