Renault Duster 2007 - Page 287

16A-17
STARTING - CHARGING
Alternator pulley: Removal - Refitting
K9K
16A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Disconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
a Remove:
-the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-2) ,
-the alternator (see 16A, Starting - Charging, Al-
ternator: Removal - Refitting, page 16A-1) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED

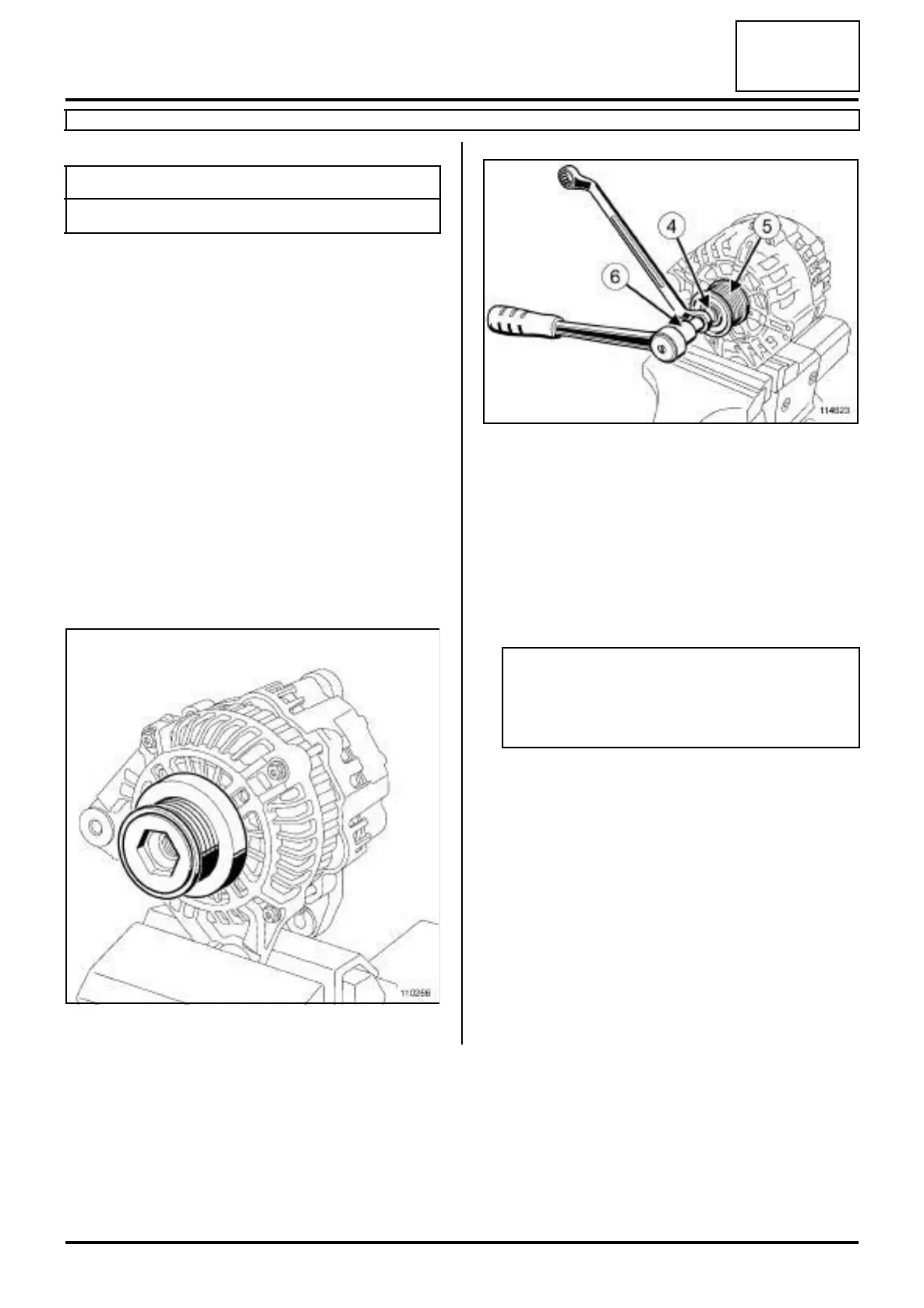

a Unclip the alternator pulley protector (if equipped).
a Place the alternator in a vice jaw.
a Fit:
- the splined socket (4) of thein the free wheel pulley
(5) ,
- the end piece and holder assembly (6) of theon the
alternator shaft.
a Immobilise the splined socket (4) .
a Loosen the alternator shaft.
a
a Remove the free wheel pulley.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
a Refit the pulley to the alternator shaft
Tightening torquesm
alternator pulley nut 80 N.m
110266
114623
Note:
Do not use a screwdriver to remove or refit the
pulley. A damaged or deformed front bearing can
lead to damage to the alternator.
