19A-30
COOLING
Engine cooling fan assembly: Removal - Refitting
K9K
19A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Disconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
a Remove:
-the engine cover,
-the air intake sleeve,
-the front bumper (see Front bumper assembly:
Exploded view) (55A, Exterior protection).

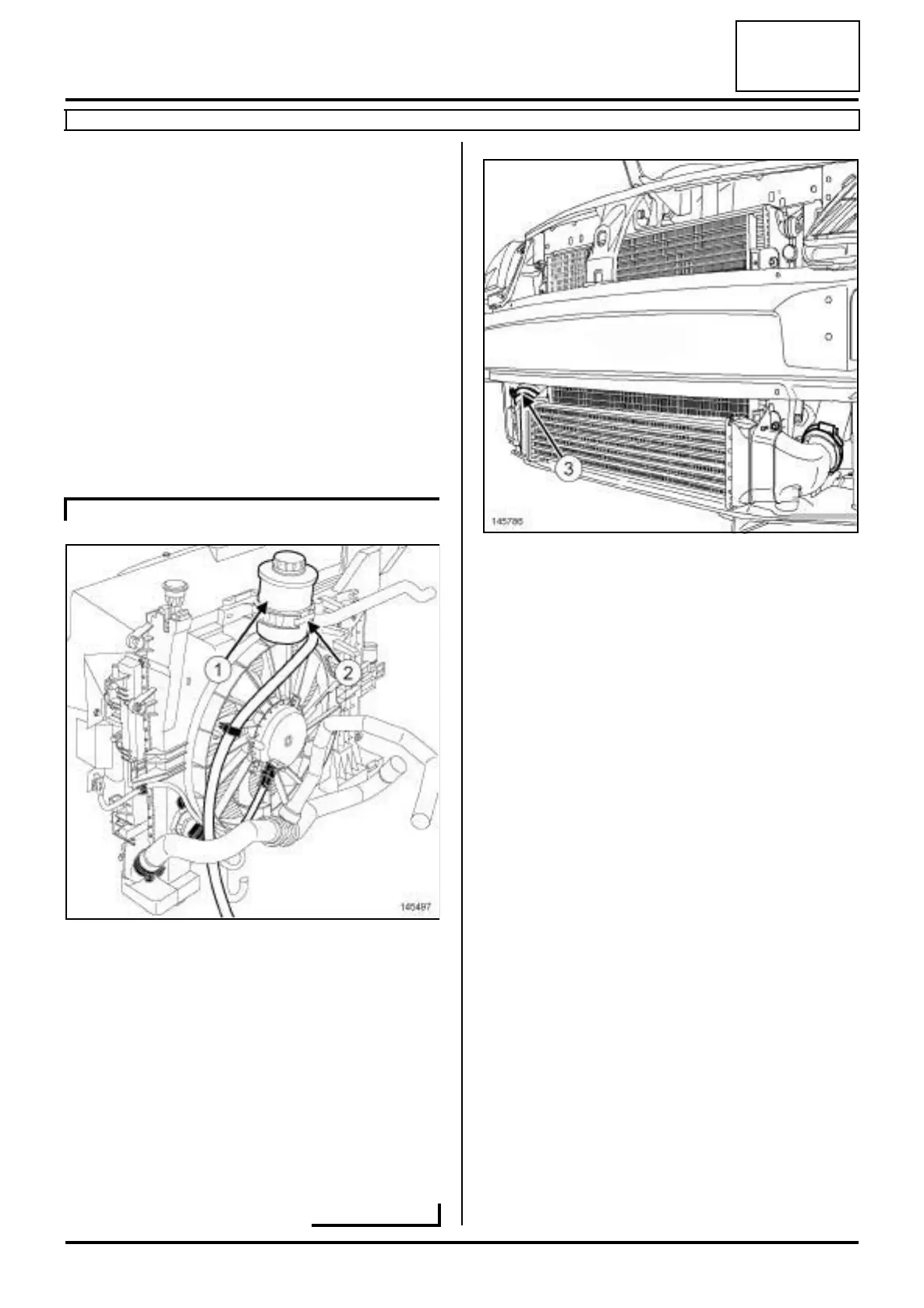

a Unclip:
-the power-assisted steering hoses on the fan as-
sembly,
-the power-assisted steering fluid reservoir (1) from
its support at (2) .
a Secure the power-assisted steering fluid reservoir to
the engine.
a Remove the power assisted steering fluid reservoir
bracket.
a Disconnect the intercooler duct at (3) .
STANDARD HEATING RECIRCULATION
145497
145786
