19A-31
COOLING
Engine cooling fan assembly: Removal - Refitting
K9K
19A
II - REMOVAL OPERATION

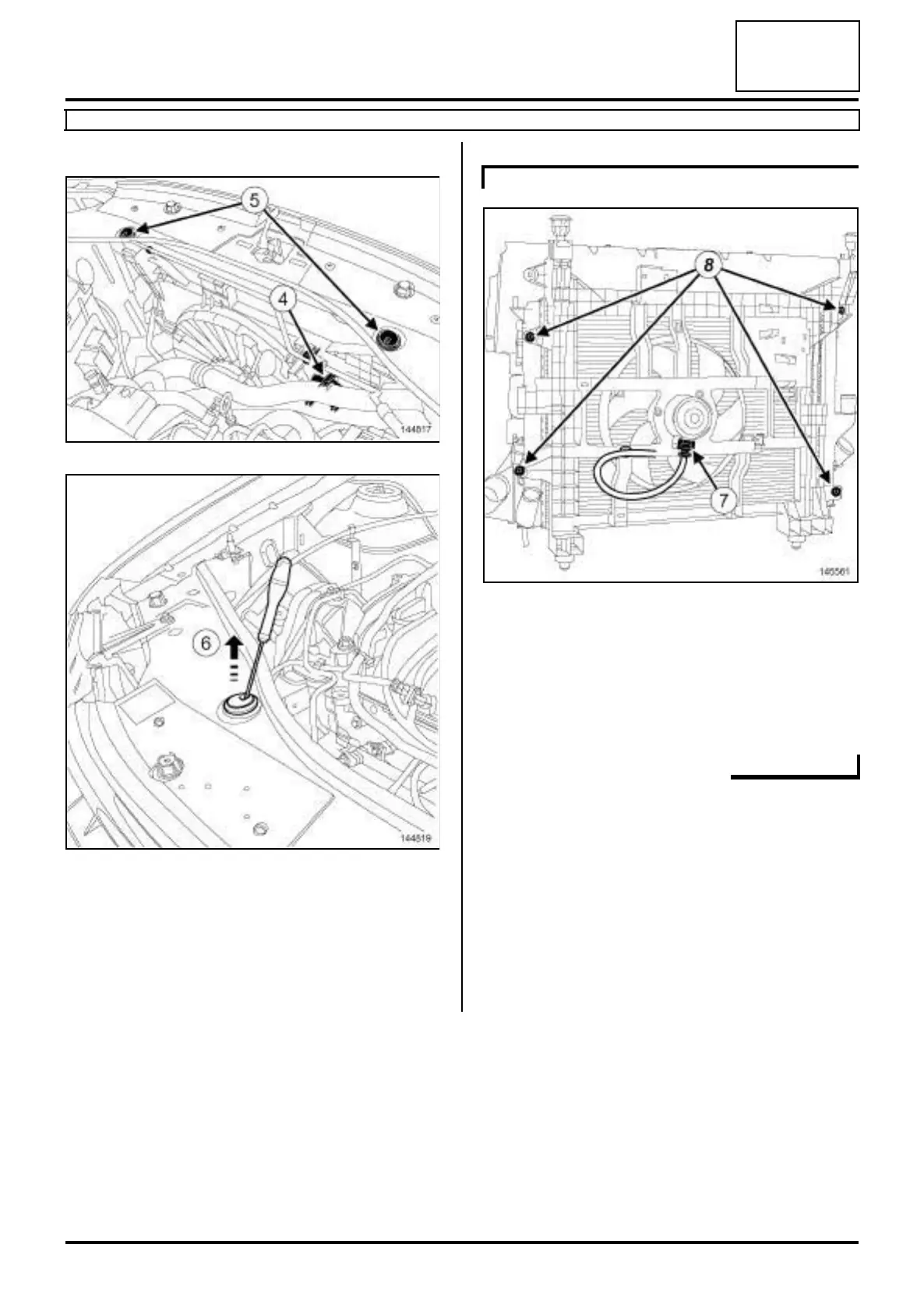

a Unclip the following from the support (4) :
-the intercooler duct on the fan assembly,
-the engine coolant hose.
a Press on the clips of the centring pins (5) on the en-
gine cooling fan assembly using a screwdriver and
pull them according to the direction of the arrow (6) .
a Disconnect the cooling fan assembly connector (7) .
a Unclip the engine cooling fan assembly wiring.
a Move aside the wiring of the engine cooling fan as-
sembly.
a Remove the engine cooling radiator bolts (8) .
144817
144819
STANDARD HEATING RECIRCULATION
145561
