19A-32
COOLING

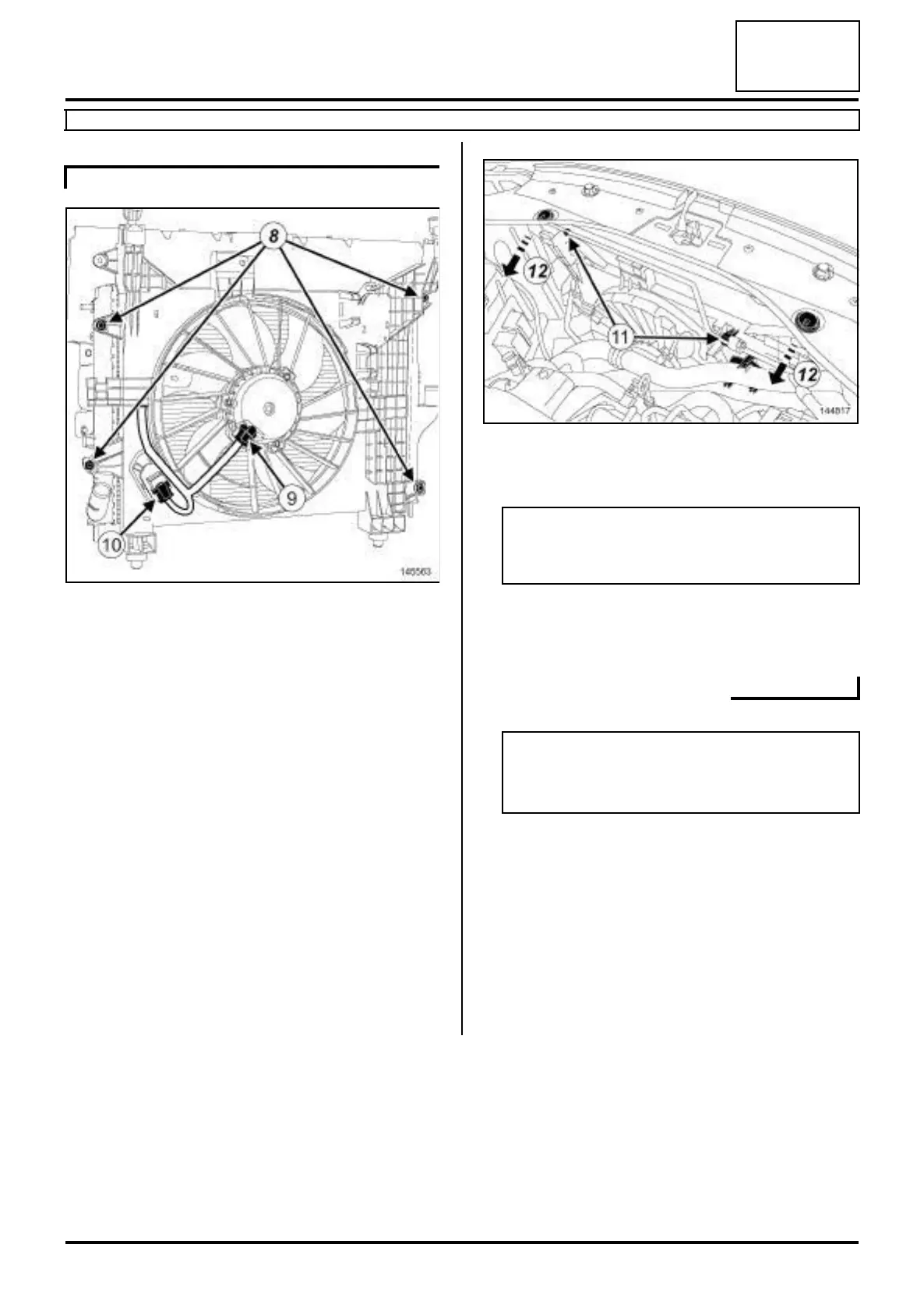

Engine cooling fan assembly: Removal - Refitting
K9K
19A
a Disconnect:
-the engine cooling fan assembly connector (9) ,
-the engine cooling fan assembly resistor connector
(10) .
a Unclip the engine cooling fan assembly wiring.
a Move aside the wiring of the engine cooling fan as-
sembly.
a Remove the engine cooling radiator bolts (8) .
a Unclip the « condenser - expansion valve » connect-
ing pipe at (11) .
a Pull the fan assembly according to the arrows (12)
passing it under the « condenser - expansion
valve » connecting pipe.
a
a Remove the engine cooling fan assembly from
above the vehicle.
In the event of replacement
a Remove from the fan assembly:
- the power-assisted steering hose clips,
- the wiring clip,
- the support of the intercooler duct and coolant hose
on the fan assembly.
AIR CONDITIONING
145563
144817
WARNING
In order to avoid any refrigerant leaks, do not
damage (deform, twist, etc.) the pipe.
Note:
Do not damage the cooling unit vanes (radiator,
condenser, etc.) during handling.
