21A-14
MANUAL GEARBOX
Manual gearbox: Removal - Refitting
K4M, and JR5
21A
2 - RIGHT SIDE OF VEHICLE

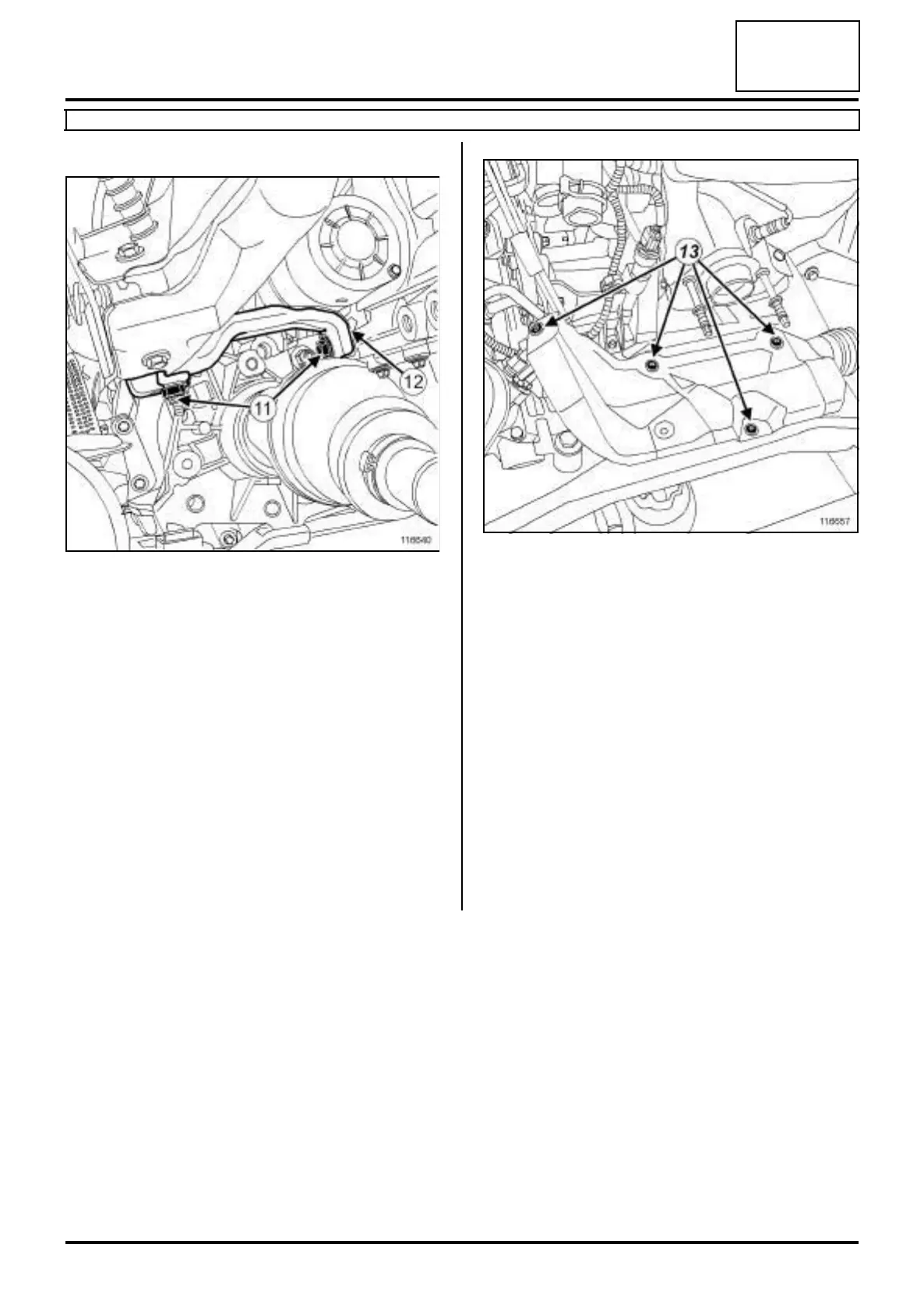

a Remove:
-the front right-hand wheel arch side liner,
-the mountings (11) of the stay between the exhaust
manifold and the cylinder block,
-the stay (12) .
a Uncouple the front right-hand wheel driveshaft from
the gearbox (see 29A, Driveshafts, Front right-
hand driveshaft: Removal - Refitting, page 29A-
4) .
a Remove:
-the bolts (13) from the steering box heat-resistant
protector,
- the heat shield,
- the steering box bolts on the subframe.
a Attach the steering rack to the body.
a Remove:
- the lower engine tie-bar (see Lower engine tie-
bar: Removal - Refitting) (19D, Engine mount-
ing),
- the front axle subframe (see Front axle subframe:
Removal - Refitting) (31A, Front axle compo-
nents),
- the starter (see Starter: Removal - Refitting)
(16A, Starting - Charging).
