21A-15
MANUAL GEARBOX
Manual gearbox: Removal - Refitting
K4M, and JR5
21A
II - REMOVAL OPERATION

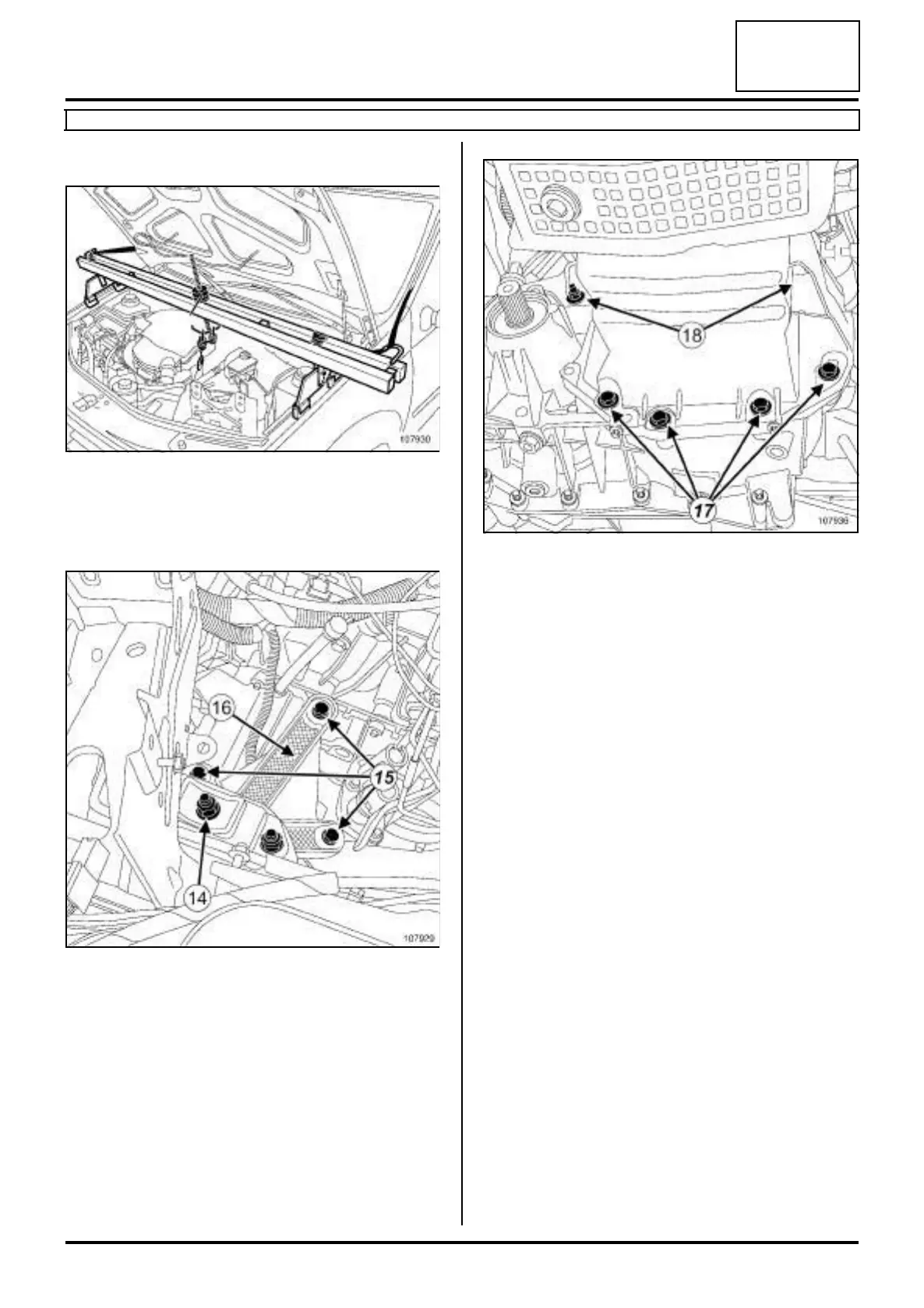

a Fit the engine support tool (Mot. 1453) with the re-
taining belt, taking the flywheel end lifting eye as an
anchoring point.
a Remove:
-the suspended mounting nut (14) on the rubber
pad,
-the bolts (15) from the gearbox suspended mount-
ing,
-the suspended mounting (16) from the gearbox,
-the gearbox upper bolts.
a Fit a component jack under the gearbox.
a Remove:
- the gearbox lower bolts (17) ,
- the gearbox stud nuts (18) ,
- the gearbox.
REFITTING
I - REFITTING PREPARATION OPERATION
a Check for leaks from the input shaft, replace the
guide tube if necessary (see 21A, Manual gearbox,
Input shaft lip seal: Removal - Refitting, page
21A-25) .
a Always replace:
- the differential output seals,
- the clutch thrust bearing.
a Remove:
- the differential output seals (see 21A, Manual
gearbox, Differential output seal: Removal - Re-
fitting, page 21A-2) ,
- the clutch thrust bearing (see 20A, Clutch, Clutch
thrust bearing: Removal - Refitting, page 20A-6)
.
a Refit:
- new differential output seals (see 21A, Manual
gearbox, Differential output seal: Removal - Re-
fitting, page 21A-2) .
107930
107929
107936
