Front driveshaft gaiter, wheel side: Removal - Refitting
JR5
29A

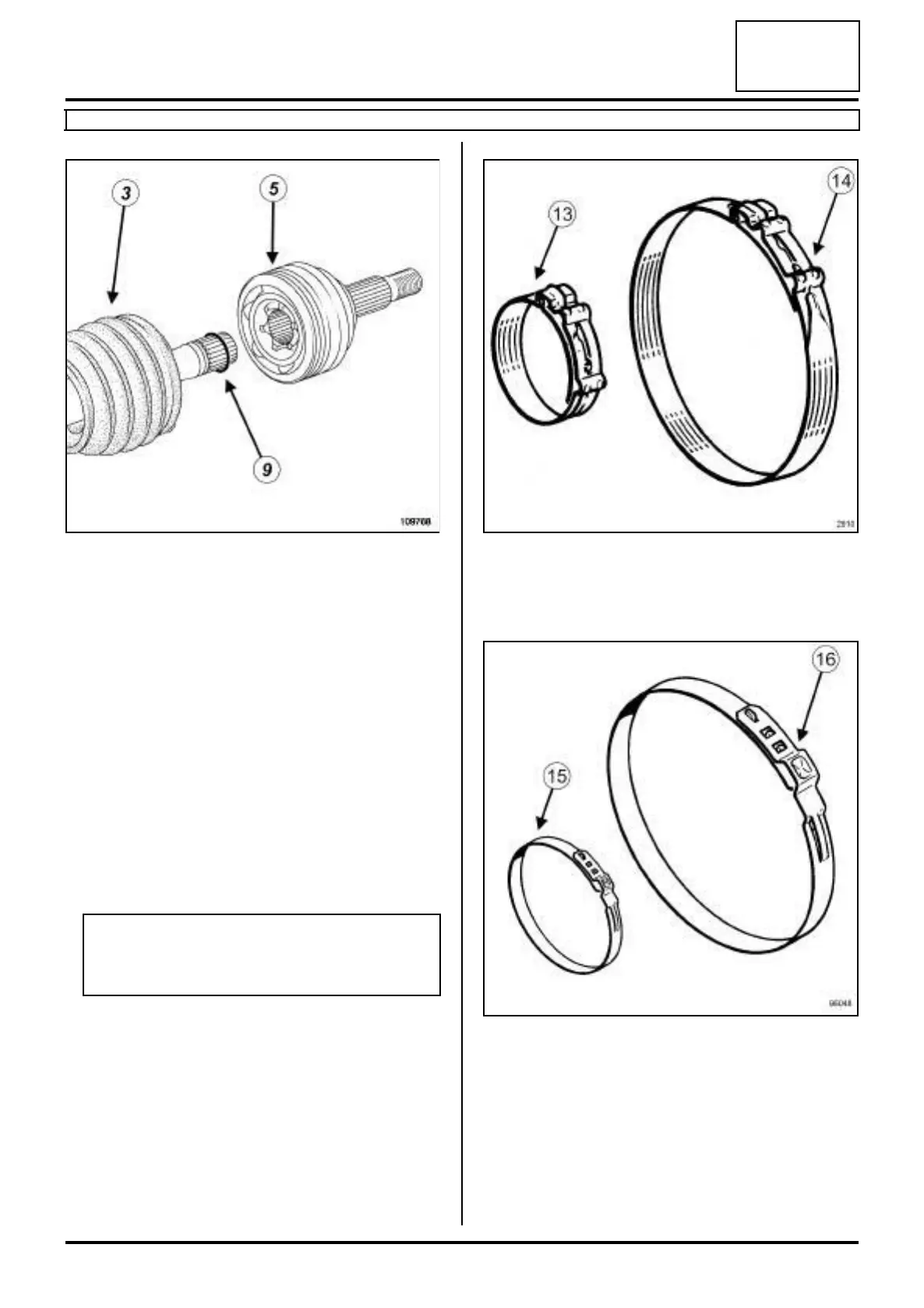

a Lightly lubricate the driveshaft using the GREASE
supplied with the gaiter to facilitate its fitting.
a Fit the gaiter (3) onto the driveshaft.
a Refit:
-the new lock ring (9) ,
-the stub axle bowl (5) to the driveshaft by tapping
the stub axle bowl using a brass drift until the lock
ring clicks into place behind the ball hub.
a Spread the quantity of grease around the gaiter and
the stub axle bowl.
a Insert the lips of the gaiter into the grooves of the
stub axle bowl and driveshaft.
a Move the seal by hand to check that the edges are
positioned correctly.
a Insert a smooth rod with a rounded end between the
gaiter and the stub axle bowl to regulate the amount
of air inside the joint.
a Fit:
-the small securing clip on the driveshaft gaiter,
-the big securing clip on the driveshaft gaiter.
CAILLEAU « click » clips
a Tighten the small clip (13) and the big clip (14) until
they click, using the tool.
OETIKER clips
a Tighten the small clip (15) and the big clip (16) using
the tool.
109768
Note:
Check that the gaiter lip is correctly positioned in
the groove of the driveshaft.
