52A-7
NON-SIDE OPENING ELEMENT MECHANISMS
Bonnet strut: Removal - Refitting
52A
REMOVAL
REMOVAL OPERATION
a

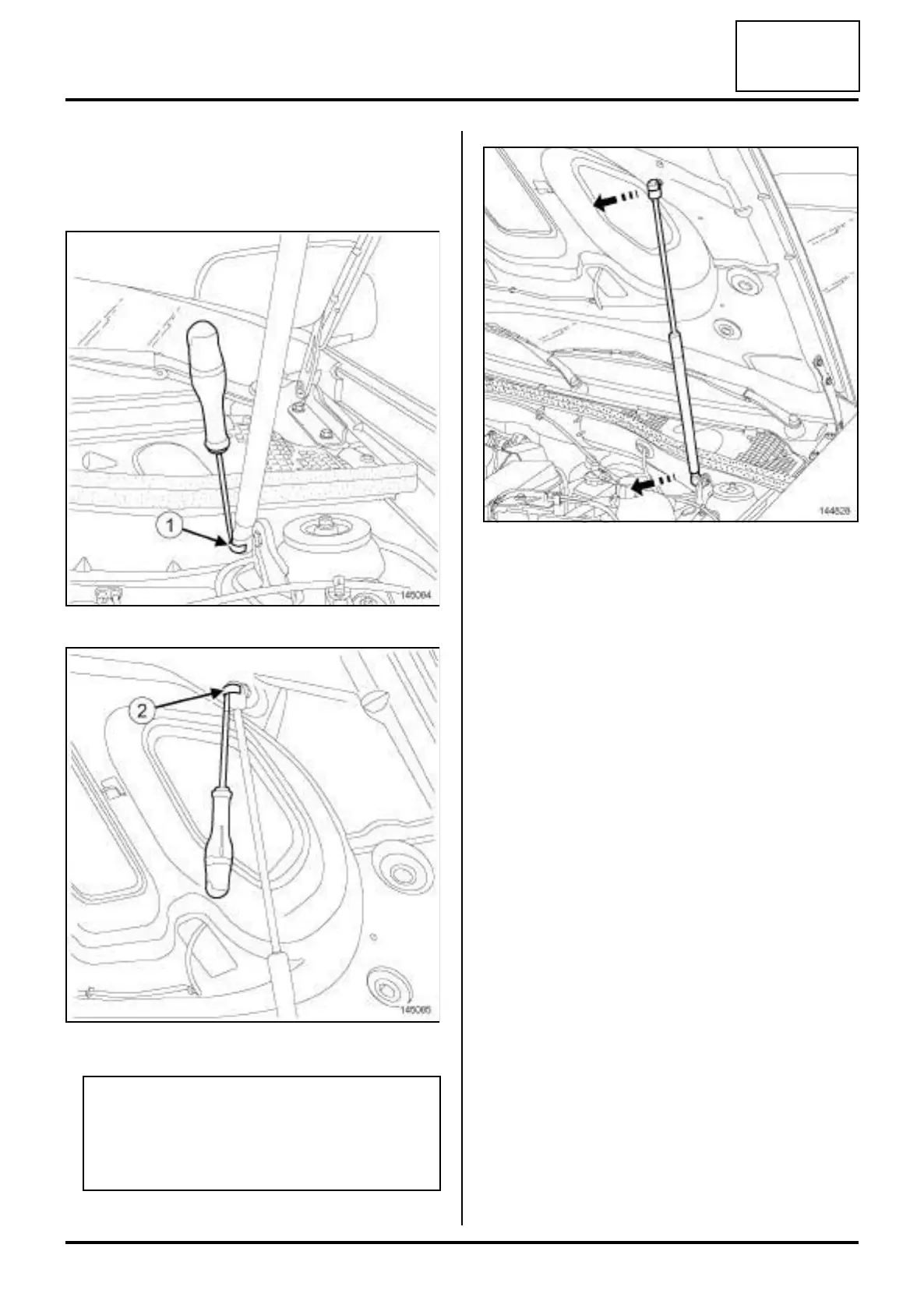

a Unclip the clips (1) and (2) without removing them.
a Remove the bonnet strut while holding the bonnet.
REFITTING
a Position the clips on the bonnet strut.
a Proceed in the reverse order to removal
145084
145085
WARNING
The strut is fitted in such a way as to prevent
leaks. Note the strut's direction of fitting (position
of the body and cylinder rod) before removing it,
in order to refit the strut identically.
