62C

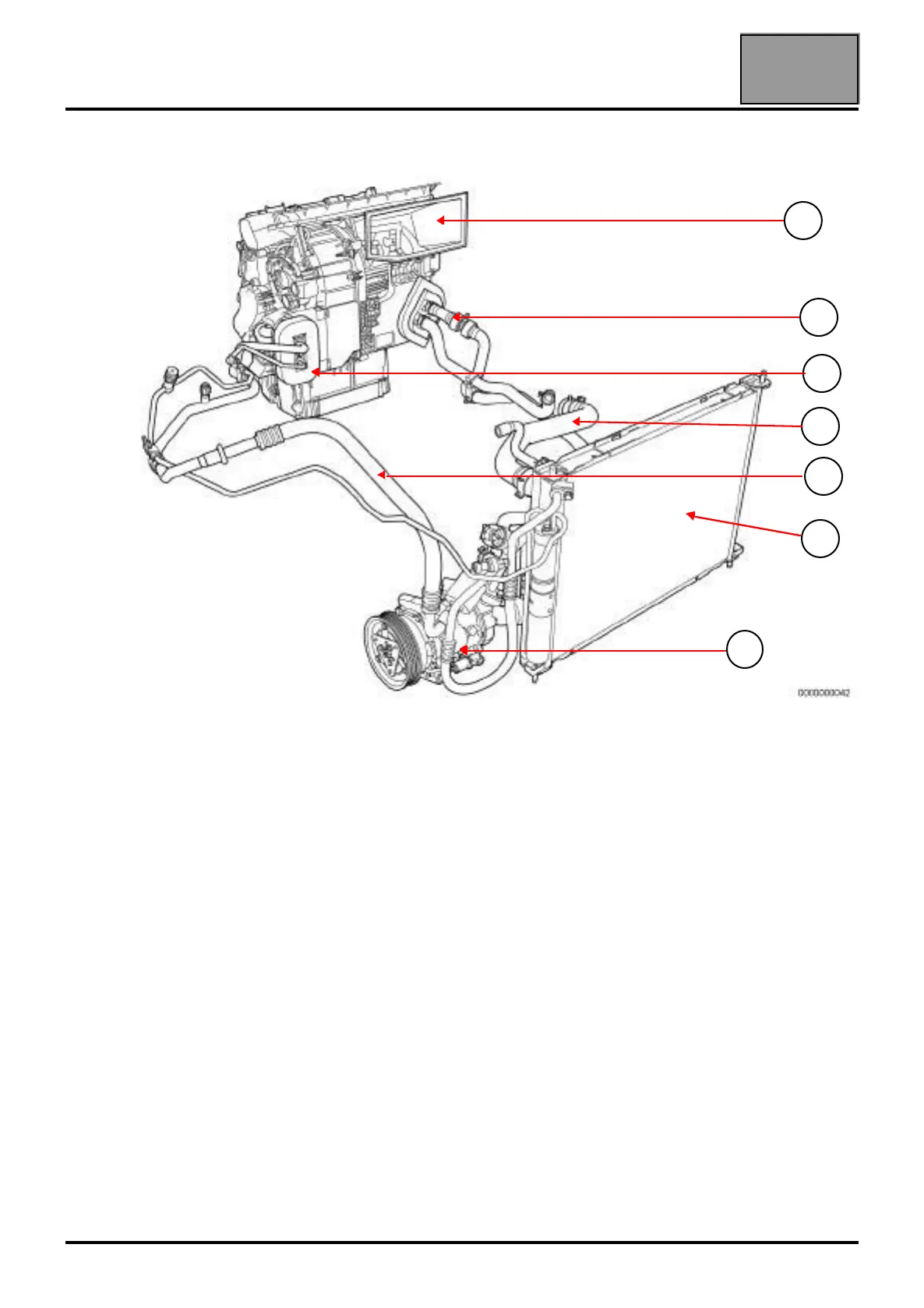

System (cold loop, hot loop and components)
1) Air conditioning unit
2) Heater matrix
3) Expansion valve and evaporator
4) Coolant circuit
5) Cold loop
6) Condenser and radiator
7) Compressor
• COLD LOOP COMPONENTS:
– Compressor: This is located at the bottom on the left-hand side, next to the radiator in the engine compartment.
– Condenser: This is located between the radiator and the cooling fan assembly.
– Dehydrator reservoir: This is located on the left-hand side of the condenser outlet.
– Heating and air conditioning assembly: This is located underneath the dashboard.
– Thermostatic expansion valve: This is located to the left of the heating and air conditioning assembly on
the bulkhead.
– Evaporator: This is located to the right of the thermostatic expansion valve in the heating and air conditioning
assembly.
– High pressure pipe: This pipe connects the compressor, condenser, dehydrator reservoir and expansion valve
inlet in series (it is located in the engine compartment on the left-hand side).
1
2
3
4
5
6
7
CLIMATE CONTROL
Fault finding – List and location of components
