ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine - gearbox assembly: Removal - Refitting
K4M
10A

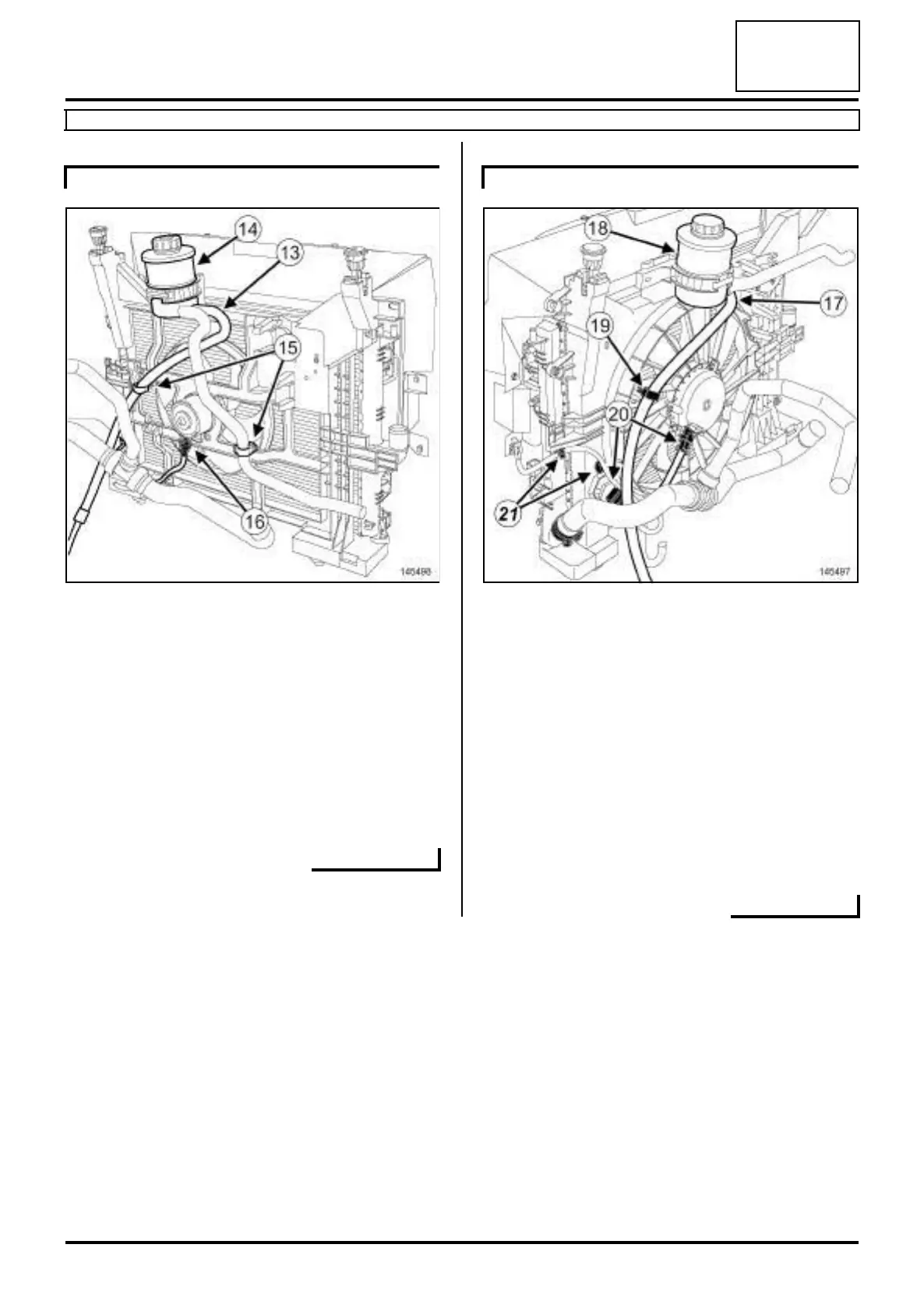

a Remove:
-the power-assisted steering low pressure pipe (13)
on the oil reservoir using the (Mot. 1448),
-the power assisted steering oil reservoir (14) ,
-the bolt of the power-assisted steering high pres-
sure pipe on the cylinder block.
a Unclip the power-assisted steering pipes on the fan
assembly mounting at (15) .
a Disconnect the fan assembly connector (16) .
a Remove:
- the power-assisted steering low pressure pipe (17)
on the oil reservoir using the (Mot. 1448),
- the power assisted steering oil reservoir (18) ,
- the bolt of the power-assisted steering high pres-
sure pipe on the cylinder block.
a Unclip the power-assisted steering pipes on the fan
assembly mounting at (19) .
a Disconnect the connectors (20) from the fan assem-
bly.
a Unclip the fan assembly wiring at (21) .
STANDARD HEATING RECIRCULATION
145498
AIR CONDITIONING
145497
