ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine - gearbox assembly: Removal - Refitting
K9K, and 796
10A

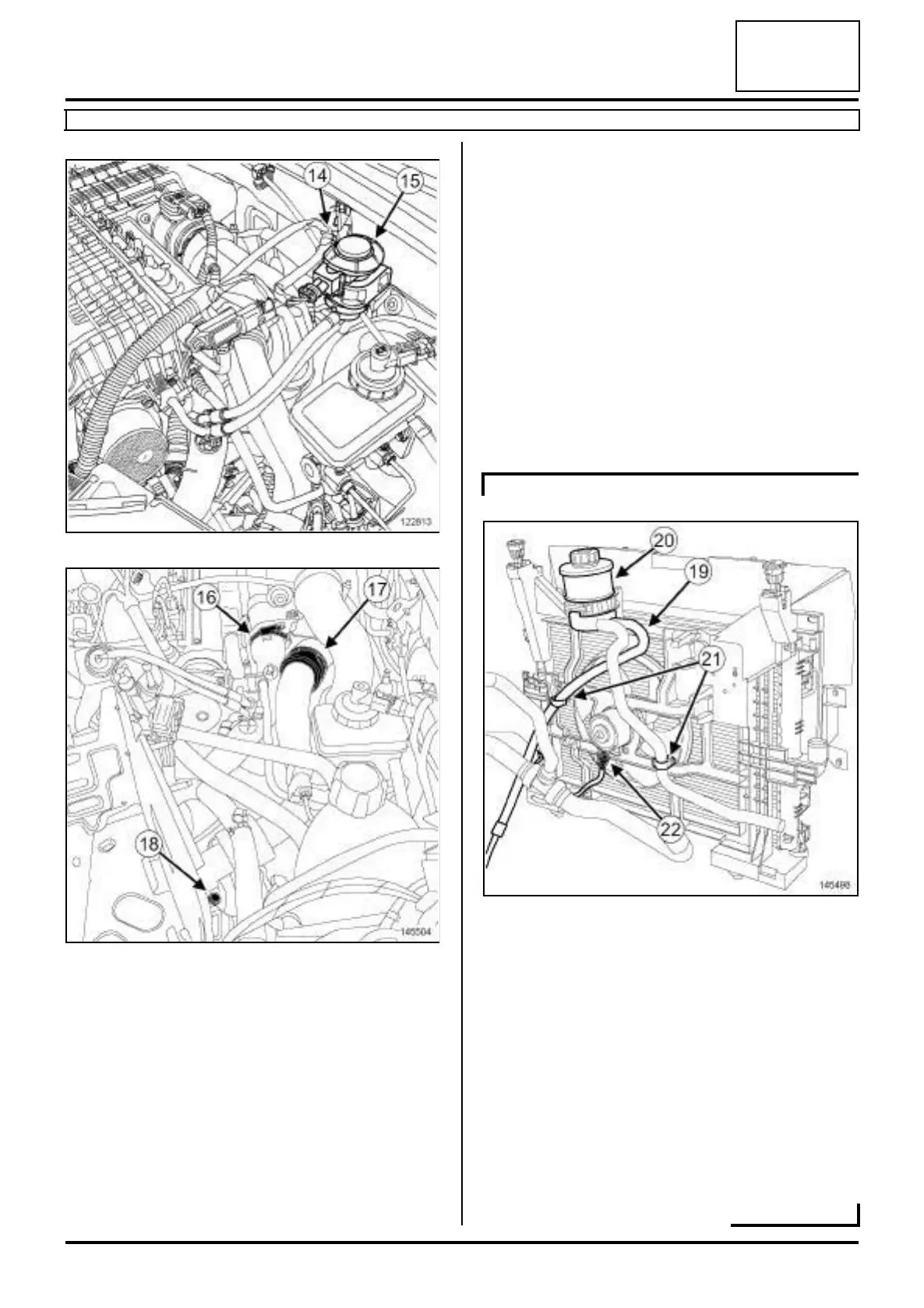

a Unclip:
-the turbocharger control solenoid valve wiring at
(14) ,
-the turbocharger control solenoid valve (15) from
its support.
a Disconnect:
-the air duct (16) on the EGR assembly,
-the air duct between the turbocharger and the inter-
cooler at (17) .
a Remove:
- the air duct nut (18) on the gearbox,
- the intercooler air ducts.
a Disconnect (see Power-assisted steering pump:
Removal - Refitting) (36B, Power-assisted stee-
ring):
- the power-assisted steering low pressure hose on
the power-assisted steering pump using the (Mot.
1448) and drain the circuit,
-the power-assisted steering high pressure pipe on
the power-assisted steering pump,
- the connector from the power-assisted steering
pressure switch.
a Remove:
- the power-assisted steering low pressure pipe (19)
on the oil reservoir using the (Mot. 1448),
- the power assisted steering oil reservoir (20) ,
- the bolt of the power-assisted steering high pres-
sure pipe on the cylinder block.
a Unclip the power-assisted steering pipes on the fan
assembly mounting at (21) .
a Disconnect the fan assembly connector (22) .
