10A-68
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine - gearbox assembly: Removal - Refitting
K9K, and 796
10A
a Remove the power-assisted steering high pressure
pipe bolt on the cylinder block.

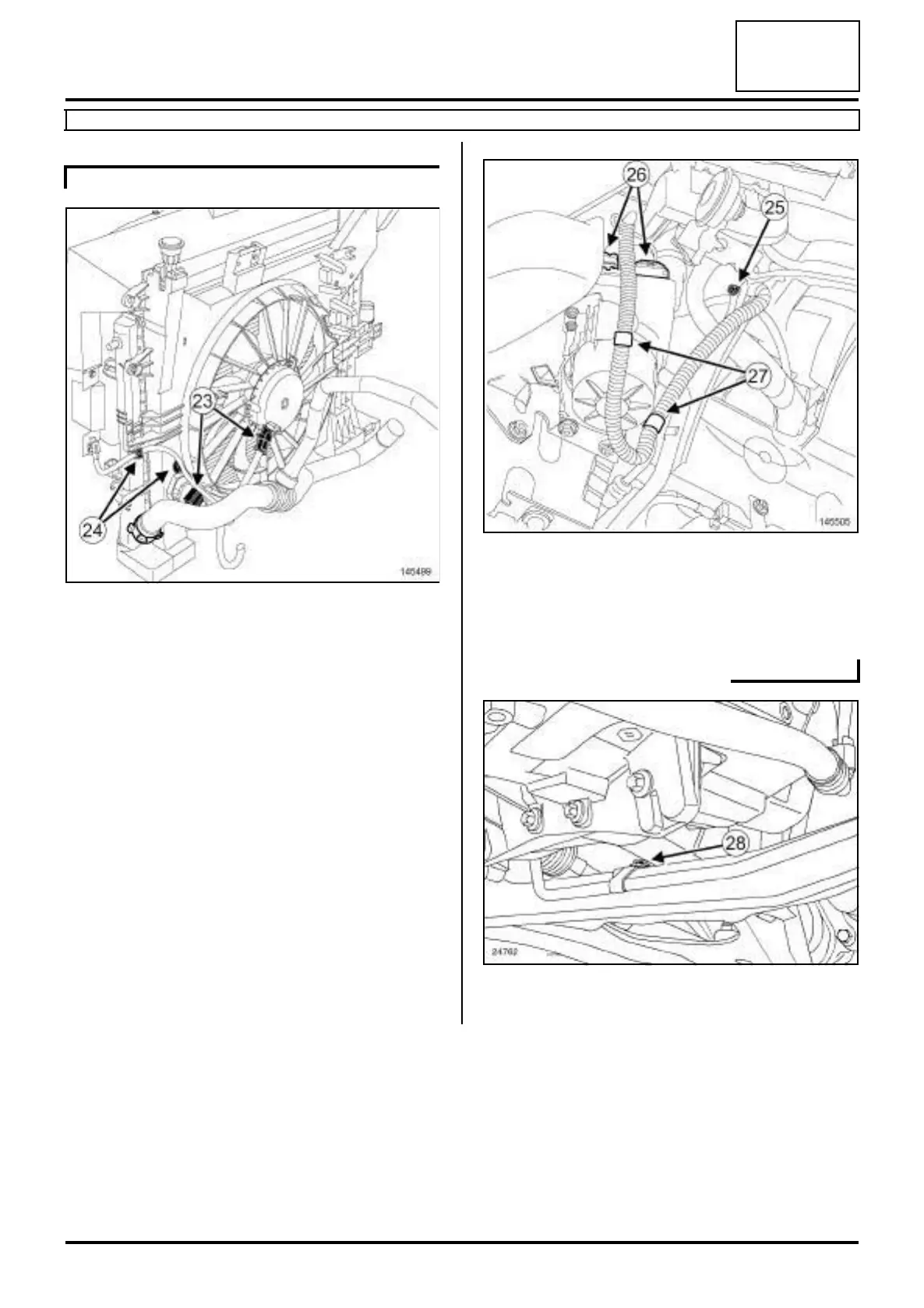

a Disconnect the connectors (23) from the fan assem-
bly.
a Unclip the fan assembly wiring at (24) .
a Remove the earth strap bolt (25) on the body.
a Disconnect the pump assembly connectors (26) .
a Unclip the pump assembly wiring at (27) .
a Remove the power-assisted steering low pressure
pipe bolt (28) on the front axle subframe.
AIR CONDITIONING
145499
145505
24762
