10A-69
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine - gearbox assembly: Removal - Refitting
K9K, and 796
10A

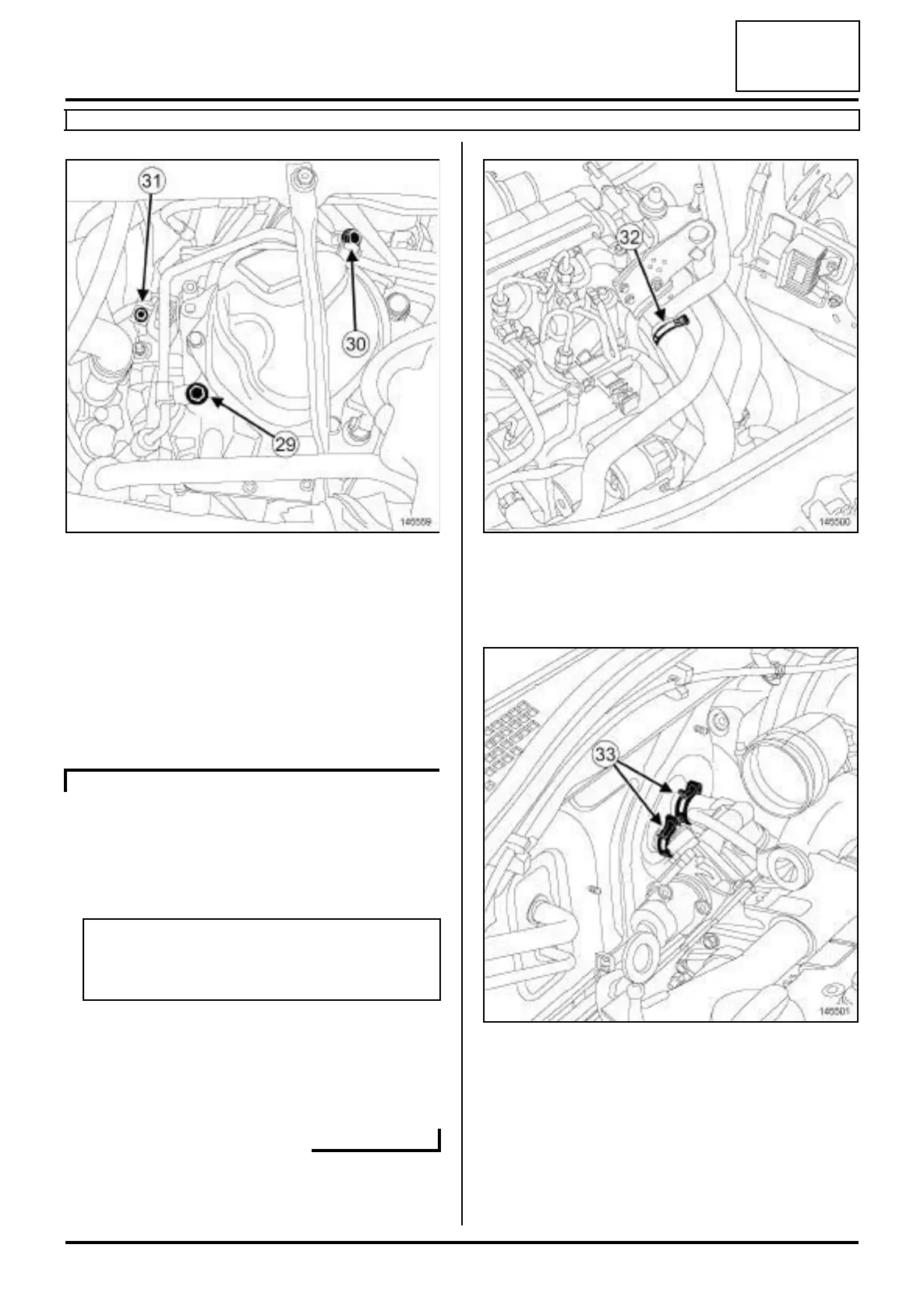

a Remove:
-the power-assisted steering high pressure pipe bolt
(29) on the gearbox,
-the power-assisted steering high pressure pipe bolt
(30) on the gearbox support,
-the earth strap bolt (31) on the gearbox.
a Remove the bolts from the pipe unions on the com-
pressor.
a Disconnect the compressor pipes.
a Fit blanking plugs in the pipe openings.
a Disconnect the air conditioning pressostat connec-
tor.
a Remove the expansion bottle nuts.
a Move aside the expansion bottle.
a Move aside the cooling hose clip (32) on the water
chamber using the (Mot. 1448).
a Disconnect the cooling hose on the water chamber.
a Move aside the cooling hose clips (33) on the heat-
ing radiator using the (Mot. 1448).
a Disconnect the cooling hoses on the heating radia-
tor.
a Remove the cooling hoses from their mountings.
a Remove (see ) (36A, Steering assembly):
- the steering box heat shield bolts,
145559
AIR CONDITIONING
Note:
Plugs must be fitted on the hoses to prevent
moisture from entering the system.
145500
145501
