10A-70
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine - gearbox assembly: Removal - Refitting
K9K, and 796
10A
-the steering box heat shield,
-the steering box bolts on the front axle subframe.
a Attach the steering rack to the body.
a Remove:

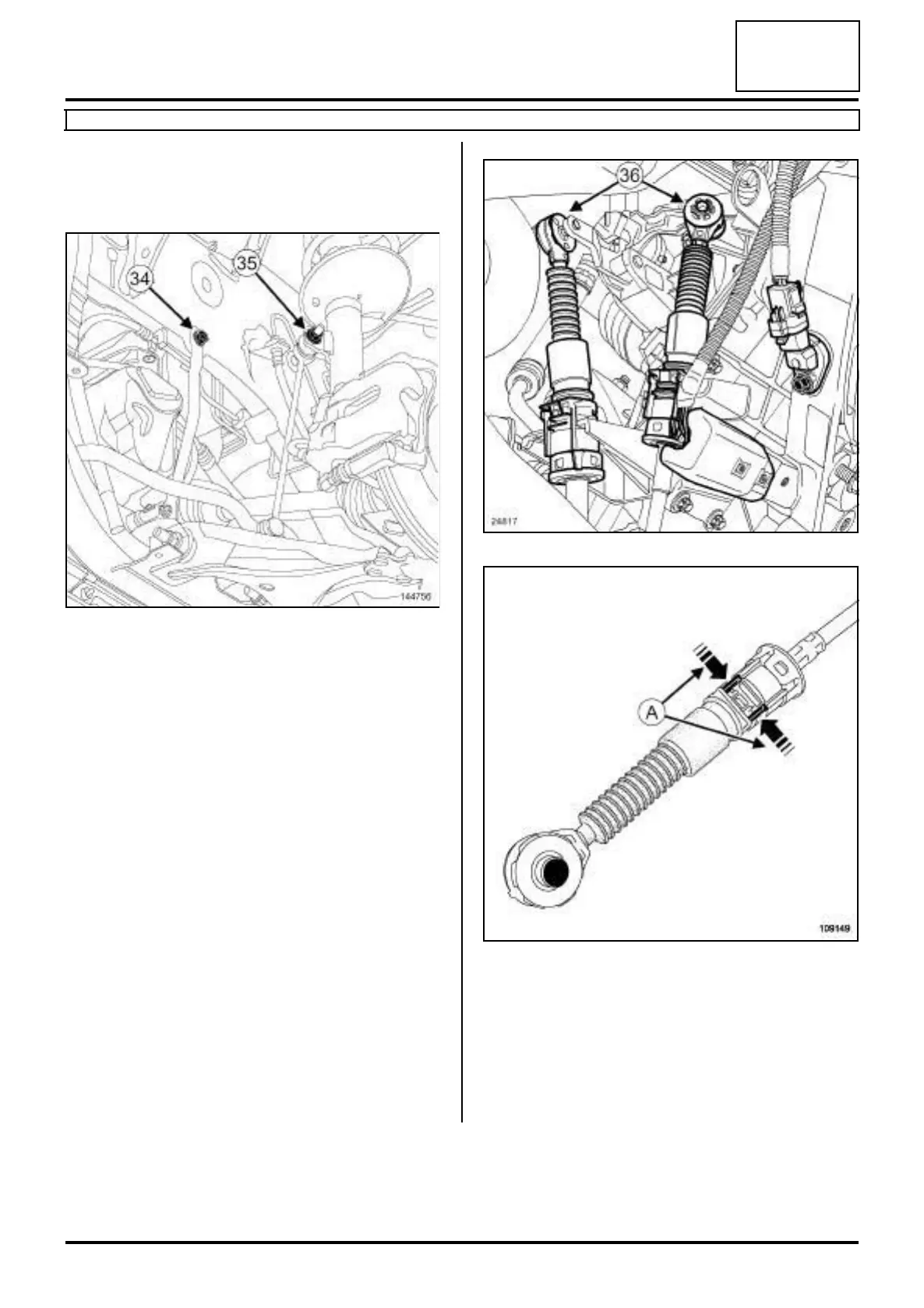

-the front axle subframe tie-rod upper bolts (34) ,
-the anti-roll bar tie rod upper bolts (35) .
a Remove:
-the front right-hand wheel driveshaft (see Front
right-hand driveshaft: Removal - Refitting)
(29A, Driveshaft),
-the front left-hand wheel driveshaft (see Front left-
hand driveshaft: Removal - Refitting) (29A,
Transmission).
a Pass the power-assisted steering low pressure pipe
over the gearbox cover.
a Unclip:
-the gear control cables on the gearbox at (36) us-
ing a screwdriver,
-the gear control cables from the sleeve stops by
pressing at (A) .
a Move the gear control cables away from the gear-
box.
144756
24817
109149
