85A-12
WIPING - WASHING
Rear screen wiper motor: Removal - Refitting
85A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Switch on the ignition.
a Move the wiper stalk from (0) to (1), then from (1) to
(0).
a Switch off the ignition.
a Remove:
-the rear screen wiper arm (see 85A, Wiping -
Washing, Rear screen wiper arm: Removal - Re-
fitting, page 85A-11) ,
-the tailgate trim (see Tailgate trim: Removal - Re-
fitting) (MR 389, 73A, Non-side opening elements
trim).
II - OPERATION FOR REMOVAL OF PART
CONCERNED

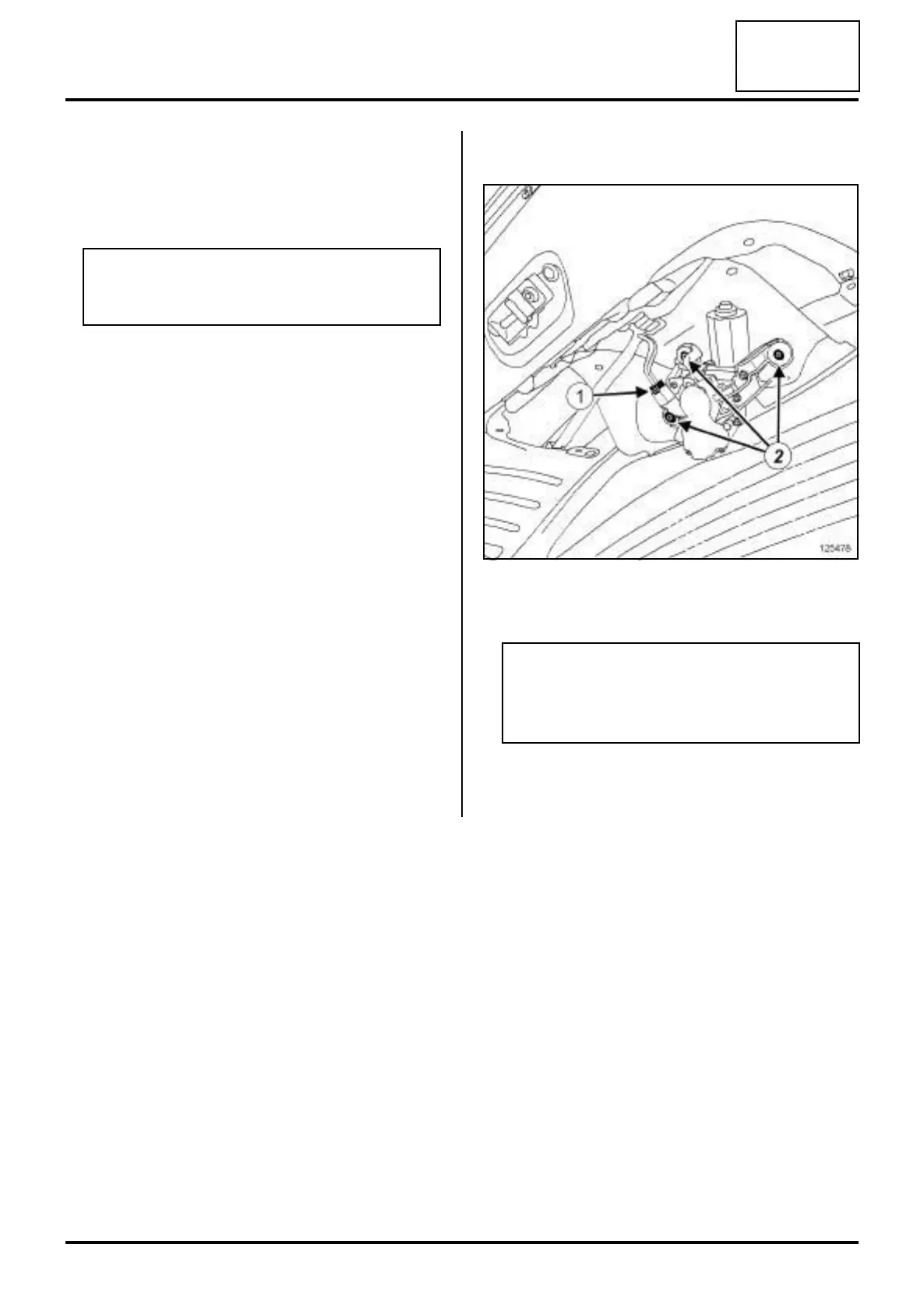

a Disconnect the supply connector (1) from the rear
screen wiper motor.
a Drill out the rivets (2) (see MR 400, 40A, General in-
formation).
a Remove the rear screen wiper motor.
WARNING
To ensure that the wiper arms can travel
smoothly, the wiper motor must be initialised.
125478
Note:
Take care not to damage the outer skin and door
box section with the drill bit. Retrieve the rivet
bodies in the door box section.
