Date Code 20171006 Instruction Manual SEL-400 Series Relays
PC Software
Settings Database Management and Drivers
Relay Database
The default relay database file already configured in QuickSet is Relay.rdb. This
database contains example settings files for the SEL products with which you can
use QuickSet.
Step 1. Open the Database Manager to access the database.
a. Click File in the QuickSet top toolbar.
b. Select and click the Database Manager menu item. You will see
a dialog box similar to Figure 2.2.
Step 2. If you wish, you can enter descriptions of the database and/or relay in
the Database Description and/or Settings Description text boxes.
A relay description would consist of special operating characteristics
that describe the relay settings including the protection scheme
settings and communications settings.
Step 3. Highlight one of the relays listed in Settings.
Step 4. Click Copy to create a new collection of relay settings.
QuickSet prompts you to provide a new name.
Copy/Move Relays Between Databases
You can create multiple relay databases with the Database Manager; these data-
bases are useful for grouping similar protection schemes or geographic areas.
Step 1. Select the Copy/Move Relays Between Settings Databases tab to
access the dialog box shown in Figure 2.3.
Step 2. Click the ellipsis next to Settings Database B to open a relay database.
Step 3. Navigate to the desired database location.
Step 4. Click Open.
For example, Relay2.rdb is the B relay database in Figure 2.3.
Step 5. Highlight a relay in the A database.

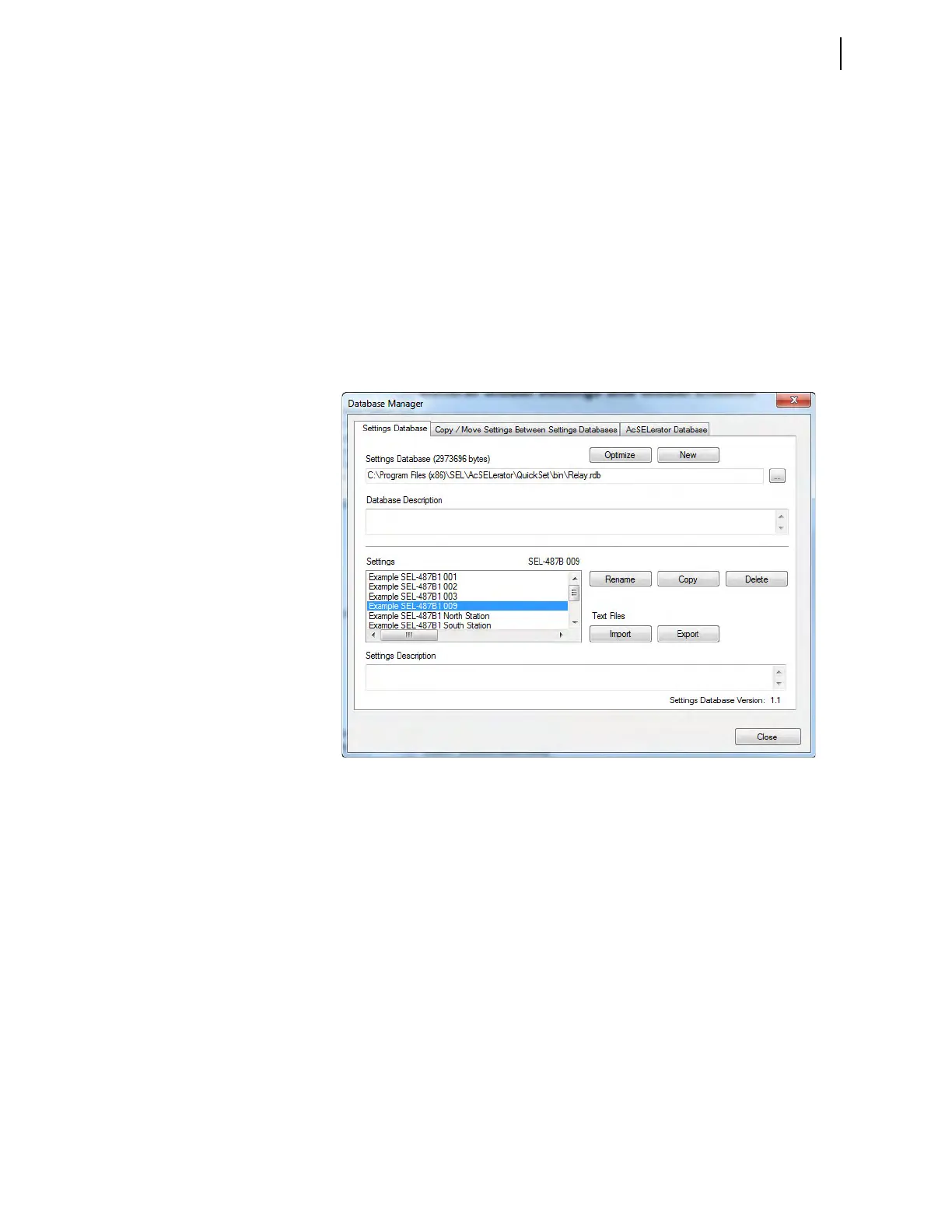

Figure 2.2 QuickSet Database Manager Relay Database
