Date Code 20171006 Instruction Manual SEL-400 Series Relays
PC Software
Analyze Events
Click Summary Data on the View menu to see event summary information and
to confirm that you are viewing the correct event. Figure 2.26 shows a sample
QuickSet Event Report Summary screen.

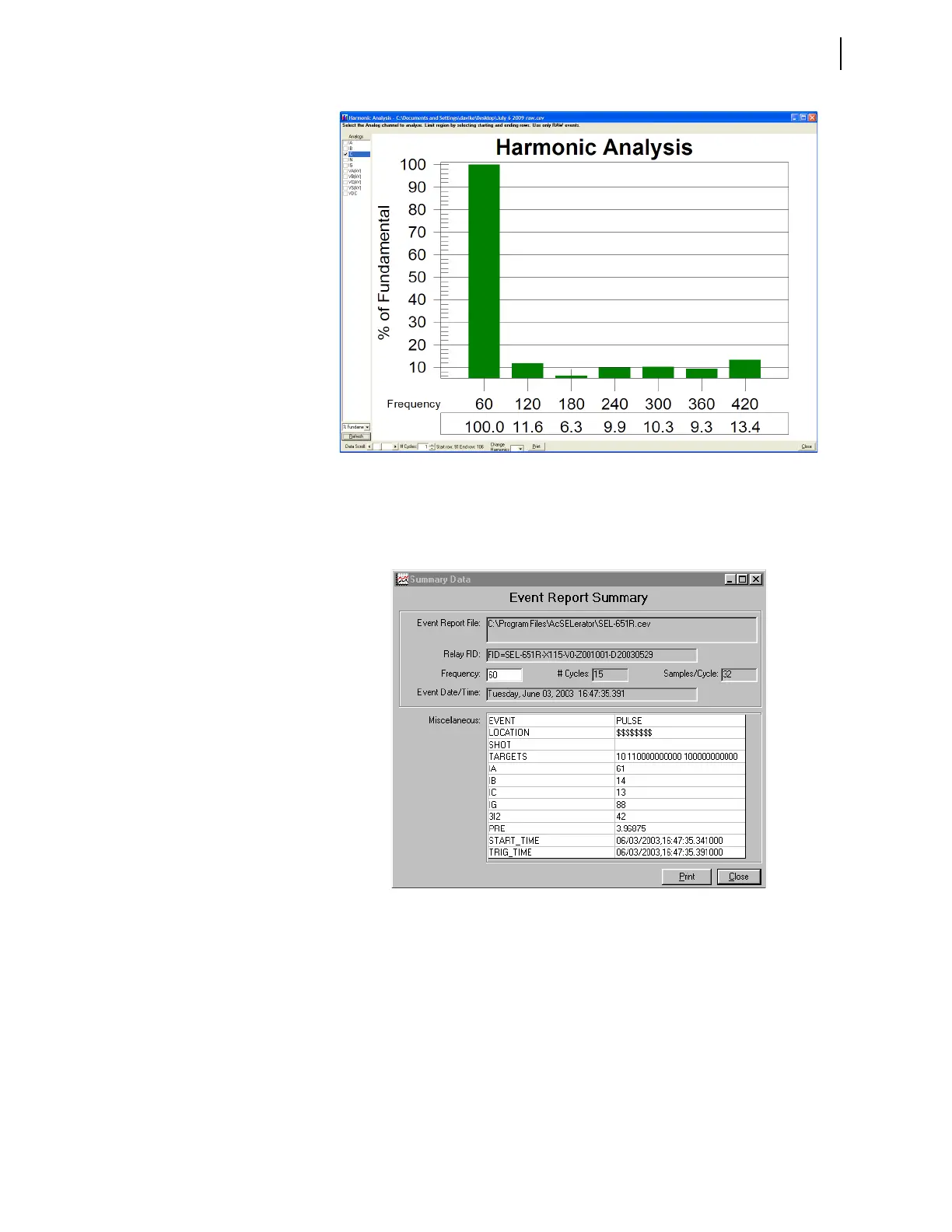

Figure 2.25 Sample Harmonic Analysis Event Waveform Screen
Figure 2.26 Sample Event Report Summary Screen
