Analyze Events
The software reads the selected event report and places the event report in the
first placeholder, as shown in Figure 2.30.
Notice that the actual event control line of the first events now appears at the bot-
tom of the screen and becomes the reference time position. All other events must
overlap the reference time position by at least one data point. The software posi-
tions the subsequent events relative to the position of the first event.

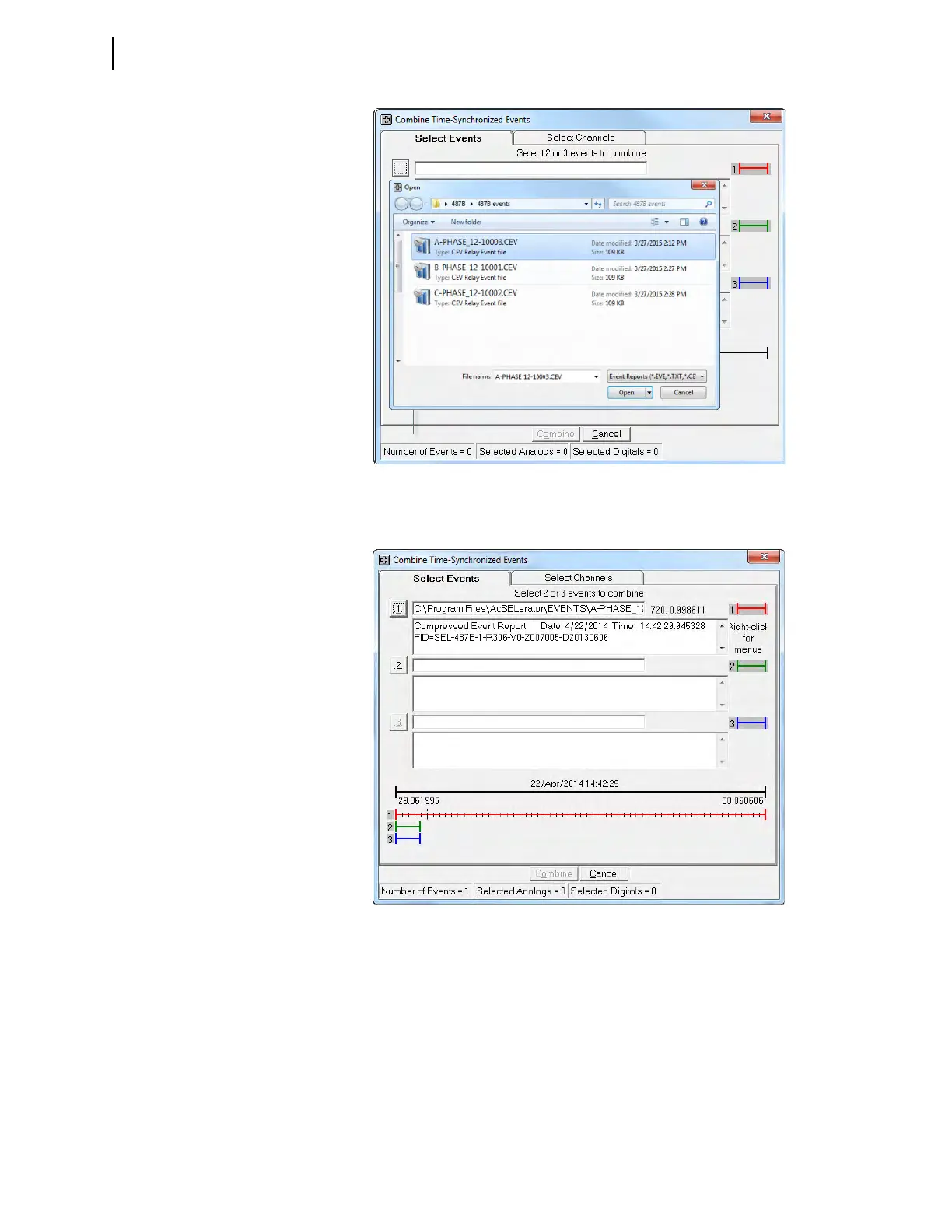

Figure 2.29 Selection of the First Event Report
Figure 2.30 First Event of the Analysis
