1.
Under INTERFACES: OUTPUTS, click the desired output.
2.
The Status window for the specific reference you selected will be displayed. Click the
Edit button in the bottom-left corner.
3.
The settings window for the chosen output will be displayed. Edit the field(s) as desired.
Editing output settings, method 2:
1. In the INTERFACES: OUTPUTS drop-down menu, click OUTPUTS, or one of the output cat-
egories (not indented to the right)
2.
In the Status window, click the GEAR button next to the desired output.
3.
The settings window for the chosen output will be displayed. Edit the field(s) as desired.
Note: A particular option card might have more than one setting that can be
adjusted. See "Option Cards Overview" on page10 for the settings of any par-
ticular output or card.
2.16.1 The Outputs Screen
SecureSync outputs deliver a time or frequency signal to a device that consumes this signal.
To access the Outputs screen in the Web UI:
1.

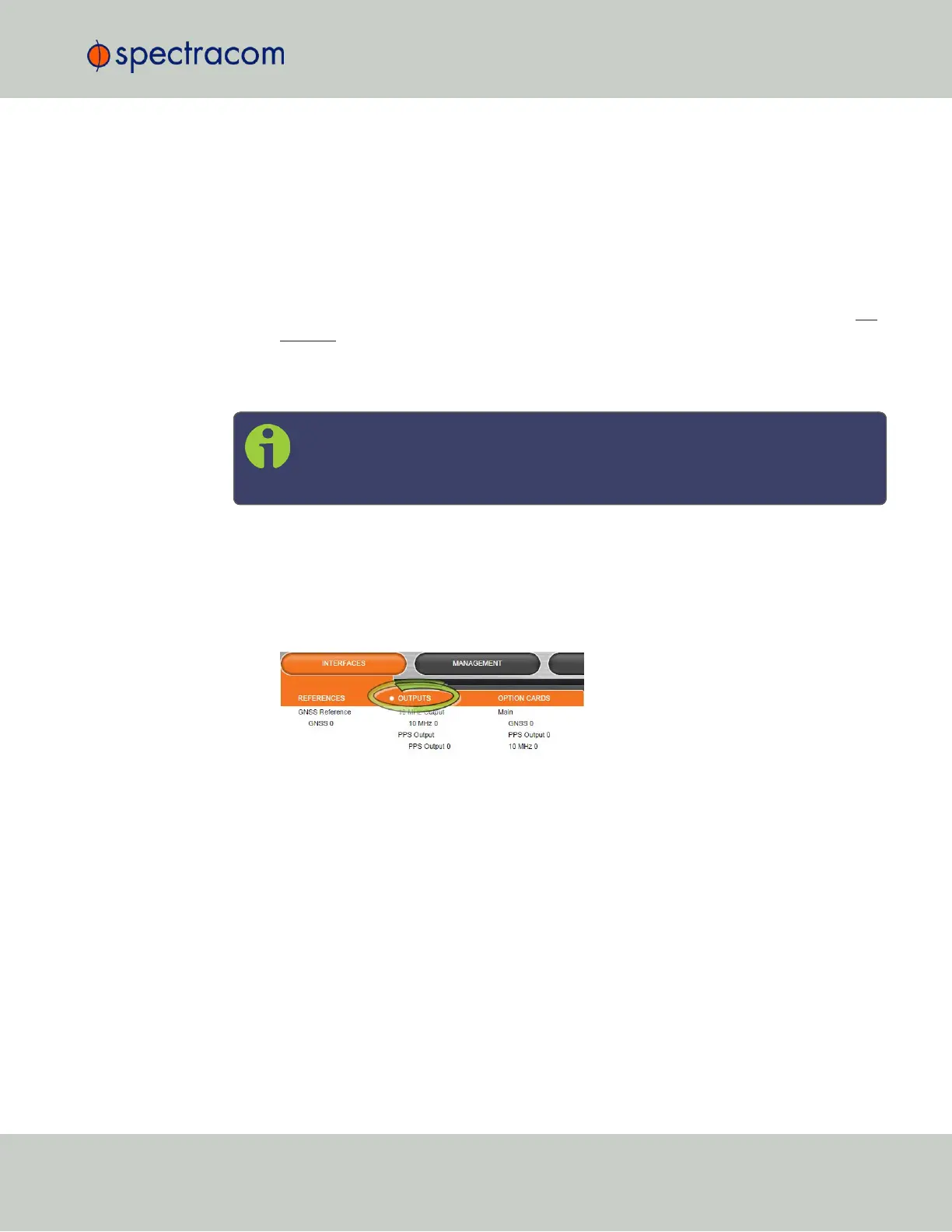

Navigate to INTERFACES and click on OUTPUTS (white on orange).
2.
The Outputs screen will display.
2.16 Configuring Outputs
CHAPTER 2 • SecureSync User Reference Guide Rev. 26
137
