Spectracom SecureSync User Manual

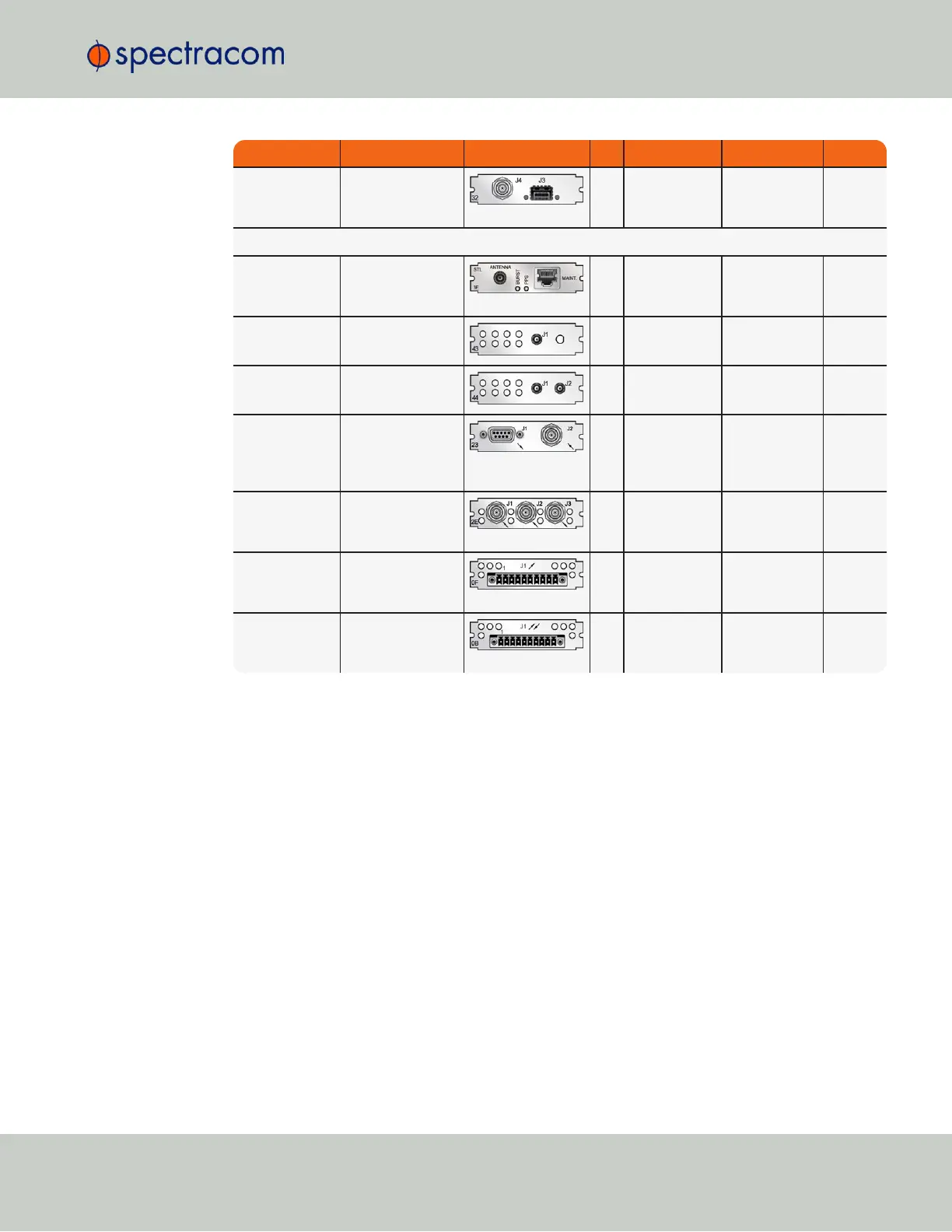

Function Web UI Name Illustration ID* Inputs Outputs Conn.'s
1Gb PTP:
Master only
Gb PTP
32
0 1PPS (1x
BNC), SFP
(1x)
BNC
(1x),
SFP (1x)
Communication and Specialty Cards
STL (Satellite
Time and Loca-
tion)
STL
3E
Satellite, Eth.
(Maintenance)
0 SMA,
RJ45
Single GNSS GNSS Receiver
43
1 0 SMA
Dual GNSS Dual GNSS
Receiver
44
2 0 SMA
(2x)
Event in, Broad-
cast out
Event Broadcast
23
BNC: Event
trigger
DB-9: Event
broadcast
DB-9 +
BNC
(1x
each)
Revertive
Selector ("Fail-
over")
n/a
2E
Frequ. or 1
PPS: (2x)
Frequ. or 1PPS
(1x)
BNC
(3x)
Alarm Relay
Out
Relay Output
0F
0 Relay Out (3x) Terminal
block,
10-pin
Bidir. Com-
munication
RS-485 Comm
0B
Yes Yes Terminal
block,
10-pin
1.5.2 Option Card Identification
There are several ways to identify which option card(s) are installed in your SecureSync unit:
a.
Using the Web UI, navigate to the INTERFACES > OPTION CARDS drop-down menu, and
compare the list displayed in your UI with the table "Option cards identification" on
page10.
b.
If you have physical access to your SecureSync unit, inspect its rear panel, and compare
the 2-digit ID number printed in the lower left-hand corner on each option card with the
table below.
1.5.2.1 Option Card Identification by ID/Part Number
If you are looking for information specific to a particular option card, the table below can help
you find this information in this User Reference Guide.
1.5 Option Cards
CHAPTER 1 • SecureSync User Reference Guide Rev. 26
13

Spectracom SecureSync Specifications

General

Model	SecureSync
Time Reference	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Disciplines	GNSS, IRIG, PTP, NTP, SyncE
Inputs	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Outputs	NTP, PTP, 1PPS, IRIG
Protocols	PTP, NTP, SNMP, SSH, HTTPS
Form Factor	1U Rack-mount
Redundancy	Optional redundant power supply
Security Features	Password protection, access control lists, SSH, HTTPS, SNMPv3, NTP authentication, PTP authentication
Power Supply	100-240 VAC, 50-60 Hz
Operating Temperature	0°C to +50°C
Dimensions	44.45 mm (H) x 482.6 mm (W)
