3.
Click on the GEAR button next to the input or output you wish to configure (as verified in

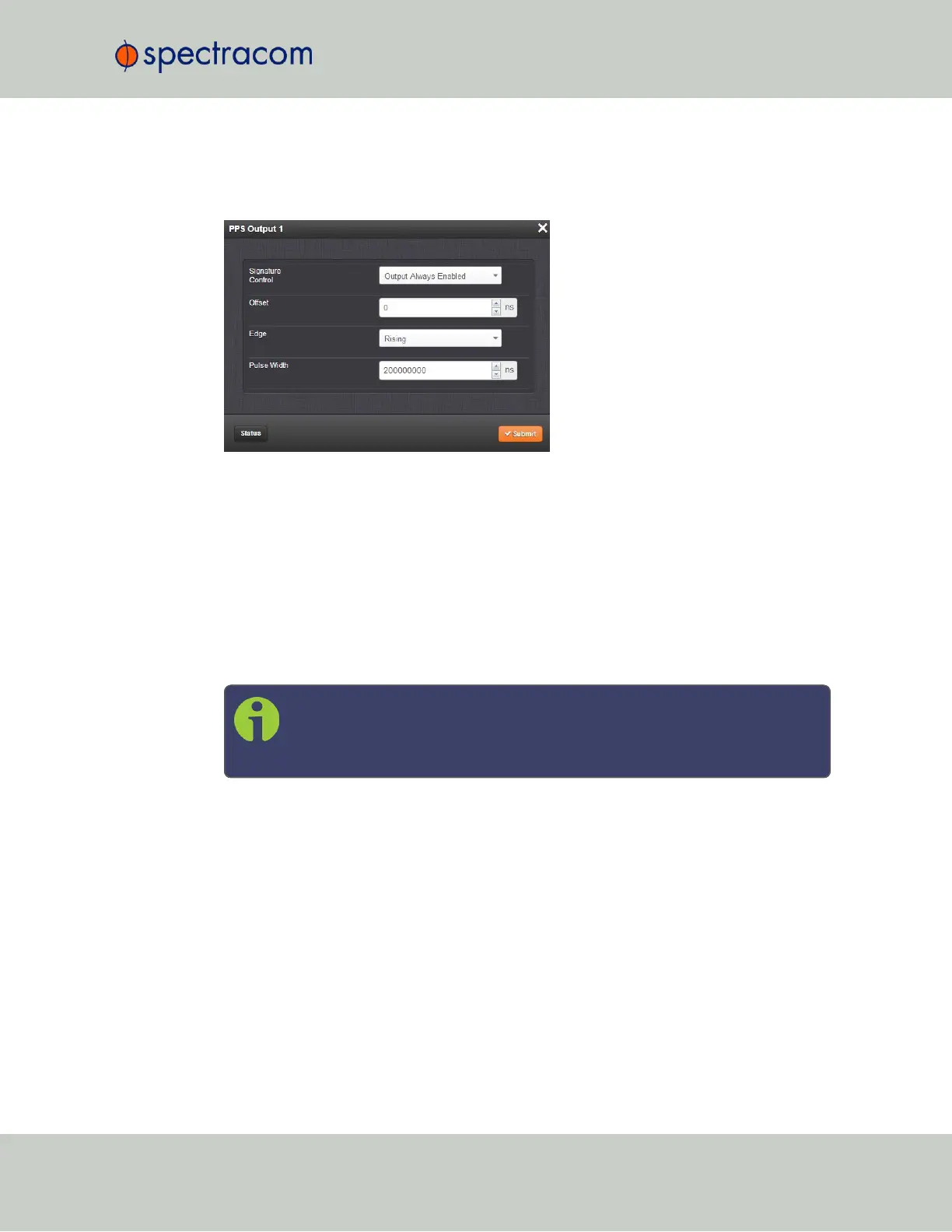

Step1 of this procedure). The Edit window of the input or output opens:
4.
Information about the configurable settings can be found in the corresponding option
card section, see "Option cards listed by their ID number" on page14.
5.2.1.4 Viewing an Input/Output Signal State
To view if an input or output is currently enabled or disabled, go to the option card’s Status
Summary panel:
1.
Identify the name of the option card, (e.g., PPSOUT, 4-BNC), and the name of the input
or output you want to configure (e.g., PPS Output 1).
Note: If you have only one input or output of any type, SecureSync will
number that input or output0. Additional inputs or outputs will be
numbered1 or above.
2.
Navigate to the INTERFACES > OPTION CARDS drop-down menu, and click the list entry
