5.2.7.3 Alarm Relay Out [1204-0F]
The Model 1204-0F Alarm Relay Option Card provides three (3) configurable relay outputs for
the SecureSync platform.
Alarm Relay Out [1204-0F]: Specifications
Inputs/Outputs: (3) three contact relay connections (NC, common, NO)
Signal Type and Connector: Terminal block
Contacts switch under max. load of 30VDC, 2A
Contacts rated to switch: 220VDC
Nominal Switch Capacity: 30V, 2A
Maximum switch voltage: 220VDC
Maximum switch power: 60W
Maximum switch current: 2A
Breakdown voltage: 1000VDC between contacts
Switch time: 4ms, max.
Maximum Number of Cards: 1
Ordering Information: 1204-0F: Relay Outputs Module

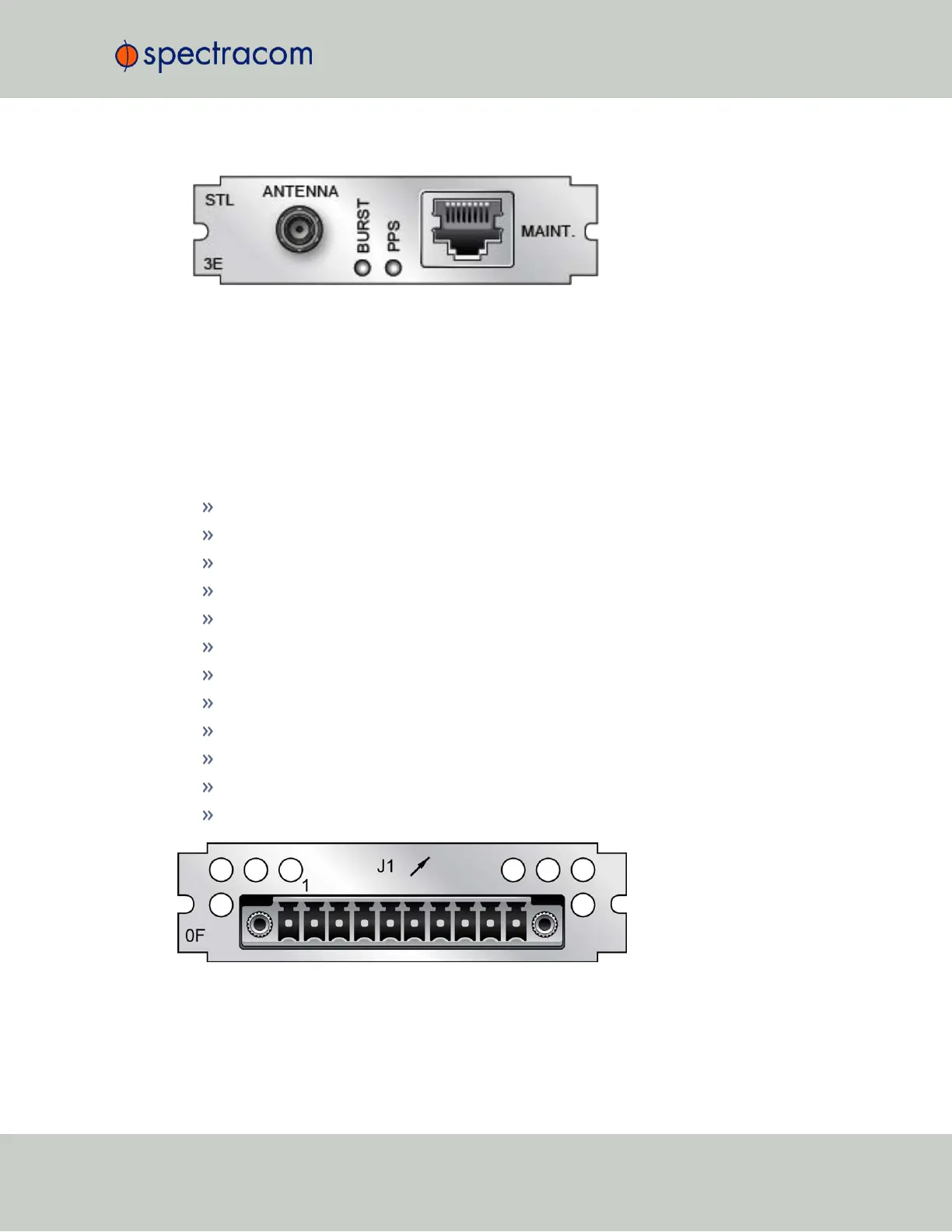

Figure 5-59: Model 1204-0F option card rear plate
