5.3 Command-Line Interface
A terminal emulation program is used to emulate a video terminal, so as to access SecureSync's
CLI (Command-Line Interface) remotely via a serial cable. This may be required if no other
means of remotely accessing SecureSync are available, for example if Ethernet ports are used
otherwise or have been disabled (e.g., for security reasons).
5.3.1 Setting up a Terminal Emulator
If no other means are available to access SecureSync, a terminal emulation program can be
used to carry out certain configuration changes by accessing SecureSync's CLI (command-line
interface) via a serial port connection. An application example for this scenario is to enable a
network port so that the SecureSync Web UI can be used. While it is also possible to retrieve
selected logs, a terminal emulator does not replace the SecureSync Web UI.
Spectracom does not distribute or support its own terminal emulator, and newer Microsoft oper-
ating systems no longer include HyperTerminal. However, there are several third-party open-
source programs available, such as TeraTerm
®
or PuTTY
®
. The example below illustrates the use
of TeraTerm. The setup procedure is similar when using other terminal emulation programs.
Required tools and parts:
I.
A standard, one-to-one pinned RS-232 serial cable; this cable has one male and one
female DB-9 connector. Do NOT use a NullModem cable. If you do not have a stand-
ard RS-232 cable at hand, follow the pin-out configuration described below when build-
ing a cable. It is required to wire at least pins number 2, 3, and 5.

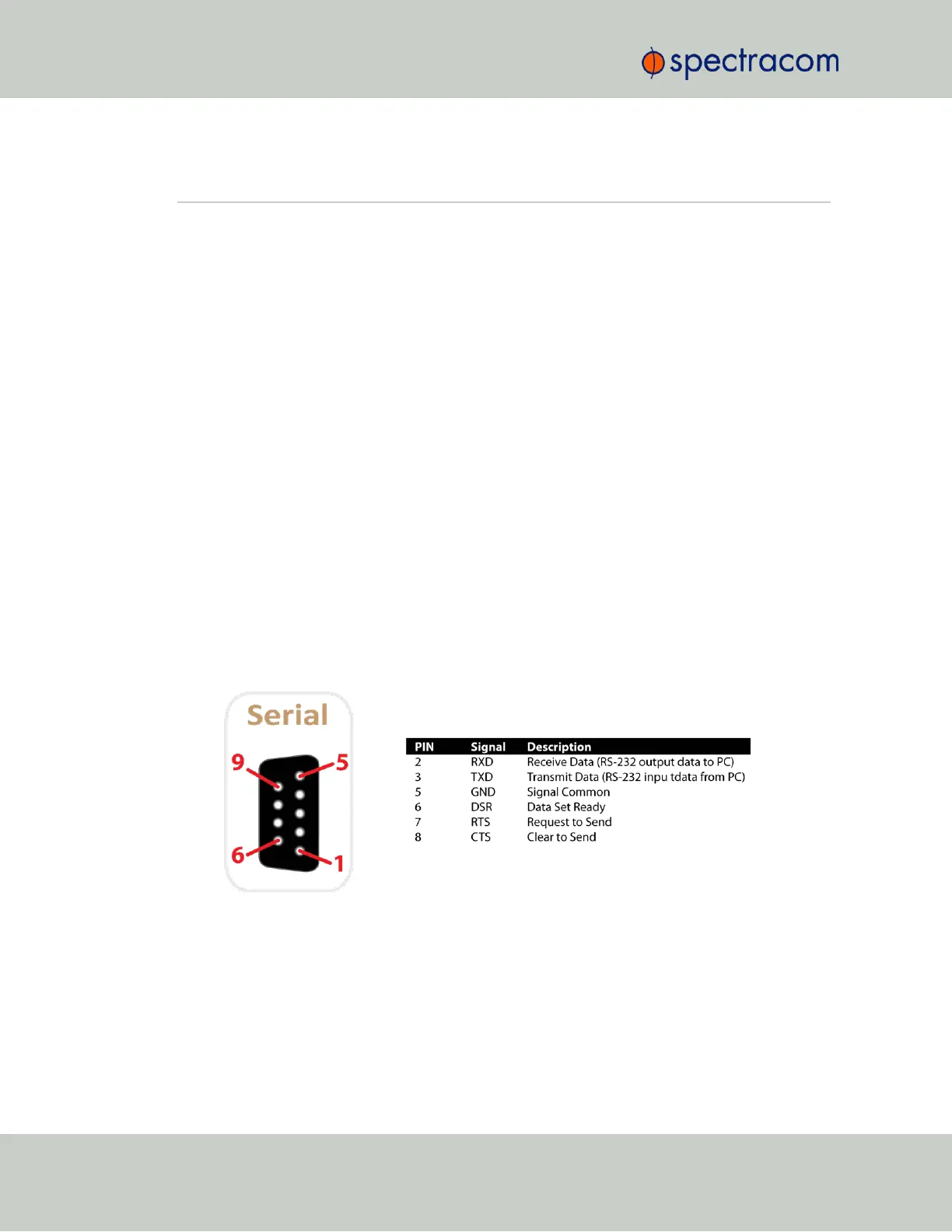

Figure 5-65: Serial port pin-out
II.
Personal Computer with terminal emulator program installed.
512 SecureSync User Reference Guide
APPENDIX
