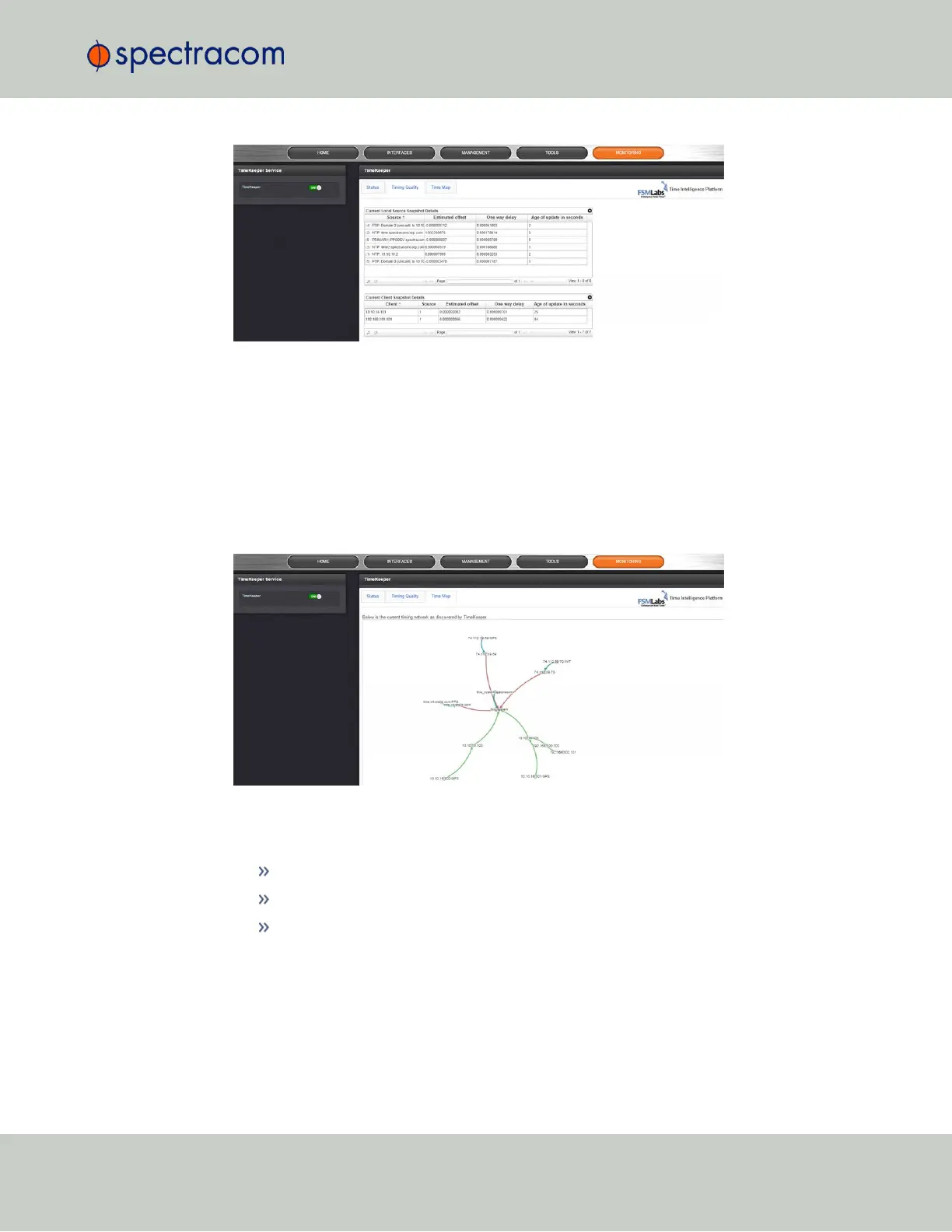

Figure 3-5: TimeKeeper Timing Quality tab
3.6.7.4 TKL "Time Map" Tab
Under the Time Map tab, TimeKeeper TKL visualizes the structure of the timing network envir-
onment, including all time sources, and other clients found on the network. Particularly with com-
plex networks, this visualization tool can be of assistance when it comes to identifying
architectural or accuracy problems.
Figure 3-6: TimeKeeper Time Map tab
The connecting lines are color-coded:
Red: NTP
Green: PTP
Blue: direct
Drag any node or time source with your computer mouse to adjust the graph.
Use the mouse wheel to zoom in or out.
Scroll to the bottom of the page to see additional features, such as static display and hiding
labels.
3.6 Managing TimeKeeper
CHAPTER 3 • SecureSync User Reference Guide Rev. 26
233

Spectracom SecureSync Specifications

General

Model	SecureSync
Time Reference	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Disciplines	GNSS, IRIG, PTP, NTP, SyncE
Inputs	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Outputs	NTP, PTP, 1PPS, IRIG
Protocols	PTP, NTP, SNMP, SSH, HTTPS
Form Factor	1U Rack-mount
Redundancy	Optional redundant power supply
Security Features	Password protection, access control lists, SSH, HTTPS, SNMPv3, NTP authentication, PTP authentication
Power Supply	100-240 VAC, 50-60 Hz
Operating Temperature	0°C to +50°C
Dimensions	44.45 mm (H) x 482.6 mm (W)
