Spectracom SecureSync User Manual

5.5.3 IRIG B Output
The IRIG B Time Code description follows.

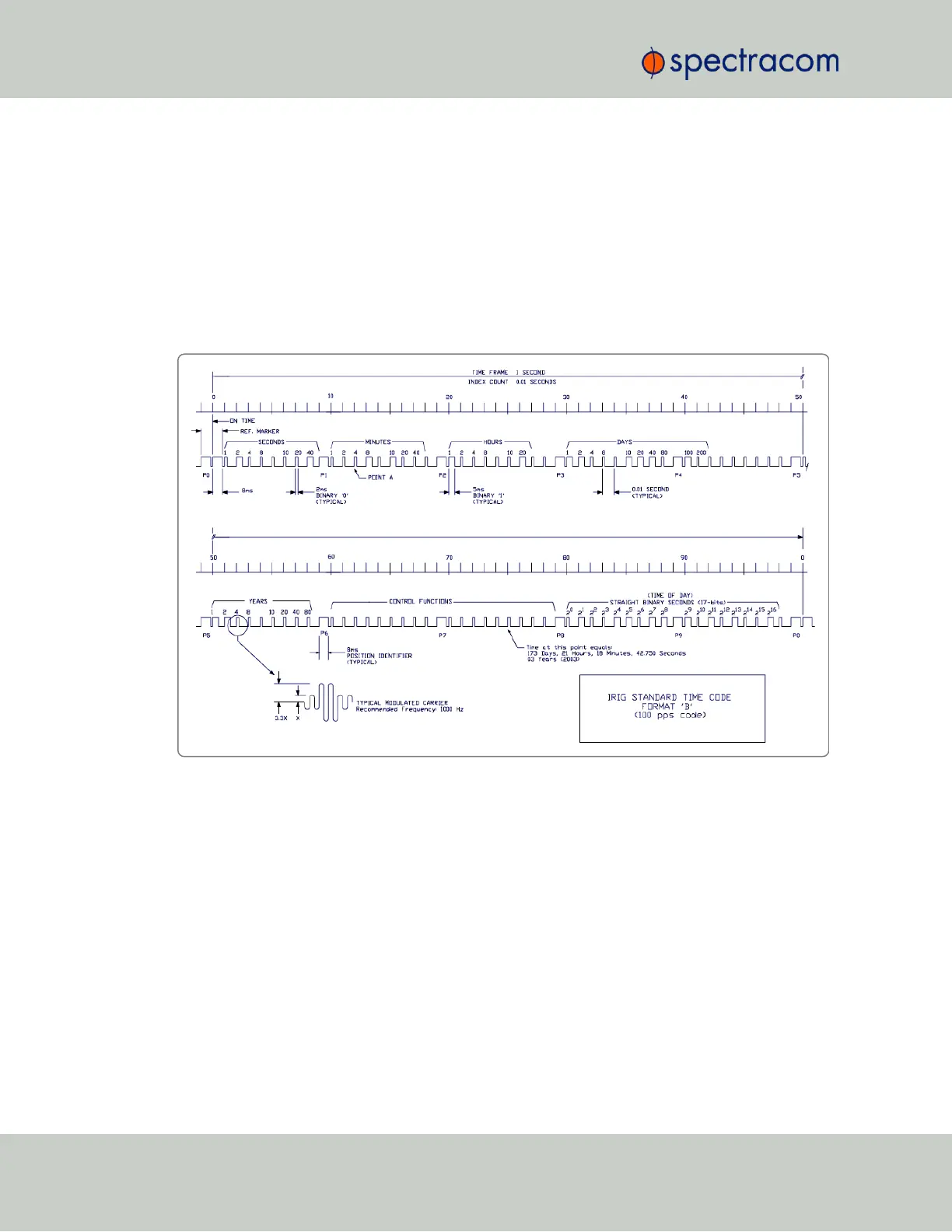

Figure 5-66: IRIG B time code description
The IRIG B code contains the Binary Coded Decimal (BCD) time of year, Control Function (CF)
field and the Straight Binary Seconds time of day. The following figure illustrates the IRIG B
data structure. The BCD time of year provides the day of the year, 1-366, and the time of day
including seconds. The hour of the day is expressed in 24 hour format. The SBS time is the num-
ber of seconds elapsed since midnight. The Control Function field contains year information
and a time synchronization status bit.
548 SecureSync User Reference Guide
APPENDIX

Spectracom SecureSync Specifications

General

Model	SecureSync
Time Reference	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Disciplines	GNSS, IRIG, PTP, NTP, SyncE
Inputs	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Outputs	NTP, PTP, 1PPS, IRIG
Protocols	PTP, NTP, SNMP, SSH, HTTPS
Form Factor	1U Rack-mount
Redundancy	Optional redundant power supply
Security Features	Password protection, access control lists, SSH, HTTPS, SNMPv3, NTP authentication, PTP authentication
Power Supply	100-240 VAC, 50-60 Hz
Operating Temperature	0°C to +50°C
Dimensions	44.45 mm (H) x 482.6 mm (W)
