Spectracom SecureSync - Programmable Square Wave out [1204-17]

The Web UI list entry for this card is named: Prog Freq Out, Sine [or: TTL, or: RS-485, respect-
ively].
The connector numbers are: J1…J4 [J1 for the RS-485 model].
Note: SecureSync starts numbering I/O ports with 0 (only 1PPS and 10MHz out-
puts start at1, because of the built-in outputs).

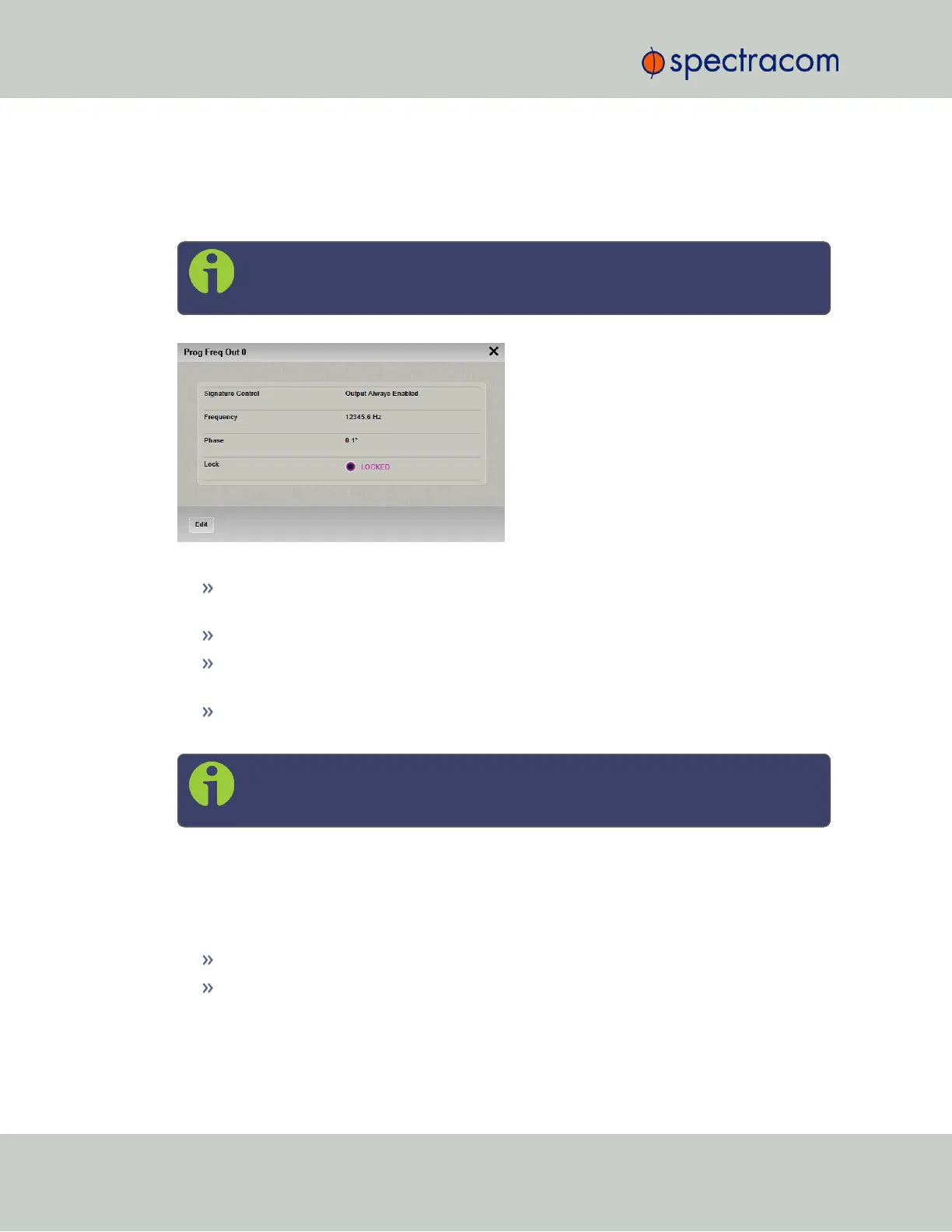

The Status window displays the following settings:
Signature Control: Controls when the output will be present. See also: "Signature Con-
trol" on page141.
Frequency: Indicates the configured frequency.
Phase: Displays the configured phase offset (e.g., to account for delays caused by dif-
ferent cable lengths, or other latencies).
Lock: Shows, if the output frequency is locked to the SecureSync system-disciplined oscil-
lator.
Note: Even if an output frequency status is LOCKED, it will not be available at the
output port, if the Signature Control for that port has been DISABLED.
5.2.3.6 Programmable Square Wave Out [1204-17]
The Model 1204-17 Square Wave output Option Card provides four programmable square
wave outputs for the SecureSync platform.
Inputs/Outputs: (4) Programmable square wave outputs
Signal Type and Connector: TTL (BNC)
