To visually identify an option card installed in your unit, or to obtain an overview which option
cards are available for SecureSync, see "Option Cards Overview" below.
To obtain detailed information on a specific option card, using its ID number, see "Option Card
Identification" on page13.
To locate option card topics in this manual by their heading or functionality, see "Option Cards"
on page345. This Chapter also includes information on field installation and Web UI func-
tionality.
To visually identify a connector type, see "Option Card Connectors" on page16.
1.5.1 Option Cards Overview
The table below lists all SecureSync option cards available at the time of publication of this doc-
ument, sorted by their function.
The table column (see table below) WebUI Name refers to the names under which the cards
installed in a SecureSync unit are listed in the INTERFACES > OPTION CARDS drop-down menu.
Detailed specifications and configuration assistance for every card can be found in the
APPENDIX. To quickly access the APPENDIX topic for your option card(s), you may use the
hyperlinks in table "Option cards listed by their ID number" on page14.
Note: * Every option card has a unique 2-digit ID number located on its cover
plate, and in the center column of the table below. The complete Spectracom Part
Number for option cards is 1204-xx (e.g., 1204-18).

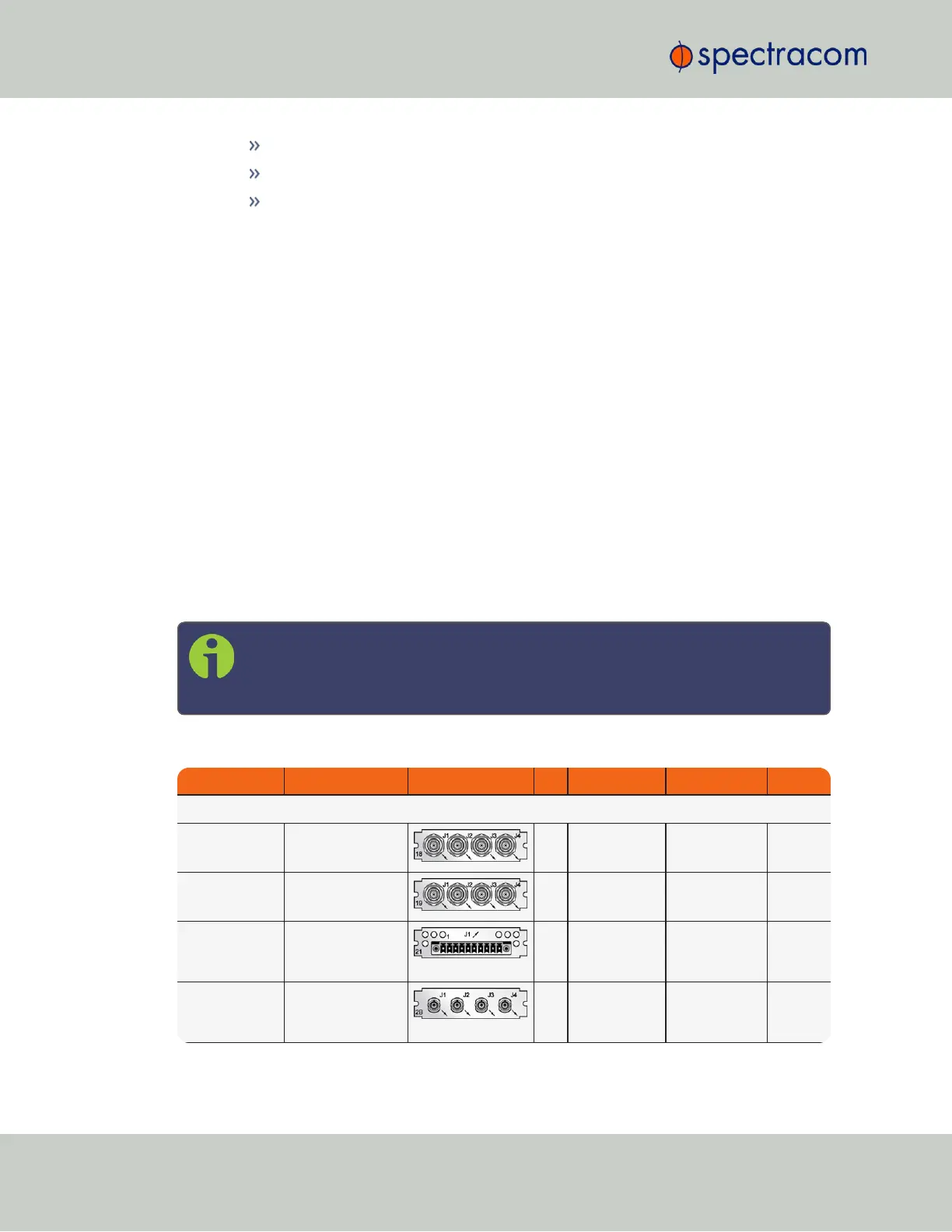

Table 1-3:
Option cards identification
Function Web UI Name Illustration ID* Inputs Outputs Conn.'s
Time and Frequency Cards
Quad 1PPS out
(TTL)
1PPS Out BNC
18
0 1PPS, TTL (4x) BNC
(4x)
Quad 1PPS out
(10 V)
1PPS Out 10V
19
0 1PPS, 10 V
(4x)
BNC
(4x)
Quad 1PPS out
(RS-485)
1PPS Out, RS-485
21
0 1PPS, RS-485
(4x)
Terminal
block,
10-pin
Quad 1PPS out
(fiber optic)
1PPS Out, Fiber
2B
0 1PPS, F/O
(4x)
ST Fiber
optic
(4x)
10
CHAPTER 1 • SecureSync User Reference Guide Rev. 26
