Spectracom SecureSync User Manual

Note: * Every option card has a 2-digit identification (ID) number that can be
found in the corner of its cover plate, and in the table below. The ID number is
comprised of the two center digits of your option card's Spectracom Part Num-
ber: 1204-0180-0600.

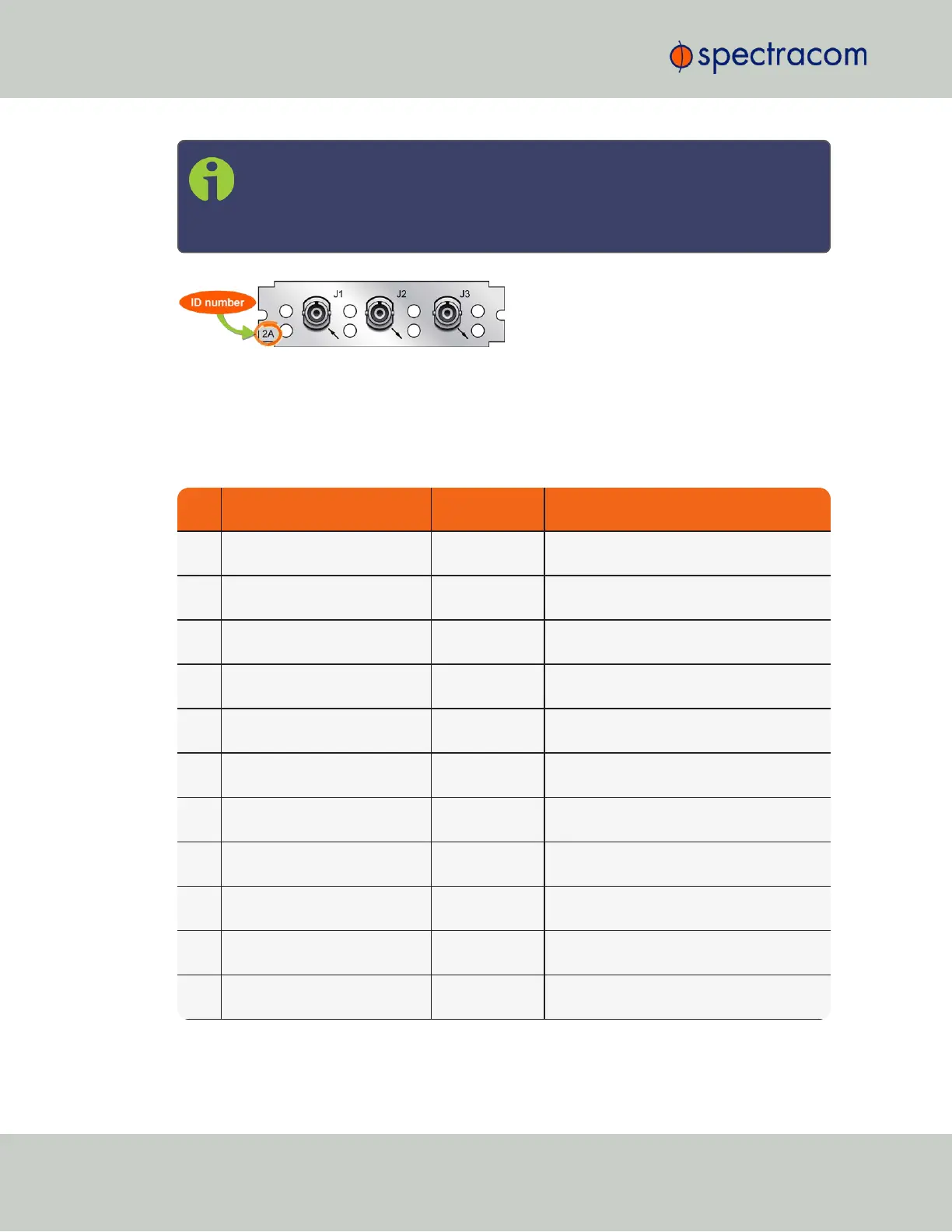

Figure 1-4: Option Card ID number
The table lists all option cards available at the publication date of this documentation, sorted by
their ID number. Locate the option card ID number on its cover plate, and follow the cor-
responding hyperlink in the right-hand column.
Table 1-4:
Option cards listed by their ID number
Card
ID*
Card Name Name in UI See ...
01 1PPS/freq input (TTL levels) mod-
ule
1PPS/Frequency
BNC
"1PPS In/Out, 10MHz In [1204-01, -
03]" on page377
02 ASCII Time Code module (RS-
232)
ASCII Timecode
RS-232
"ASCII Time Code In/Out [1204-02, -
04]" on page455
03 1PPS/freq input (RS-485 levels)
module
1PPS/Frequency
RS-485
"1PPS In/Out, 10MHz In [1204-01, -
03]" on page377
04 ASCII Time Code module (RS-
485)
ASCIITimecode
RS-485
"ASCII Time Code In/Out [1204-02, -
04]" on page455
05 IRIG module, BNC (1 input, 2
outputs)
IRIG In/Out
BNC
"IRIG In/Out [1204-05, -27]" on
page415
06 Gigabit Ethernet module (3 ports) Gb Ethernet
"Gigabit Ethernet [1204-06]" on
page467
08 5 MHz output module (3 outputs) 5 MHz Out
"Frequency Out [1204-08, -1C, -26, -
38]" on page384
09 T1-1.544 (75 Ω) or E1-2.048 (75
Ω) module
E1/T1 Out BNC
"T1/E1 Out [1204-09, -0A]" on
page404
0A T1-1.544 (100 Ω) or E1-2.048
(120 Ω) module
E1/T1 Out Ter-
minal
"T1/E1 Out [1204-09, -0A]" on
page404
0B Bidirectional Communication
module
RS-485 Comm
"Bi-Directional Communication, RS-485
[1204-0B]" on page509
0F Alarm module Relay Output
"Alarm Relay Out [1204-0F]" on
page495
14
CHAPTER 1 • SecureSync User Reference Guide Rev. 26
1.5 Option Cards

Spectracom SecureSync Specifications

General

Model	SecureSync
Time Reference	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Disciplines	GNSS, IRIG, PTP, NTP, SyncE
Inputs	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Outputs	NTP, PTP, 1PPS, IRIG
Protocols	PTP, NTP, SNMP, SSH, HTTPS
Form Factor	1U Rack-mount
Redundancy	Optional redundant power supply
Security Features	Password protection, access control lists, SSH, HTTPS, SNMPv3, NTP authentication, PTP authentication
Power Supply	100-240 VAC, 50-60 Hz
Operating Temperature	0°C to +50°C
Dimensions	44.45 mm (H) x 482.6 mm (W)
