Spectracom SecureSync User Manual

Clicking on any of the line items will open a status screen, providing real-time information on
the selected interface e.g., availability, performance data and events history.
To configure settings for the selected interface, click the GEAR icons or buttons provided on
most of the status screens. Icons like the INFO symbol provide access to more detailed status
information and history data.
Note: Many of the interfaces can be accessed through different menu items e.g.,
an optional output will be available under the OPTION CARDS menu and the
OUTPUTS menu.

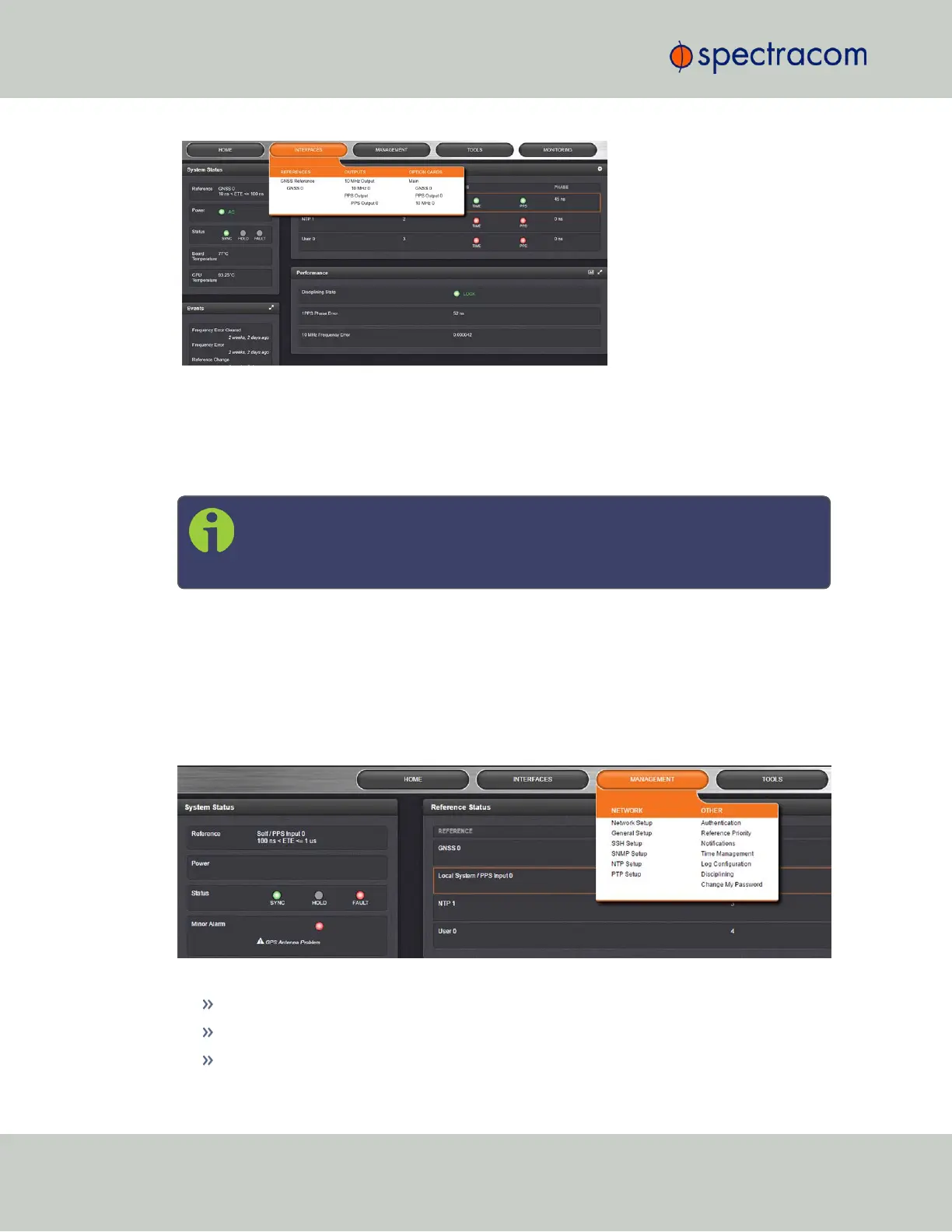

The headings of each of the INTERFACES drop-down menus (white on orange) open overview
status screens for the respective menu items.
1.6.3 The Configuration MANAGEMENT Menu
The MANAGEMENT menu on the Web UI's Main screen provides access to SecureSync's con-
figuration screens and settings.
On the left side, under NETWORK, the following standard setup screens can be found:
Network Setup
General Setup
HTTPS Setup
20
CHAPTER 1 • SecureSync User Reference Guide Rev. 26
1.6 The SecureSync Web UI

Spectracom SecureSync Specifications

General

Model	SecureSync
Time Reference	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Disciplines	GNSS, IRIG, PTP, NTP, SyncE
Inputs	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Outputs	NTP, PTP, 1PPS, IRIG
Protocols	PTP, NTP, SNMP, SSH, HTTPS
Form Factor	1U Rack-mount
Redundancy	Optional redundant power supply
Security Features	Password protection, access control lists, SSH, HTTPS, SNMPv3, NTP authentication, PTP authentication
Power Supply	100-240 VAC, 50-60 Hz
Operating Temperature	0°C to +50°C
Dimensions	44.45 mm (H) x 482.6 mm (W)
