Spectracom SecureSync User Manual

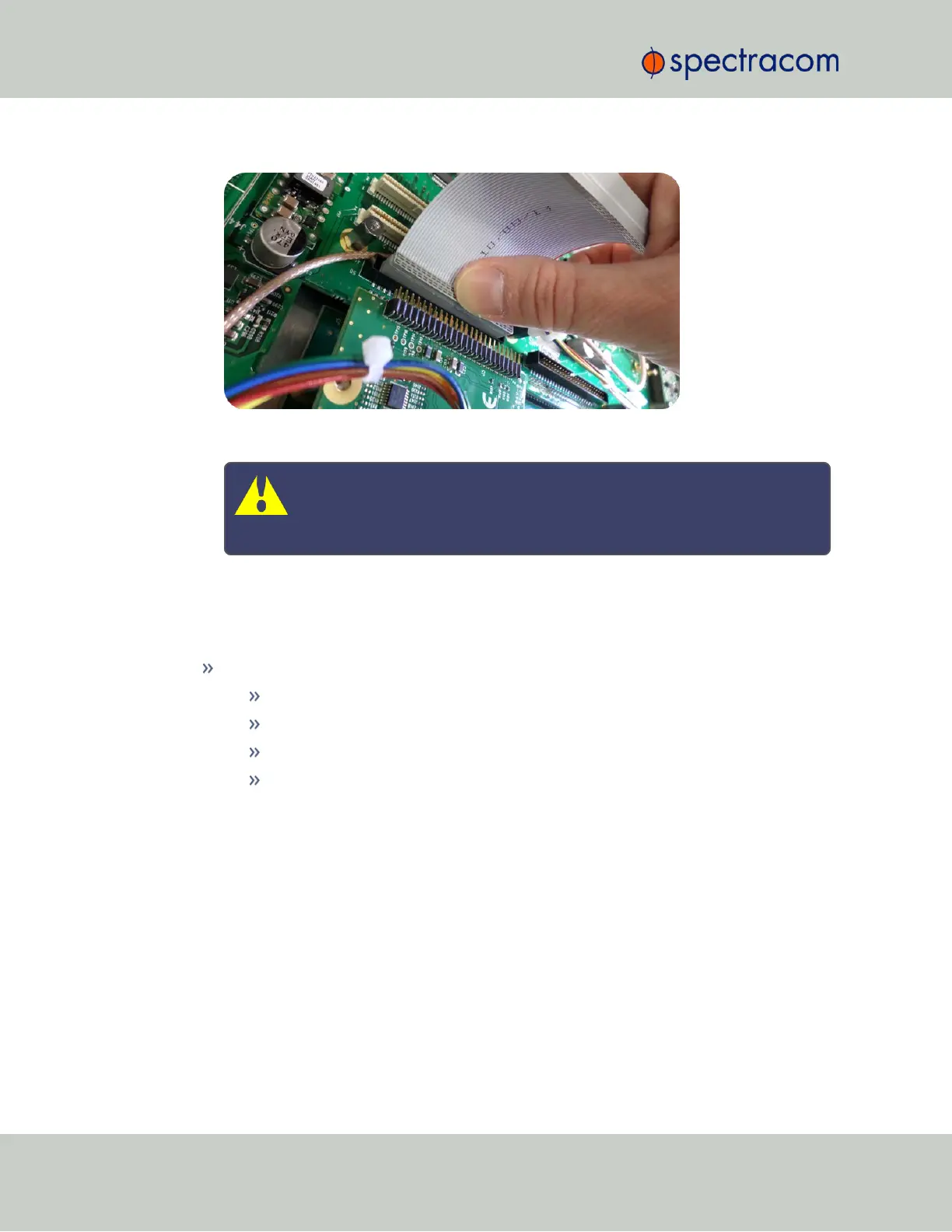

Figure 5-7: Ribbon cable installation
Caution: Ensure that the ribbon cable is aligned and fastened properly to
all pins on the connector of the card. Otherwise, damage to equipment
may result during power up.
5.2.2.10 [7]: Frequency Output Cards: Wiring
Additional installation instructions for the following option card models:
Frequency Output cards:
1MHz (PN 1204-26)
5MHz (PN 1204-08)
10MHz (PN 1204-0C)
10 MHz (PN 1204-1C)
For the cable installation, follow the steps detailed below:
a.
Install the coax cable(s) onto the main PCB, connecting them to the first available open
connectors, from J1… J4. See figure below:
360 SecureSync User Reference Guide
APPENDIX

Spectracom SecureSync Specifications

General

Model	SecureSync
Time Reference	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Disciplines	GNSS, IRIG, PTP, NTP, SyncE
Inputs	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Outputs	NTP, PTP, 1PPS, IRIG
Protocols	PTP, NTP, SNMP, SSH, HTTPS
Form Factor	1U Rack-mount
Redundancy	Optional redundant power supply
Security Features	Password protection, access control lists, SSH, HTTPS, SNMPv3, NTP authentication, PTP authentication
Power Supply	100-240 VAC, 50-60 Hz
Operating Temperature	0°C to +50°C
Dimensions	44.45 mm (H) x 482.6 mm (W)
