Spectracom SecureSync User Manual

Should, however, the above-mentioned higher threshold value no longer be exceeded, the unit
will remain in the 1200-second flywheel mode until either (a) the lower threshold value is no
longer exceeded, or (b) the 1200-second flywheel period expires. In both cases the PPS status
light will turn green again.
Smart reference monitoring is OFF by default. To turn it ON:
1.
Navigate to MANAGEMENT > OTHER: Disciplining.
2.

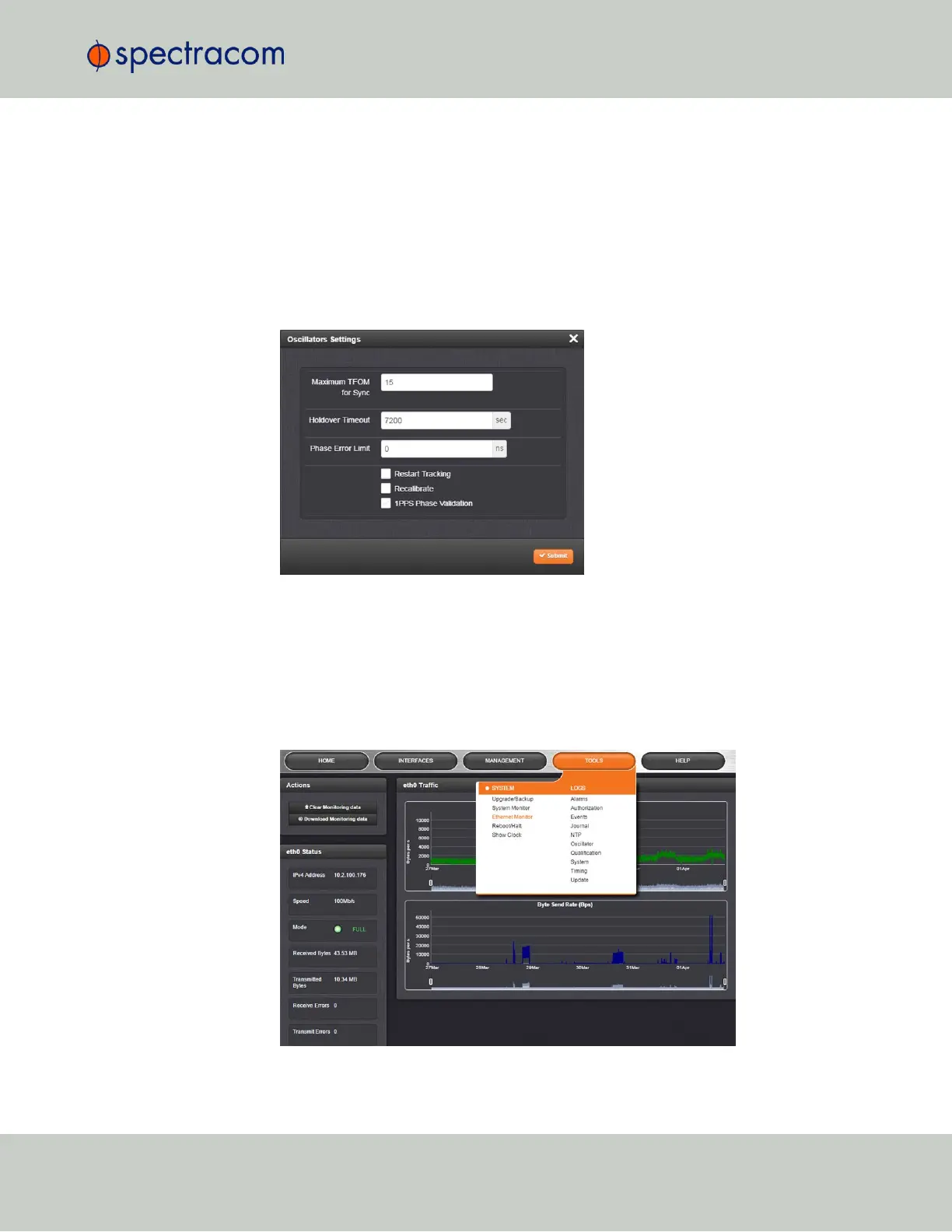

In the Status panel on the left, click the GEARicon. The Oscillator Settings window will
open.
3.
Check the box next to 1PPS Phase Validation and click Submit.
4.5.1.5 Ethernet Monitoring
To monitor Ethernet status and traffic:
1.
Navigate to TOOLS > SYSTEM: Ethernet Monitor. The Ethernet monitoring screen opens:
4.5 Quality Management
CHAPTER 4 • SecureSync User Reference Guide Rev. 26
283

Spectracom SecureSync Specifications

General

Model	SecureSync
Time Reference	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Disciplines	GNSS, IRIG, PTP, NTP, SyncE
Inputs	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Outputs	NTP, PTP, 1PPS, IRIG
Protocols	PTP, NTP, SNMP, SSH, HTTPS
Form Factor	1U Rack-mount
Redundancy	Optional redundant power supply
Security Features	Password protection, access control lists, SSH, HTTPS, SNMPv3, NTP authentication, PTP authentication
Power Supply	100-240 VAC, 50-60 Hz
Operating Temperature	0°C to +50°C
Dimensions	44.45 mm (H) x 482.6 mm (W)
