Spectracom SecureSync User Manual

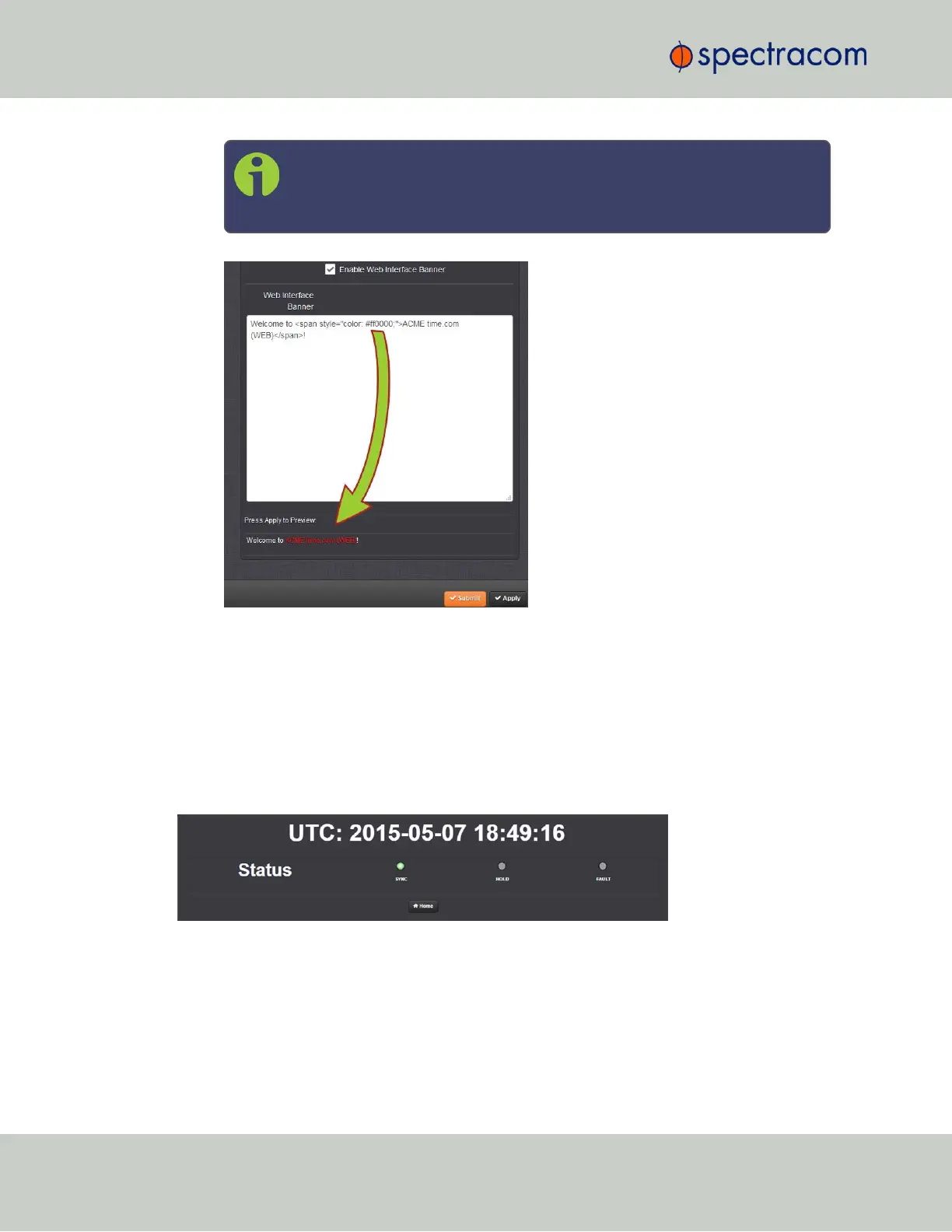

Note: Enabling and using the Web Interface Banner text box will allow you
to apply HTML formatting tags to your message (e.g., colors). Note that this
functionality is limited to browser-based Web UI access.
6.
To test your new banner, click Apply to see a preview at the bottom of the window. OR,
click Submit, and log out of the Web UI, and back in so as to see the banner on the
actual login page.
4.4.5 Show Clock
Instead of the Web UI, a large digital clock can be displayed on your computer screen. Next to
the system status, the screen clock will display the UTC time, and the SecureSync front panel
time.
To display the screen clock instead of the Web UI:
274
CHAPTER 4 • SecureSync User Reference Guide Rev. 26
4.4 Miscellanous Typical Configuration Tasks

Spectracom SecureSync Specifications

General

Model	SecureSync
Time Reference	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Disciplines	GNSS, IRIG, PTP, NTP, SyncE
Inputs	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Outputs	NTP, PTP, 1PPS, IRIG
Protocols	PTP, NTP, SNMP, SSH, HTTPS
Form Factor	1U Rack-mount
Redundancy	Optional redundant power supply
Security Features	Password protection, access control lists, SSH, HTTPS, SNMPv3, NTP authentication, PTP authentication
Power Supply	100-240 VAC, 50-60 Hz
Operating Temperature	0°C to +50°C
Dimensions	44.45 mm (H) x 482.6 mm (W)
