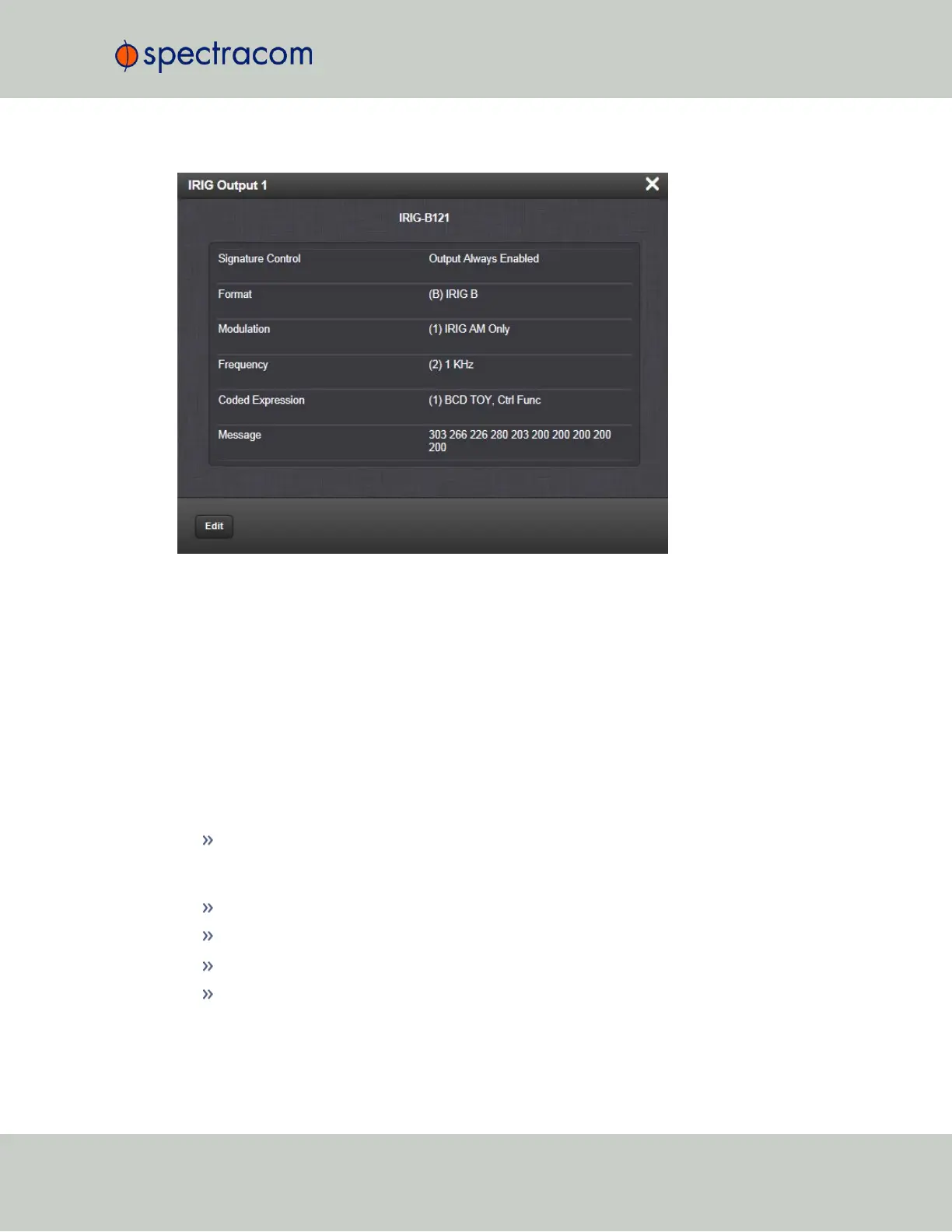

Descriptions of the settings shown in the Status window can be found "IRIG Output: Edit Win-
dow" on page411. For IRIG frequency and output specifications, see "IRIG Standards and Spe-
cifications" on page543.
5.2.5.2 IRIG In/Out [1204-05, -27]
The IRIG Input/Output option card provides SecureSync with one IRIG input and two IRIG out-
puts. The IRIG input can be used as the primary SecureSync time and 1PPS reference input for
synchronization. Or, it can also be used in conjunction with other primary references (such as
GNSS and NTP) to synchronize SecureSync. Available with BNC or Fiber Optic ST connectors.
IRIG In/Out, BNC [1204-05]: Input Specifications
Input Signal: IRIG A, B, G or NASA-36;
amplitude modulated sine wave (AM) OR pulse-width-coded (DCLS); user-selectable, with
automatic switching of load on input
AM Carrier: IRIGB 1000Hz, IRIGA 10kHz and G100kHz
AM Signal Level: 500mV to 10V
p-p
(modulated 2:1 to 6:1); 50 Ω load
DCLS Signal Level: TTL; 0.8V max., 2.3V min fail.; >10kΩ load
Connector: AM and DCLS: BNC female
SecureSync User Reference Guide 415
APPENDIX

Spectracom SecureSync Specifications

General

Model	SecureSync
Time Reference	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Disciplines	GNSS, IRIG, PTP, NTP, SyncE
Inputs	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Outputs	NTP, PTP, 1PPS, IRIG
Protocols	PTP, NTP, SNMP, SSH, HTTPS
Form Factor	1U Rack-mount
Redundancy	Optional redundant power supply
Security Features	Password protection, access control lists, SSH, HTTPS, SNMPv3, NTP authentication, PTP authentication
Power Supply	100-240 VAC, 50-60 Hz
Operating Temperature	0°C to +50°C
Dimensions	44.45 mm (H) x 482.6 mm (W)
