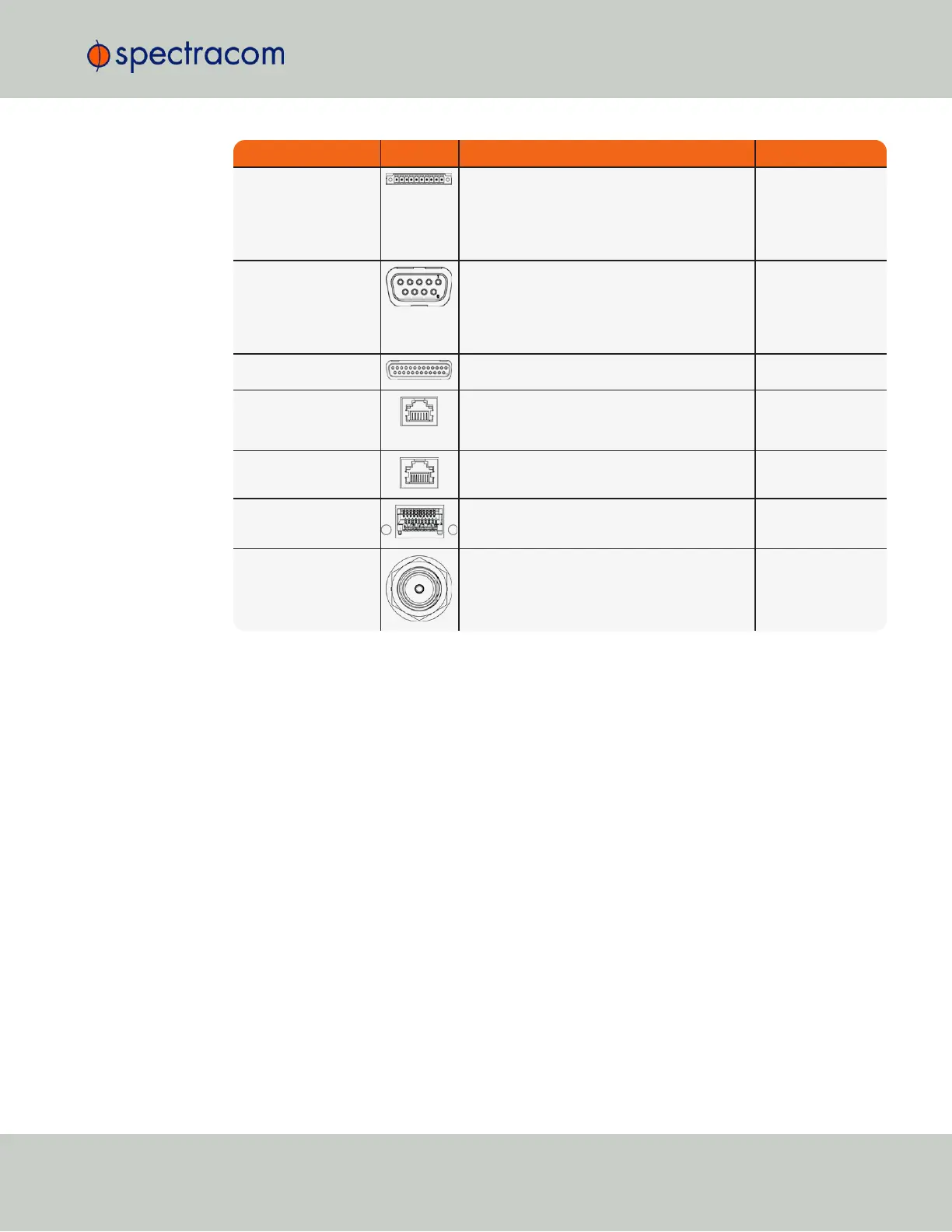

Connector Illustration Electr. Signals Timing signals
Terminal Block
[
Recommended mat-
ing connector:
Phoenix Contact, part
no. 1827787]
RS-485 1PPS, frequency,
ASCIItime code,
IRIG, HAVEQUICK,
Alarm, T1/E1
DB-9 RS-232, RS-485 ASCIItime code,
GPS NMEA, data
clocks,
CTCSS frequency,
1PPS, Alarm signal
DB-25 Differential TTL xV, RS-485 STANAG
RJ-12 RS-485 data clock, CTCSS
frequency,
1PPS, Alarm
RJ-45 Gb-Ethernet PTP timing signal
SFP Ethernet PTP timing signal
SMA RF, differential TTL xV, sine wave, programm.
square wave, AM sine wave, DCLS
1PPS, frequency
1.5 Option Cards
