Spectracom SecureSync User Manual

RS-485 on a pluggable terminal block
TTL square wave on BNC, or
Sine wave on BNC
Each output can be phase-offset between 0-360° in 0.1°-increments.
Programmable Frequency Card 1204-13 (Sine Wave, BNC): Specifications
Outputs: (4) independently programmable sine wave outputs
Signal Type: +13dBm
Wave Form: sine
Connector: BNC
Output Load Impedance: 50Ω
Output Pulse/Frequency Rates: 1Hz to 25MHz in 0.1-Hz increments
Accuracy: Function of input synchronization source (GPS, IRIG, 1PPS, etc.)
Synchronization: Output frequency locked to SecureSync disciplined 10MHz
Jitter, cycle-to-cycle: n/a
Phase Noise:
-120dBc/Hz @ 1kHz offset
-130dBc/Hz @ 10-kHz offset
-140dBc/Hz @ 100-kHz offset
Harmonics: <-30dBc
Spurious: <-60dBc
Maximum Number of Cards: 6
Ordering Information: 1204-13, Programmable Frequency Card, sine wave, BNC

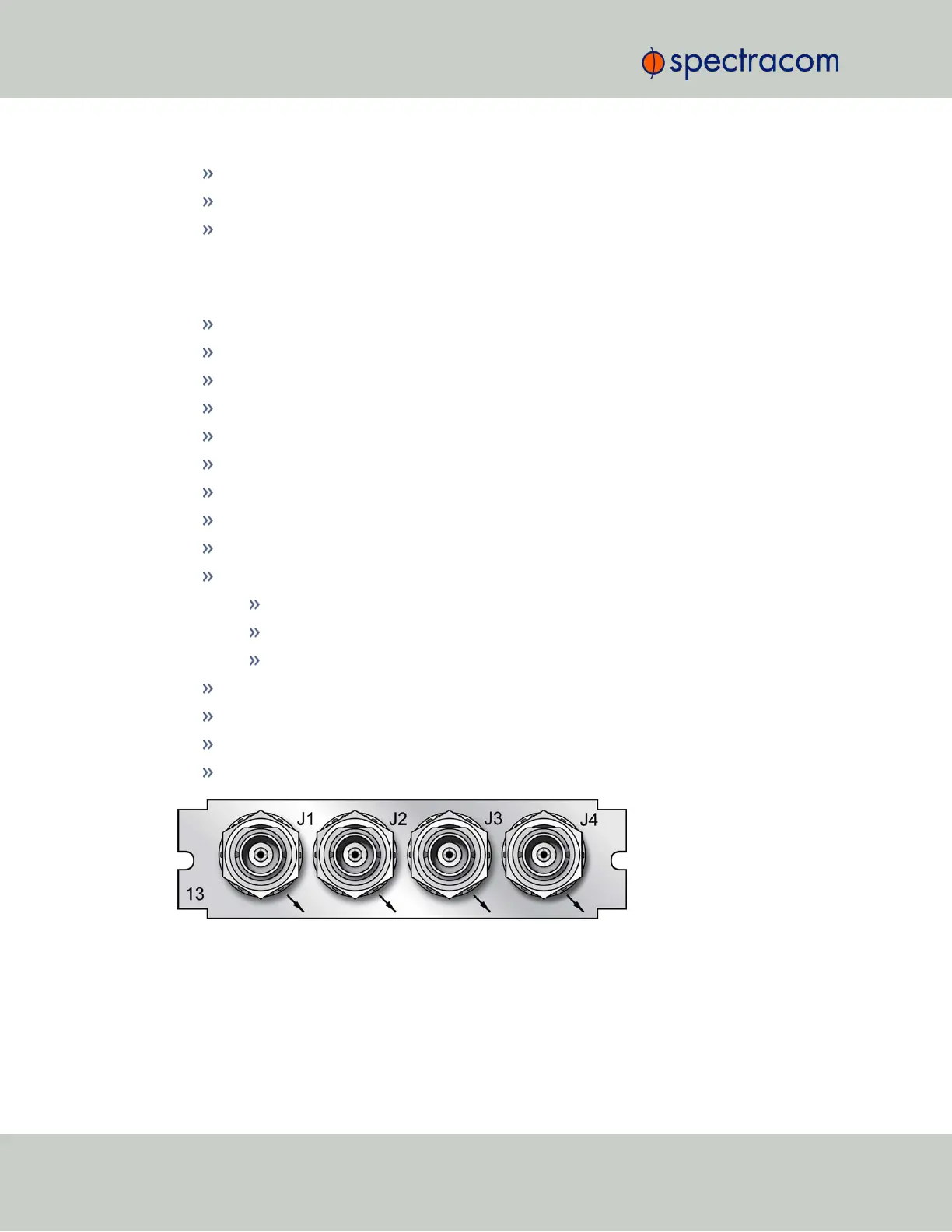

Figure 5-27: Model 1204-13 option card rear plate
388 SecureSync User Reference Guide
APPENDIX

Spectracom SecureSync Specifications

General

Model	SecureSync
Time Reference	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Disciplines	GNSS, IRIG, PTP, NTP, SyncE
Inputs	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Outputs	NTP, PTP, 1PPS, IRIG
Protocols	PTP, NTP, SNMP, SSH, HTTPS
Form Factor	1U Rack-mount
Redundancy	Optional redundant power supply
Security Features	Password protection, access control lists, SSH, HTTPS, SNMPv3, NTP authentication, PTP authentication
Power Supply	100-240 VAC, 50-60 Hz
Operating Temperature	0°C to +50°C
Dimensions	44.45 mm (H) x 482.6 mm (W)
