STANAG Out [1204-11, -25]: Specifications
Outputs: (2) STANAG Outputs, (1) 1PPS Output
Signal Type and Connector: 5V or 10V or RS-485 level (user selectable) for STANAG
and 1PPS output. DB-25 connector.
Formats Supported:
STANAG 4246 HAVE QUICK I
STANAG 4246 HAVE QUICK II
STANAG 4372 HAVE QUICK IIA
STANAG 4430 Extended HAVE QUICK
STANAG 4430 Standard Time Message (STM)
ICD-GPS-060A BCD Time Code
ICD-GPS-060A HAVE QUICK
DOD-STD-1399 BCD Time Code
Programmable Pulse Width (1PPS Output): 100ns to 500ms with 20ns resolution
Accuracy: ±50ns (1σ)
Maximum Number of Cards: 6
Ordering Information: 1204-11 (for non-isolated board); 1204-25 (for isolated board)

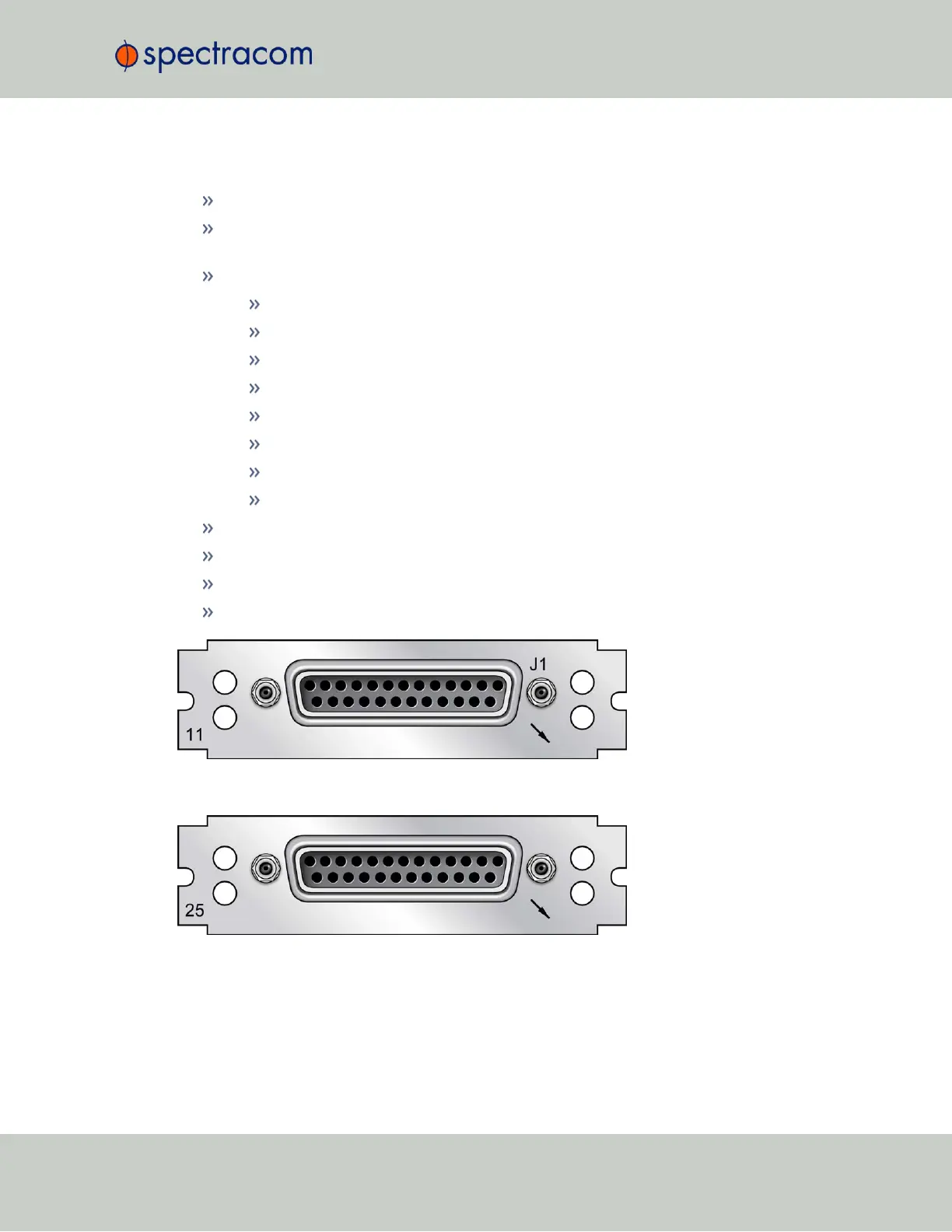

Figure 5-42: Model 1204-11 option card rear plate
Figure 5-43: Model 1204-25 option card rear plate
