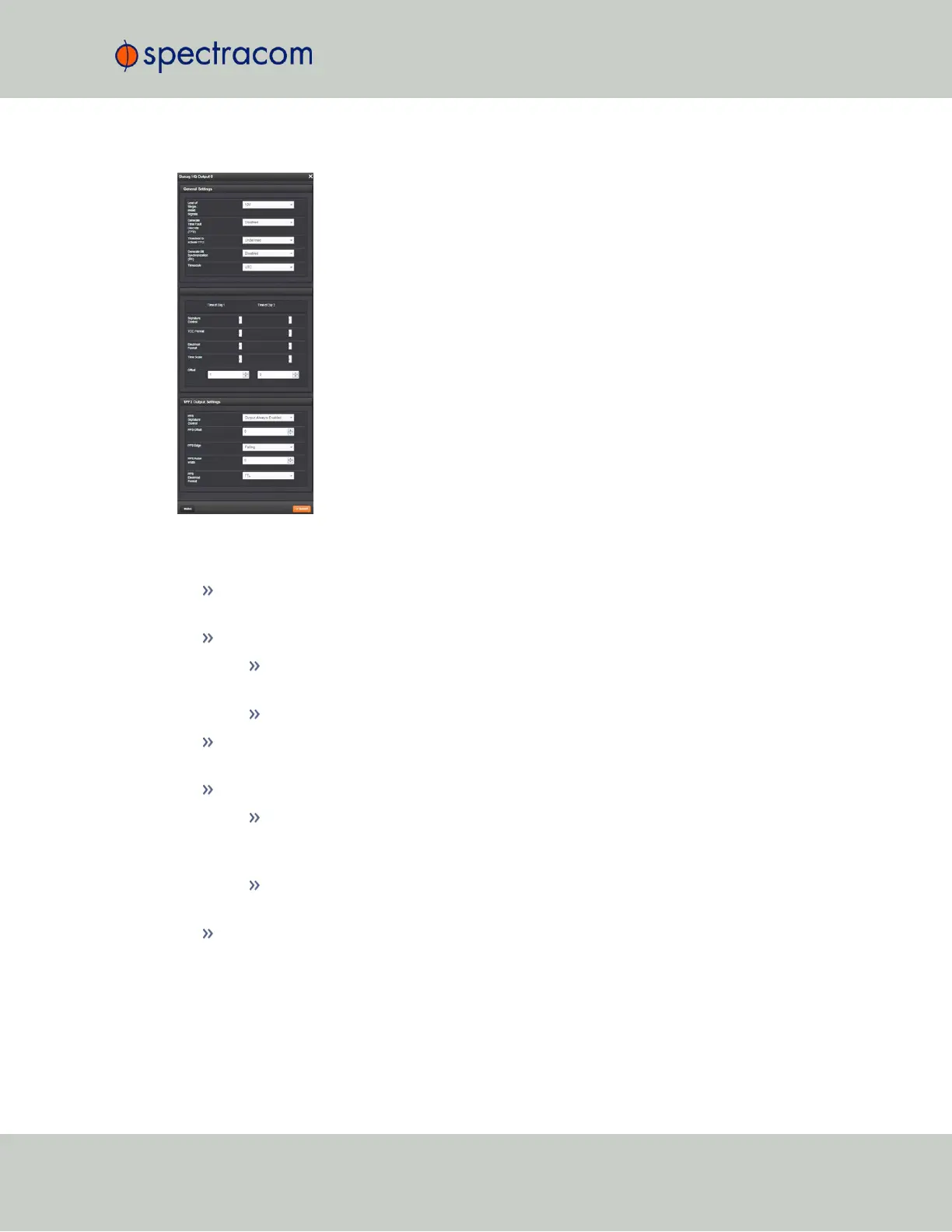

The Edit window allows the configuration of the following settings:
Under General Settings:
Level of Single-ended Signals: 10V or 5V can be selected for the TOD 1 and 1PPS Out-
put.
Generate Time Fault Discrete (TFD):
Enabled: The TFD signal uses the “Threshold to activate” value to provide the level
of TFD.
Disabled: The TFD signal is always valid.
Threshold to activate TFD: If the TFD is activated, the user can select the TFOM value
threshold. Below this value, the TFD is high, otherwise the TFD is low.
Generate Bit Synchronization (BS):
Enabled: The second STANAG signal (TOD 2) is used to send the BS (Bit Stream)
signal used with STANAG 4430-STM. When BS is active, the configuration of
TOD 2 is superseded and only used for BS.
Disabled: The second STANAG signal (TOD 2) can be used to send an inde-
pendent TOD.
Timescale: Used to select the time base for the incoming time code data. The entered
Timescale is used by the system to convert the time in the incoming data stream to UTC
time for use by the System Time. The available choices are:
