Spectracom SecureSync User Manual

Note: Spectracom recommends to use a dedicated DC power supply switch to
energize/de-energize SecureSync externally.
DC power connector pin-out

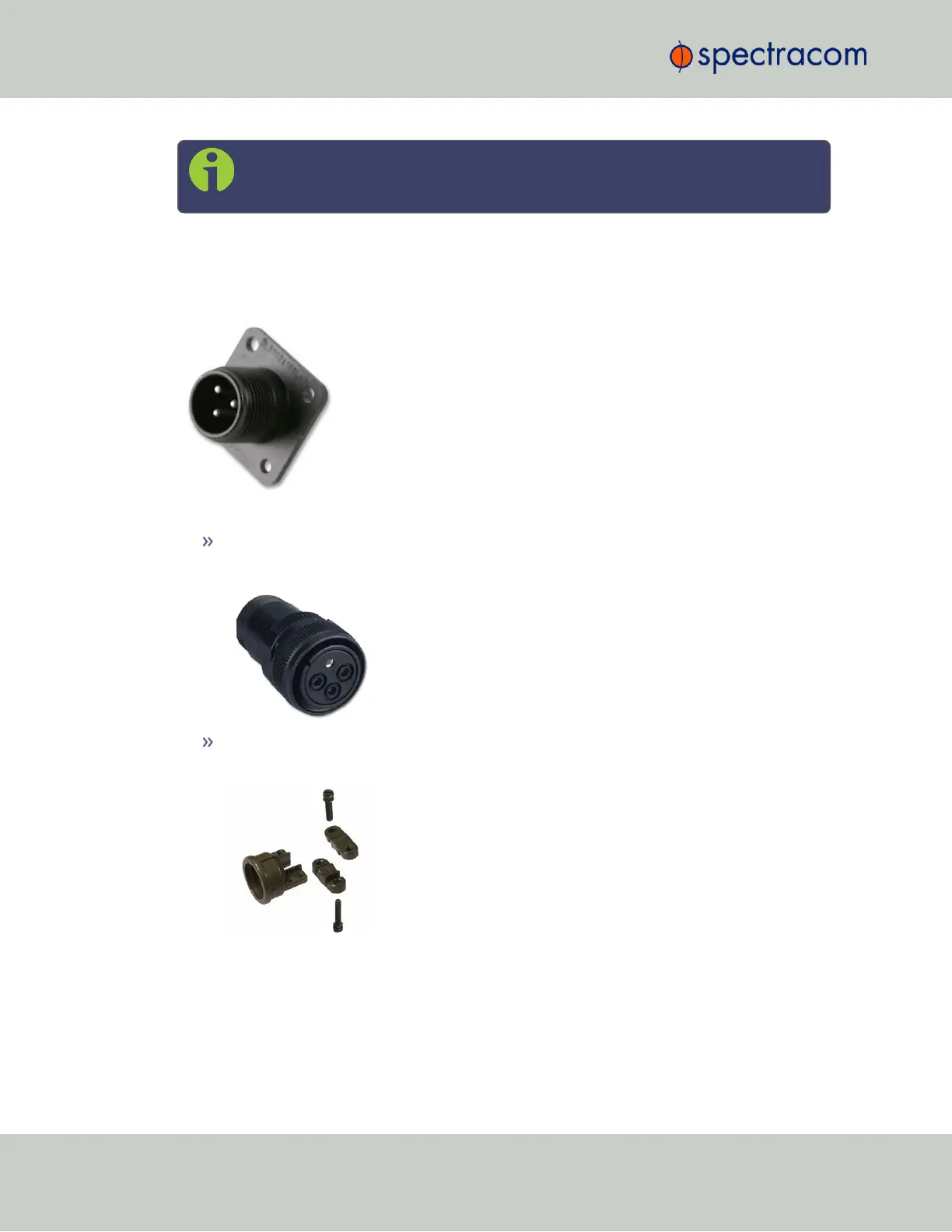

SecureSync units can be ordered in a DC version that includes the following DC plug on the
back panel: DC Plug, 3-pin, chassis mount: Amphenol P/N DL3102A10SL-3P
The DC ancillary kit includes, among other things, the following connector parts:
Mating DC Connector, circular, 3-pin, solder socket, 16AWG,13A,300V: Amphenol P/N
DL3106A10SL-3S; (Spectracom part no. P240R-0032-002F)
Cable Clamp, circular: Amphenol part no. 97-3057-1004(621); (Spectracom part no.
Spectracom part no. MP06R-0004-0001)
Pinout description, DC connector
Pin B goes to the most positive DC voltage of the DC source. For +12V or +24/48V this would
be the positive output from the DC source. For a -12V or -24/48V
DC
source this would be the
ground or return of the DC source.
40
CHAPTER 2 • SecureSync User Reference Guide Rev. 26
2.6 Connecting Supply Power

Spectracom SecureSync Specifications

General

Model	SecureSync
Time Reference	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Disciplines	GNSS, IRIG, PTP, NTP, SyncE
Inputs	GPS, GLONASS, BeiDou, Galileo, IRIG, NTP, PTP, 1PPS
Outputs	NTP, PTP, 1PPS, IRIG
Protocols	PTP, NTP, SNMP, SSH, HTTPS
Form Factor	1U Rack-mount
Redundancy	Optional redundant power supply
Security Features	Password protection, access control lists, SSH, HTTPS, SNMPv3, NTP authentication, PTP authentication
Power Supply	100-240 VAC, 50-60 Hz
Operating Temperature	0°C to +50°C
Dimensions	44.45 mm (H) x 482.6 mm (W)
